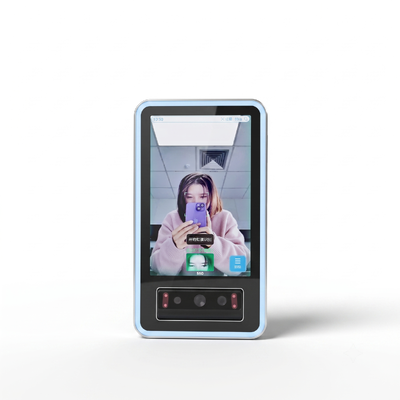

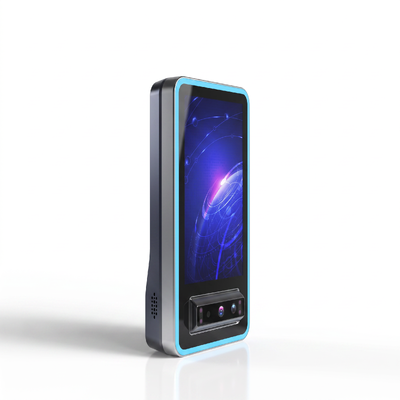

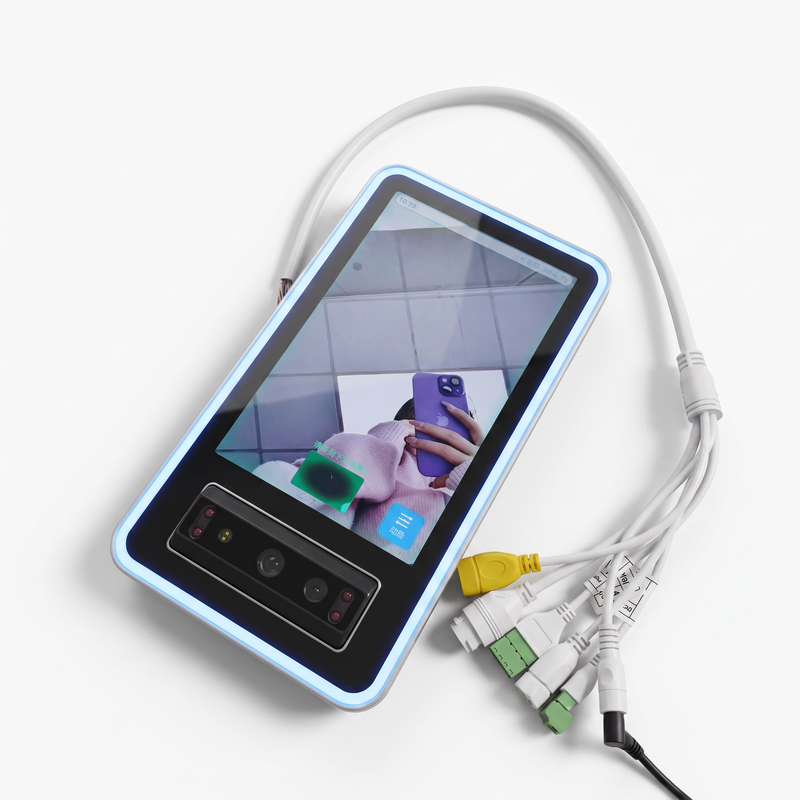

Dual Iris and Face Recognition Terminal

Name: Dual Iris and Face Recognition Terminal
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: JPID18A
Availability: InStock

Brand Name:	Shi Zun
Model Number:	JPID18A
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Operating System:

Android

Configuration:

2GB+32GB

Display Size:

8-Inch

Resolution:

800*1280

Luminance:

300cd/m2

Touch Screen:

Multi Point Capacitive Touch

Camera:

2 Million Physical Wide Dynamic

Internet:

Wired, Wireless

Record Storage:

Record Storage >1 Million

User Capacity:

50000

Recognitioon Distance:

0.5~3Meters

Recognition Range:

13cm Cover Height

Recognition Speed:

200~300ms

Misrecognition Rate:

One Out Of Ten Million

Liveness Detection:

Support

Recognition Environment:

Indoor, Outdoor, Night-time

Surface Material:

Tempered Glass Covered In Front

Body Technology:

Aluminum Alloy CNC Precision Carving Oxidation

Color:

Siliver

Recognition Accuracy:

99.98%

User Capcity:

50 Thousand Faces

Ethernet:

Support

WiFi:

Support(2.4G)

USB Interface:

USB2.0 Each

Relay Switch:

Support

Network Interface:

RJ45

Serial Communication:

RS-485

Wiegand Interface:

Support Wiegand 26, 34 Format

Power Supply:

Support DC12V-3A Input(Not Supporting PoE Power Supply)

Using Environment:

Indoor, Outdoor

Operation Temperature:

-25℃～+75℃

Operation Humidity:

5%~93%RH Non-condensable

Packaging Details:

8-Inch

Supply Ability:

100+pcs+day

Product Description

JP883 Desktop Iris Recognition 8-Inch Attendance and Access Control All-in-One Device including USB 2.0 and built-in Wi-Fi/Bluetooth modules

1. Iris Recognition Device Features:

The JP883 is an intelligent device integrating advanced iris recognition technology and attendance management features. With its desktop design, high-definition display, and powerful processing capabilities, it provides users with a secure and convenient solution for access control and attendance management.

2. Technical Features

High-Definition Display: Equipped with an 8-inch LCD touchscreen display with a resolution of 800×1280, delivering a clear visual experience and smooth touch operations.
Iris Recognition Technology: Features a 5 MP monocular iris camera with a recognition distance of 40–70 cm, offering fast and accurate identification.
Multiple Authentication Methods: Supports iris, card, fingerprint, facial recognition, and password-based authentication to meet diverse application needs.
Large Capacity Storage: Supports up to 10,000 iris templates, 100,000 facial templates, and 100,000 card records, accommodating large-scale personnel management.
Deep Learning Algorithm: Utilizes deep learning algorithms for rapid identification, with iris matching time <1 second per person and facial matching time <0.2 seconds per person.
Versatile Interfaces: Offers multiple interface options, including USB 2.0 and built-in Wi-Fi/Bluetooth modules, for seamless integration with external devices.

3. Application Advantages

Enhanced Security: Improves identity verification security with advanced biometric technology.
Increased Efficiency: Provides fast recognition speeds and high accuracy, enhancing operational efficiency.
Easy Management: Supports local and web-based management for personnel management, parameter configuration, event queries, and system maintenance.

4. Application Scenarios

Corporate Offices: Facilitates fast employee attendance and access control management.
High-Security Environments: Ideal for secure areas like R&D offices and laboratories.
Public Services: Suitable for hospitals, schools, and other public facilities, ensuring secure identity verification and attendance management.

This 8-inch desktop iris recognition attendance and access control all-in-one device combines advanced technology, powerful features, and flexible applications to deliver an efficient and secure solution for access control and attendance management.

Operating System:	Android	Configuration:	2GB+32GB
LCD Screen Size:	8 inches	Screen Resolution:	800 × 1280
Record Storage:	Record Storage >1 Million	Brightness:	300cd/m2
Camera:	2 Million Physical Wide Dynamic	Recognition Distance:	30-50cm
User Capacity:	50000	Ethernet:	Support
Audio:	3W × 2, voice broadcast for facial comparison results	Operating Parameters:	Power Supply: Voltage 12V, Current 3A Working Temperature: -30°C to 70°C Working Humidity: 10% to 90%
WiFi:	Support(2.4G)	USB Interface:	USB2.0 Each
Network Interface:	RJ45	Serial Communication:	RS-485
Wiegand Interface:	Support Wiegand 26, 34 Format	Power Supply:	Support DC12V-3A Input(Not Supporting PoE Power Supply)

Dual Iris and Face Recognition Terminal
