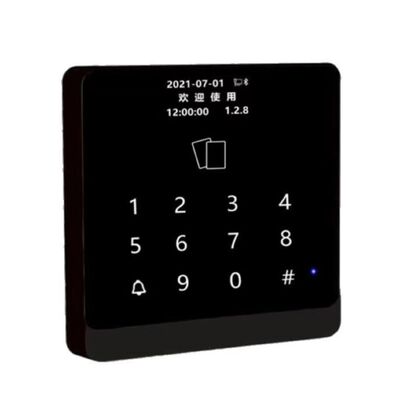

ASK861GK Card Reader Access Control Machine Recognition Support CPU Card, NFC, Touch Password

Name: ASK861GK Card Reader Access Control Machine Recognition Support CPU Card, NFC, Touch Password
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: ASK861GK
Availability: InStock

Brand Name:	Shi Zun
Model Number:	ASK861GK
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Keywords:

Xtensa 32-bit LX6 Dual-core Processor, With A Main Frequency Of 600 MIPS

Processor:

Support

Operating System:

FreeRTOS Embedded System

Recognition Support:

Bluetooth, IC Card, CPU Card, NFC, Touch Password

Protocol Support:

HTTP, MQTT, TCP/IP

External Interfaces:

Dry Contact Output, Exit Button Input, Door Magnet Input

4G Communication:

LTE Cat.1, TDD (B34/B38/B39/B40/B41) + FDD (B1/B3/B5/B8)

Interaction Methods:

Buzzer, OLED Display, LED Backlight

Input Voltage:

DC12V/500mA (Supports 5-30V)

Bluetooth Version:

BLE 4.1

User Storage:

60,000 Users

Waterproof Level:

IPX65

Tempered Glass Panel:

Operating Environment:

Temperature: -20°C To 70°C, Humidity 5%-95%

Product Dimensions:

86 X 86 X 13 Mm

Product Weight:

110g

Packaging Details:

86 x 86 x 13 mm

Supply Ability:

100+pcs+day

Highlight:

11.6 Inch Card Reader Access Control

Desktop Card Reader Access Control

Dual Screen punch card attendance system

Product Description

ASK861GK Card Reader Access Control Machine Recognition Support CPU Card, NFC, Touch Password

ASK861GK Card Reader Access Control Machine Description:

Network Options: 4G (optional) / Ethernet / WIFI
Access Methods: IC card / CPU card / ID card / Mobile NFC / Bluetooth
Communication Protocols: HTTP, MQTT, TCP/IP; Cloud Platform Management, Mini Program Remote Management
Features: Remote door unlocking, customizable anti-duplication options, support for customized voice playback, support for Secondary Development and Integration with Third-Party Platforms
Material: Tempered Glass Panel / ABS Casing / Waterproof

ASK861GK Card Reader Access Control Machine Parameters:

Processor	Xtensa 32-bit LX6 Dual-Core Processor, Main Frequency 600 MIPS
Operating System	FreeRTOS Embedded System
Identification Support	Bluetooth, IC card, CPU card, NFC, touch password
Protocol Support	HTTP, MQTT, TCP/IP
External Interfaces	Dry Contact Output, Exit Button Input, Door Sensor Input
4G Communication	LTE Cat.1, TDD (B34/B38/B39/B40/B41) + FDD (B1/B3/B5/B8)
Interaction Modes	Buzzer, OLED display, LED backlight
Input Voltage	DC 12V / 500mA (supports 5-30V)
Product Dimensions	86 x 86 x 13 mm
Product Weight	110g
Material	Tempered Glass Panel / ABS Casing / Waterproof

ASK861GK Card Reader Access Control Machine Recognition Support CPU Card, NFC, Touch Password 0
