78 Degree Full View Face Recognition Access Control 8 Inch Column Type Card Swipe R/L 1

Brand Name: Shi Zun
Model Number: JP188
MOQ: Negotiable
Price: Negotiable
Delivery Time: 10 working days
Payment Terms: T/T
Detail Information
Place of Origin:
China
Operating System:
RK 3568, Quad-core CPU, 2.0GHz, Android 11
Configuration:
2GB RAM, 16GB Storage
LCD Screen:
Size: 8 Inches Resolution: 800×1280 Viewing Angle: R/L 178° Wide Viewing Angle Brightness: 500cd
Touchscreen:
10-point Capacitive Touch
Camera:
Dual 2MP HD Lens, Wide Dynamic Range, Supports Liveness Detection, Shooting Range: 0.4–2m
Three-Color Fill Light:
Green, Red, White
Speaker:
8Ω, 3W
Working Parameters:
Voltage: 12V Current: 3A Operating Temperature: -20°C To 70°C Humidity: 5% To 90% RH
External Interfaces:
1× USB/OTG 1× RJ45 1× Relay Output 1× Power Supply 1× Wiegand 1× RS232/485
Surface Material:
Tempered Glass On The Front
Body Craftsmanship:
CNC-machined Aluminum Alloy With Anodized Finish
Installation Methods:
Pedestal Turnstile, Wall-mount, Desktop
Color:
Black Front Panel, Silver Frame, Silver Rear Casing
Packaging Details:
8 inches
Supply Ability:
100+pcs+day
Highlight:

Full View Face Recognition Access Control

,

78 Degree Face Recognition Access Control

,

78 Degree Facial Recognition Devices

Product Description

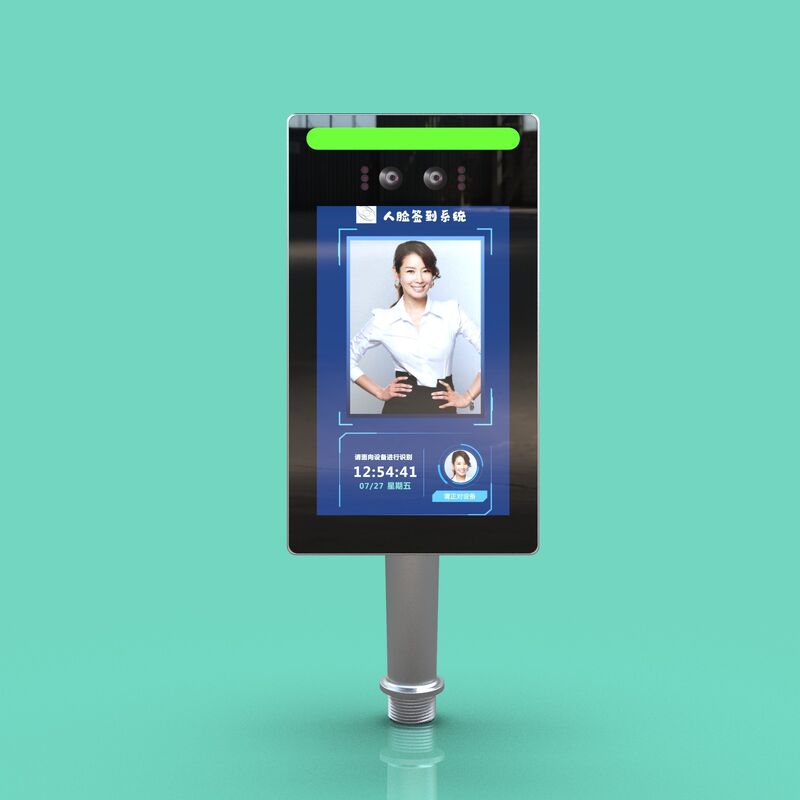

JP188 8-Inch Barrier-Mounted Facial Recognition Access Control All-in-One Machine Large Capacity Face Database



Product Overview:
The 8-inch facial recognition all-in-one machine is an intelligent terminal device that integrates advanced facial recognition technology, primarily used for efficient and accurate identity authentication and information management. With its high-speed recognition, superior security, precise accuracy, and rapid response capabilities, this device is widely applicable in various scenarios, including office buildings, residential communities, schools, and commercial areas.

Technical Features:

  1. HD Camera:
    Equipped with a 2MP dual-lens wide dynamic camera, it supports multimodal biometric recognition and wide dynamic liveness detection for precise and rapid facial recognition.
  2. Large Capacity Face Database:
    Supports storage for up to 50,000 face records, meeting the needs of large-scale venues.
  3. Industrial-Grade Motherboard:
    Built with a self-developed industrial-grade Android RK3568 chip to ensure stable 24/7 service.
  4. Multi-Touch Support:
    Features an 8-inch LED display with 10-point capacitive touch for smooth interactive experiences.
  5. Dust and Water Resistance:
    Designed with industrial-grade dust and water resistance to adapt to various environments.

Application Advantages:

  1. High Efficiency:
    Utilizes advanced facial recognition algorithms for quick passage and improved work efficiency.
  2. Enhanced Security:
    Biometric technology provides a higher level of security, preventing risks associated with password or fingerprint breaches.
  3. Contactless Operation:
    Users do not need to touch the device directly, enhancing convenience and hygiene.

Application Scenarios:

  • Smart Offices: Enables self-service check-in, attendance tracking, and access control to improve workplace efficiency.
  • Smart Security: Quickly identifies suspicious individuals in crowded places like airports and train stations, enhancing public safety.
  • Unmanned Retail: Supports payment verification and customer flow analysis in the unmanned retail industry, optimizing shopping experiences.
Operating System: RK 3568, Quad-core CPU, 2.0GHz, Android 11 Configuration: 2GB RAM, 16GB Storage
LCD Screen:
  • Size: 8 inches
  • Resolution: 800×1280
  • Viewing Angle: R/L 178° wide viewing angle
  • Brightness: 500cd
Touchscreen: 10-point capacitive touch
Camera: Dual 2MP HD lens, wide dynamic range, supports liveness detection, shooting range: 0.4–2m Three-Color Fill Light: Green, Red, White
Speaker: 8Ω, 3W Working Parameters:
  • Voltage: 12V
  • Current: 3A
  • Operating Temperature: -20°C to 70°C
  • Humidity: 5% to 90% RH
External Interfaces:
  • 1× USB/OTG
  • 1× RJ45
  • 1× Relay Output
  • 1× Power Supply
  • 1× Wiegand
  • 1× RS232/485
Surface Material: Tempered glass on the front
Installation Methods: Pedestal turnstile, wall-mount, desktop Color: Black front panel, silver frame, silver rear casing
