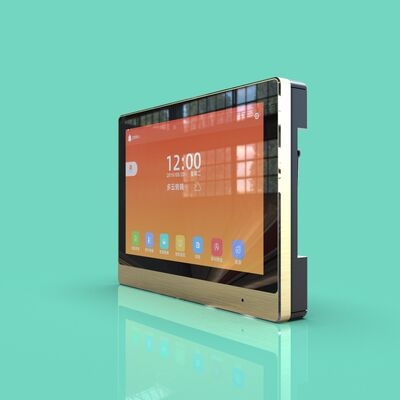

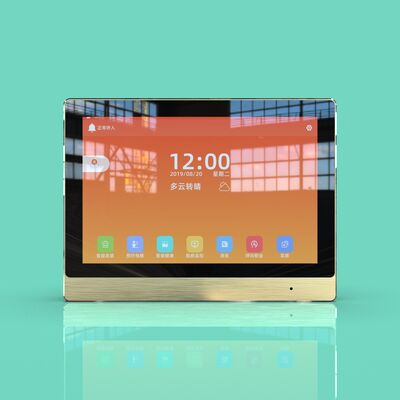

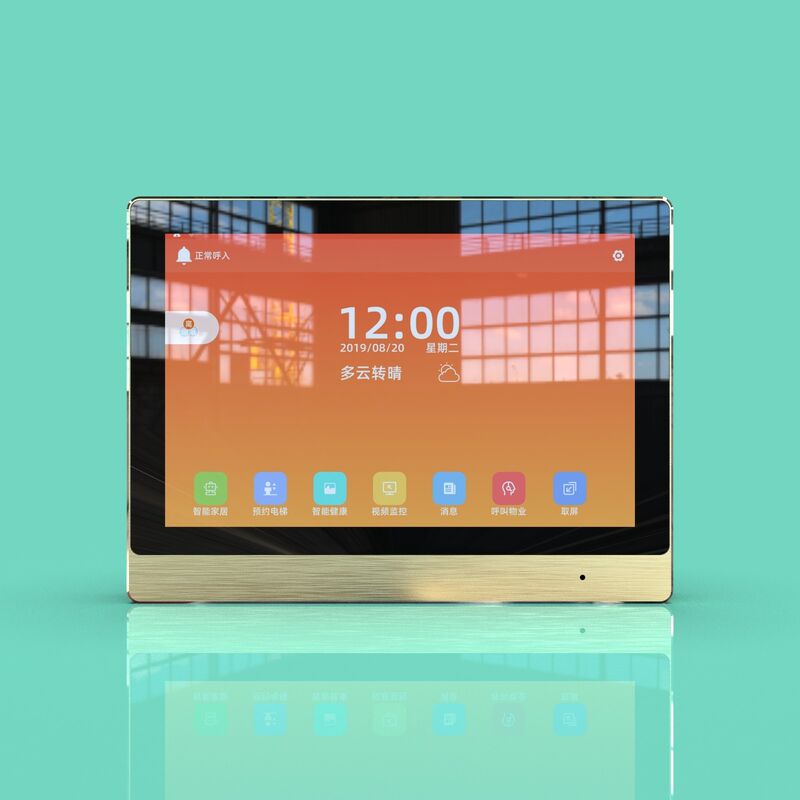

8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal

Name: 8 Inch Facial Recognition Biometric Time Attendance Machine Face Recognition Terminal
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: JP187
Availability: InStock

Brand Name:	Shi Zun
Model Number:	JP187
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Operating System:

Optional RK 3568/3288, Quad-core CPU, 2.0/1.8 GHz, Android 11/7.1

Configuration:

2GB RAM + 16GB Storage

LCD Screen Size:

8 Inches

Screen Resolution:

800 × 1280

Viewing Angle:

178° Full-view Angle (R/L)

Screen Brightness:

300 Cd/m²

Monocular Camera:

2MP HD Single-lens Camera With A Recognition Distance Of 0.4-2m (optional)

Touch Screen:

10-point Capacitive Touch

POE, RS485:

Optional

WiFi:

Supported

Speaker:

Operating Parameters:

Voltage: 12V Current: 3A Operating Temperature: -10°C To 60°C Humidity: 5% To 90% RH

Interfaces:

Phoenix Terminal Integrated Interface (7 PIN): NO (Relay Normally Open) COM (Relay Common) NC (Relay Normally Closed) B (RS485 Signal Line B) A (RS485 Signal Line A) GND (Ground) 12V (12V Power Positive) Type-C (5V) Type-OTG

Surface Material:

Tempered Glass Front Cover

Body Craftsmanship:

CNC Precision-machined Aluminum Alloy With Anodized Finish

Installation Method:

Wall-mounted

Color:

Black

Packaging Details:

8 inches

Supply Ability:

100+pcs+day

Highlight:

biometric time attendance machine

Face Recognition Terminal 8 Inch

Product Description

JP187 8-Inch Wall-Mounted Full-Metal Touch All-in-One Machine 10-Point Touch Full-Lamination Technology

Introduction:
This product is primarily designed for applications in industrial automation control, educational whiteboards, medical monitoring devices, and commercial information inquiry and display.

Features:

HD Display:
Equipped with an 8-inch IPS panel with a resolution of 1280 × 800, offering a 178° ultra-wide viewing angle for clear visual experience from all angles.
10-Point Touch:
Supports 10-point capacitive touch for sensitive and accurate touch operations, suitable for various interactive needs.
Full-Lamination Technology:
Uses full-lamination technology to reduce air gaps, enhancing display clarity and durability, while also providing dust-proof functionality.
Tempered Glass Panel:
Features a tempered glass panel with a hardness of 6H, offering superior protection and durability.
High Reliability:
Industrial-grade design ensures adaptability to harsh environments for stable long-term operation.
Efficient Heat Dissipation Design:
The full aluminum alloy casing utilizes a fully passive heat dissipation system, eliminating the need for fans and reducing noise.
Data Management:
Built-in data storage functionality records transaction details, facilitating financial reconciliation and management.
Operating Temperature Range:
-25°C to +75°C

Application Scenarios:

Industrial Automation Control
Educational Whiteboards
Medical Monitoring Devices
Commercial Information Inquiry and Display

Operating System:	IOptional RK 3568/3288, Quad-core CPU, 2.0/1.8 GHz, Android 11/7.1 versions	Configuration:	2GB RAM + 16GB Storage
LCD Screen Size:	8 inches	Screen Resolution:	800 x 1280
Viewing Angle:	178° full-view angle (R/L)	Working parameters	Voltage: 12V Current: 3A Operating Temperature: -10°C to 60°C Humidity: 5% to 90% RH
Monocular Camera:	2MP HD monocular camera, recognition distance: 0.4-2m (optional)	Brightness:	300 cd/m²
Speaker:	3W	Voltage:	12V
Current:	3A	External Interfaces:	Phoenix Terminal Integrated Interface (7 PIN): NO (Relay Normally Open) COM (Relay Common Terminal) NC (Relay Normally Closed) B (RS485 Signal Wire B) A (RS485 Signal Wire A) GND (Ground) 12V (12V Power Supply Positive Terminal) Type-C (5V) Type-A (OTG)
Installation Methods:	Wall-mounted	Color:	Black
