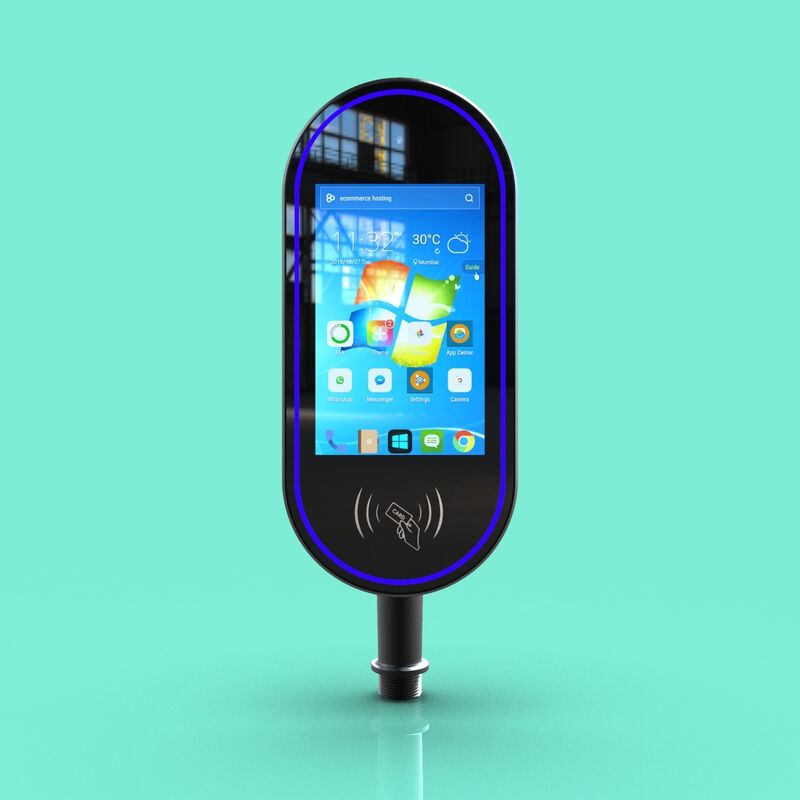

7 Inch Column Type Face Recognition Terminal IP65 Waterproof

Brand Name: Shi Zun
Model Number: JP182
MOQ: Negotiable
Price: Negotiable
Delivery Time: 10 working days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Operating System:
RK1109, Dual-core A7, 1.5GHz, Linux Buildroot + Qt5 System
Configuration:
1GB RAM + 16GB Storage
LCD Screen Size:
8 Inches
Screen Resolution:
800 × 1280
Field Of View:
R/L 178-degree Full Viewing Angle
Brightness:
500cd
Camera:
2MP Visible Light And Infrared Dual Cameras With IR Fill Light, Supports Live Body Detection, Detection Distance: 0.4–1.5m
Card Reader:
Optional IC/ID/Second-Generation ID Card Reader; Reading Time <1 Second; Reading Distance: 0–30 Mm
Speaker:
8Ω 3W
Tri-Color Indicator Light:
Green, Red, White
Working Parameters:
Power Supply: 12V DC, Current 3A Operating Temperature: -20℃ To +70℃ Humidity: ≤90% RH
External Interfaces:
1 USB/OTG Port 1 RJ45 Wired Network Port 1 Power Input Port 1 Relay Output Port 1 RS232/485 Port
Appearance:
Material: Front Panel Made Of Tempered Glass Craftsmanship: Aerospace-grade Aluminum CNC Integrated Molding Installation Method: Desktop/Wall-mounted Color: Black + Silver
Protection Level:
IP65 Waterproof
Packaging Details:
8 inches
Supply Ability:
100+pcs+day
Highlight:

Waterproof Face Recognition Terminal

,

IP65 Face Recognition Terminal

,

7 Inch face recognition temperature device

Product Description

JP182 8-Inch Pedestrian Turnstile Linux System Facial Recognition and Card Access Control Device



Description:

This product is an 8-inch attendance and access control all-in-one machine, mainly used for facial recognition attendance and access control in factories, enterprises, and organizations. It can operate as a standalone device or in a networked configuration.



Features:

  1. Android 11 System
  2. 2GB RAM and 16GB Storage
  3. Fast and Accurate Recognition: Facial recognition completed in as fast as 0.2 seconds, with an accuracy rate higher than 99%. Supports recognition from 0.5m to 3.0m.
  4. Aerospace-Grade Aluminum Alloy Body: High protection, high strength, durable, and long-lasting.
  5. Easy Installation: Plug-and-play design for convenient use; supports both wired and wireless connections.
  6. Large Recognition Capacity: Supports a local personnel database of up to 50,000 individuals.
  7. Protection Rating: IP65 dustproof and waterproof.
  8. Wide Operating Temperature Range: -25℃ to +75℃.
  9. Standardized Interfaces: Supports Wiegand protocol for access control systems and provides API integration with third-party systems.
  10. Automatic Exposure Adjustment: Adapts to various extreme lighting conditions, such as strong light, low light, and backlight, for precise recognition.
  11. Three Indicator Lights: White, green, and blue light indicators.





Parameter:

Operating System: RK1109, Dual-core A7, 1.5GHz, Linux Buildroot + Qt5 system Configuration: 1GB RAM + 16GB storage
LCD Screen Size: 8 inches Screen Resolution: 800 × 1280
Camera: 2MP visible light and infrared dual cameras with IR fill light, supports live body detection, detection distance: 0.4–1.5m Speaker: 8Ω 3W
Power Supply: 12V DC, current 3A Operating Temperature: -20℃ to +70℃
External Interfaces:
  • 1 USB/OTG port
  • 1 RJ45 wired network port
  • 1 power input port
  • 1 relay output port
  • 1 RS232/485 port
 Installation Method: Desktop/Wall-mounted



7 Inch Column Type Face Recognition Terminal IP65 Waterproof 07 Inch Column Type Face Recognition Terminal IP65 Waterproof 17 Inch Column Type Face Recognition Terminal IP65 Waterproof 27 Inch Column Type Face Recognition Terminal IP65 Waterproof 37 Inch Column Type Face Recognition Terminal IP65 Waterproof 47 Inch Column Type Face Recognition Terminal IP65 Waterproof 57 Inch Column Type Face Recognition Terminal IP65 Waterproof 67 Inch Column Type Face Recognition Terminal IP65 Waterproof 77 Inch Column Type Face Recognition Terminal IP65 Waterproof 8
