Dual-Lens 2MP WDR Camera Module JP-02H205

Product Overview

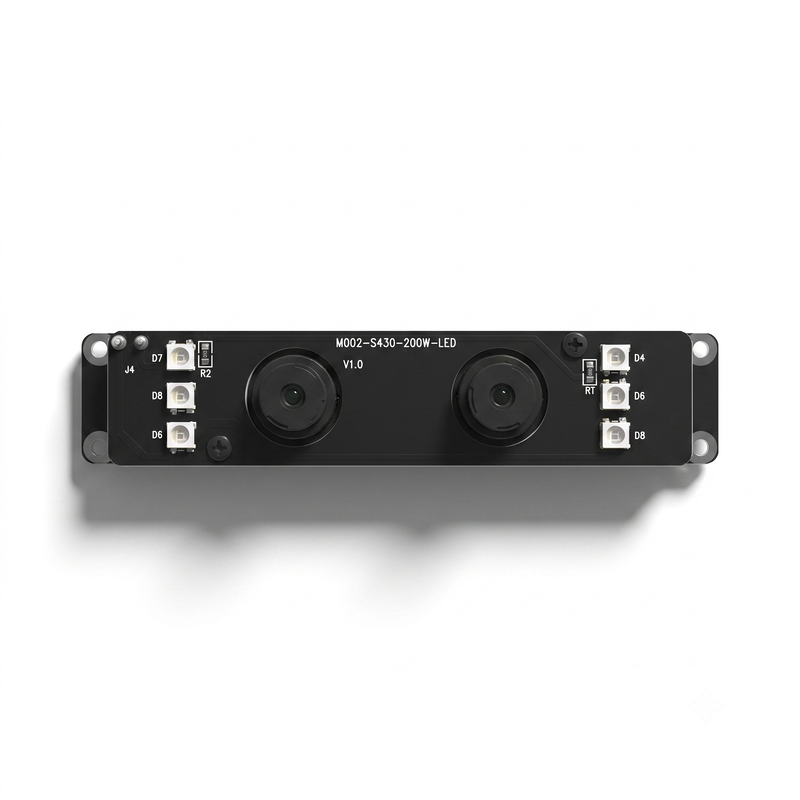

     The JP-02H205 Dual-Lens 2MP WDR Camera Module is a high-performance USB camera solution featuring two independent 2MP CMOS sensors with 1080P resolution. The module combines a 650nm IR-cut visible light lens and an 850nm infrared lens, enabling both daytime color imaging and nighttime IR capture in a single compact design. With 105dB Wide Dynamic Range (WDR) , the module delivers clear images in challenging lighting conditions — from bright backlight to low-light environments. The module is fully compliant with USB Video Class (UVC) and USB Audio Class standards, ensuring plug-and-play driver-free connectivity with Windows, Android, and other operating systems via USB 2.0. Supporting automatic exposure, white balance, flicker correction, gamma correction, and edge enhancement, the JP-02H205 is ideal for security surveillance, access control, video conferencing, and intelligent recognition applications.

Key Advantages

• Dual-Lens Design for Day/Night Operation: Features two independent 2MP CMOS sensors with 650nm (visible light) and 850nm (infrared) lenses — enabling clear color imaging during daylight and high-quality IR capture at night, all in one compact module.

• 105dB Wide Dynamic Range: Delivers exceptional performance in challenging lighting conditions — from bright backlight scenes to high-contrast environments — ensuring clear images where standard cameras would produce silhouettes or washed-out details.

• Dual-Stream Output: Supports simultaneous output from both visible and IR sensors, enabling real-time switching between day and night modes or multi-spectral analysis for intelligent recognition applications.

• UVC Plug-and-Play Compliance: Fully USB Video Class compliant, supporting driver-free connectivity with Windows, Android, and other operating systems via standard USB 2.0 interface — no complex driver development required.

• Auto Image Enhancement: Built-in automatic exposure, white balance, flicker correction, gamma correction, and edge enhancement ensure optimal image quality without manual tuning — delivering crisp, clear images in varying conditions.

• High Frame Rate Support: Delivers up to 1080P @ 30fps video capture — smooth, fluid video for surveillance and monitoring applications.

Why Choose This Module?

• True Day/Night Capability in a Single Module: Most camera modules are either visible-light only or IR-only. The JP-02H205 combines both in one compact 80mm × 16mm module — simplifying integration for surveillance systems, access control terminals, and intelligent recognition devices that require 24/7 operation.

• WDR That Actually Works: Wide Dynamic Range is often just a spec. The JP-02H205's 105dB WDR delivers real-world performance — capturing clear images in challenging lighting situations like entranceways with bright sunlight behind, dimly lit indoor environments, and high-contrast scenes where standard cameras fail.

• Industrial-Grade Reliability: With an operating temperature range of -20°C to +70°C and low power consumption (200mA without IR LED), the JP-02H205 is engineered for continuous operation in demanding environments — from outdoor surveillance to industrial inspection.

• Compact Size for Flexible Integration: At just 80mm × 16mm, the module fits easily into space-constrained designs — access control panels, kiosks, video intercom systems, and compact security cameras.

• Universal Compatibility: UVC compliance means the JP-02H205 works with virtually any platform — Windows, Android, Linux. No driver development, no platform-specific compatibility issues, and faster time-to-market.
