Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Face Recognition Camera Module
Created with Pixso. 110 dB 3.5 mm Face Recognition Camera Module With 2.0 F/No For Industrial Vision Systems
name
  • name
  • name
  • name

110 dB 3.5 mm Face Recognition Camera Module With 2.0 F/No For Industrial Vision Systems

Brand Name: Shi Zun
Model Number: HK5M-H170
MOQ: Negotiable
Price: Negotiable
Delivery Time: 10 working days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Photosensitive Chip:
CMOS1/2.5"
Pixel Size:
2.2μmx 2.2μm
SNR Max:
39 DB
Max Dynamic Range:
110 DB
Minimum Illumination:
0.1Lux At F12
F/No:
2.0
EFL:
3.5mm
FOV:
90°
IR:
650±10nm
Lens Construction:
2G4P+IR
Maximum Resolution And Frame Rate:
2592* 1944 (30ps)
Other Optional Resolution Ratio:
640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1024* 768(30fps), 1920*1080(30fps), 1600*1200(30ps), 2048* 1536(30fps), 2560* 1440(30fps)
Support Format:
YUV / MJPG
USB Power Supply Voltage:
5V±5%
Connect The Interface:
1* USB-5pin-1.0mm
Interface Speed:
480mb/s
Operating Systemrequest:
WinXP, Win7, Linux Or Vista And Android4.1
Power Consumption:
Regular Work: 1.4W
Storage Temperature:
-10°C To 50°C
Working Temperature:
-20°C To+70°
Structure Size:
92mmx 18mmx 17.9mm
Packaging Details:
92mmx 18mmx 17.9mm
Supply Ability:
100+pcs+day
Product Description

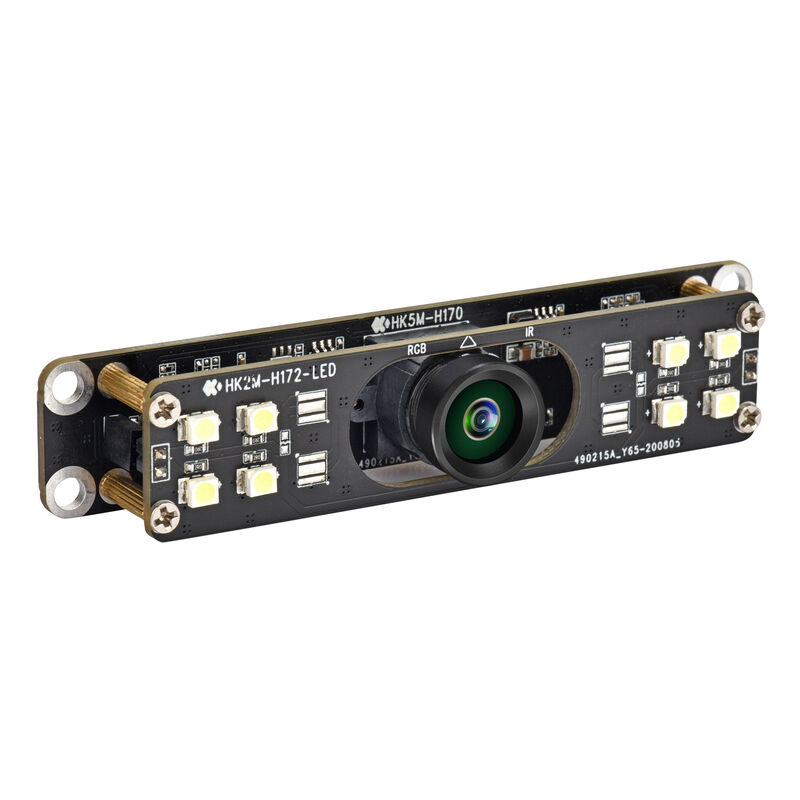

HK5M-H170 Wide Dynamic Range 5-Megapixel High Definition Camera Module USB Driver-Free Industrial Module



HK5M-H170 Wide Dynamic Range Camera Module Features:

  1. USB 2.0 Interface
  2. 5-Megapixel Resolution High Definition Camera
  3. Compact and Exquisite Appearance
  4. 5-Megapixel High Definition Imagery for True and Delicate Visuals
  5. Anti-drag, Low Noise, Clearer Imaging
  6. USB 5M Wide Dynamic Range

HK5M-H170​ Wide Dynamic Range Camera Module Parameter:

Connect the interface: 1* USB-5pin-1.0mm
Interface speed: 480mb/s
Maximum resolution and frame rate: 2592* 1944 (30ps)
Other optional resolution ratio: 640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1920*1080(30fps), 1600*1200(30ps), 2048* 1536(30fps), 2560* 1440(30fps)
Support format: YUV/ MJPG
Max Dynamic Range  110dB
F/No: 2.0
EFL: 3.0mm
FOV: 90°
Lens Construction: 2G4P+IR
Power Consumption: Regular work: 1.4W
Operating systemrequest: WinXP, Win7, Linux or Vista and android4.1



110 dB 3.5 mm Face Recognition Camera Module With 2.0 F/No For Industrial Vision Systems 0110 dB 3.5 mm Face Recognition Camera Module With 2.0 F/No For Industrial Vision Systems 1110 dB 3.5 mm Face Recognition Camera Module With 2.0 F/No For Industrial Vision Systems 2110 dB 3.5 mm Face Recognition Camera Module With 2.0 F/No For Industrial Vision Systems 3
