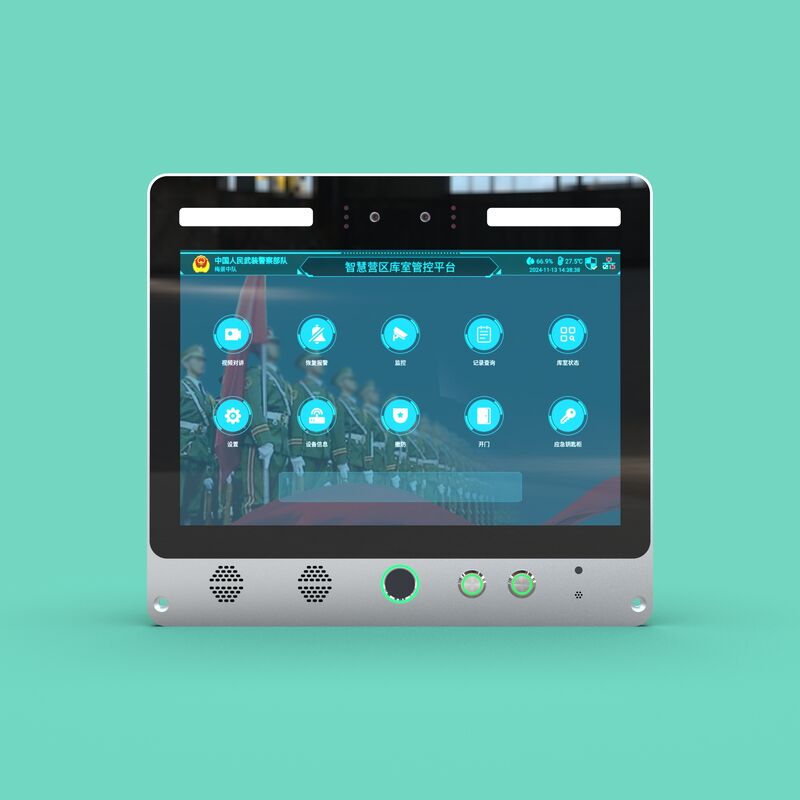

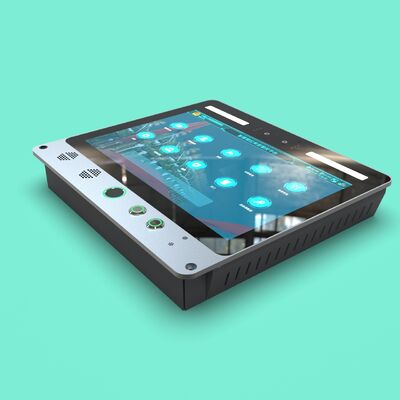

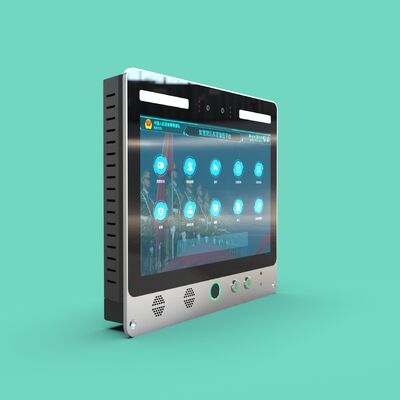

Wall-Mount Finger Vein Recognition Terminal with Multi-Factor Authentication

Model Number:	012
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Operating System:

Recommended Android 11, Optional LinuxBuildroot/Debian10/Ubuntu-18.04

Configure:

2GB RAM + 16GB Storage Memory, With A Self-ejecting TF Card Slot Supporting Up To 128GB TF Card

CPU:

RK3568 Quad-core 64-bit Cortex-A55 Architecture, Built On High-end 22nm Process, Up To 2.0GHz

GPU:

ARM Mali-G52EE, Supports OpenGLES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, With High-performance 2D Acceleration Hardware

NPU:

Supports 1 TOPS Processing Power

Network:

10/100/1000M Adaptive Ethernet RJ45 Port, Built-in High-performance SDIO Interface Wi-Fi Module, Supports IEEE 802.11 B/g/n/ac, Default Single-frequency 2.4GHz

Bluetooth:

Built-in High-performance Serial BT Module, Supports V2.1+EDR/BT V3.0/BT V3.0+HS/BT V4.0

Hard Drive:

Standard SATA 3.0 Hard Drive Interface (with Power Header)

CAN Bus:

2 CAN Header Interfaces, Expandable For CAN Bus Peripherals

POE Power Supply:

Supported

Amplifier Output:

8Ω, 6W Dual-channel Audio Amplifier Output

MIC Input:

Separate MIC Input (header Interface)

Touch Screen:

10-point Capacitive Touch Screen

LCD Screen Size:

10.1 Inches

Screen Resolution:

1280×800

Viewing Angle:

L/R 178° Full Viewing Angle

Brightness:

500 Cd/m²

Camera:

2MP Wide Dynamic, Anti-backlight, Shooting Distance 0.5m To 2m

Record Storage:

Local Storage For Over 400,000 Facial Image Records

Speakers:

3W×2

Operating Parameters:

Voltage: 12V, Current: 3A, Operating Temperature: -20°C To 70°C, Humidity: 20%-90%

External Interfaces:

2 USB 3.0 Ports, 1 RJ45 Port, 1 DC Socket, 1 HDMI Output, 1 Relay Port, 4 TTL/232 Ports, 1 RS485 Port, 1 TF Card Slot, 1 Headset Port

Optional:

Capacitive Fingerprint Module, Finger Vein Module

Surface Material:

Front Tempered Glass

Body Craftsmanship:

Aluminum Alloy CNC Precision, Sandblasting Oxidation, Sheet Metal Black Sand-textured Powder Coating

Installation Type:

Wall-mounted

Access Control Integration:

Can Be Connected To Access Control Systems For Door Unlocking Upon Successful Facial Recognition

Network Upload:

Works With Server-side Software To Upload And Aggregate Comparison Data From Multiple Terminals

Packaging Details:

10.1-inch

Supply Ability:

100+pcs+day

Product Description

1:
Wall-Mount Finger Vein Recognition Terminal with Multi-Factor Authentication
