| Model Number: | Fi-1109 Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
Fi-1109 Smart Face Recognition Access Control Motherboard
The Fi-1109 Smart Face Recognition Access Control Motherboard is purpose-built for high-performance biometric authentication, powered by the Rockchip RV1109 dual-core Cortex-A7 processor running at up to 1.5GHz. What sets this board apart is its built-in 1.2 TOPS NPU, enabling efficient on-device AI inference for face recognition without cloud dependency. The board supports up to 3 cameras simultaneously with a 5MP ISP featuring 3-frame HDR — ensuring reliable face capture in challenging lighting conditions. Dedicated interfaces include dual MIPI camera ports, SPDT door control relay (up to 2A), Wiegand input/output, 3× LED driver interfaces, a PWM fill-light port, and a security tamper-proof interface. The Fi-1109 also features 500万 H.264/H.265 hardware video encoding and decoding, dual 8Ω 6W audio amplifiers for clear voice prompts, and wide-temperature operation from -20°C to 70°C. With pre-integrated Megvii face recognition authorization and Linux Buildroot+Qt5 support, the Fi-1109 delivers a complete, production-ready solution for access control OEMs.
Built-in 1.2 TOPS NPU for On-Device AI: The integrated NPU enables efficient face detection and recognition directly on the board — no cloud dependency, no external accelerator, ultra-low latency for real-time authentication.

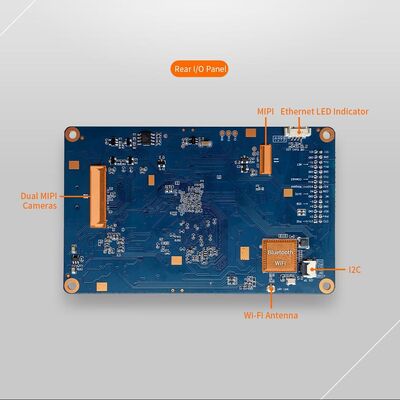

Multi-Camera Support with HDR: Supports up to 3 cameras simultaneously with 5MP ISP and 3-frame HDR — capture high-quality images even in challenging backlight or low-light conditions. Dual MIPI-CSI ports enable flexible camera configurations.
Hardware Video Encode/Decode: H.264/H.265 hardware encoding and decoding at 500万 resolution — compress and stream video efficiently for remote monitoring or cloud upload without burdening the CPU.

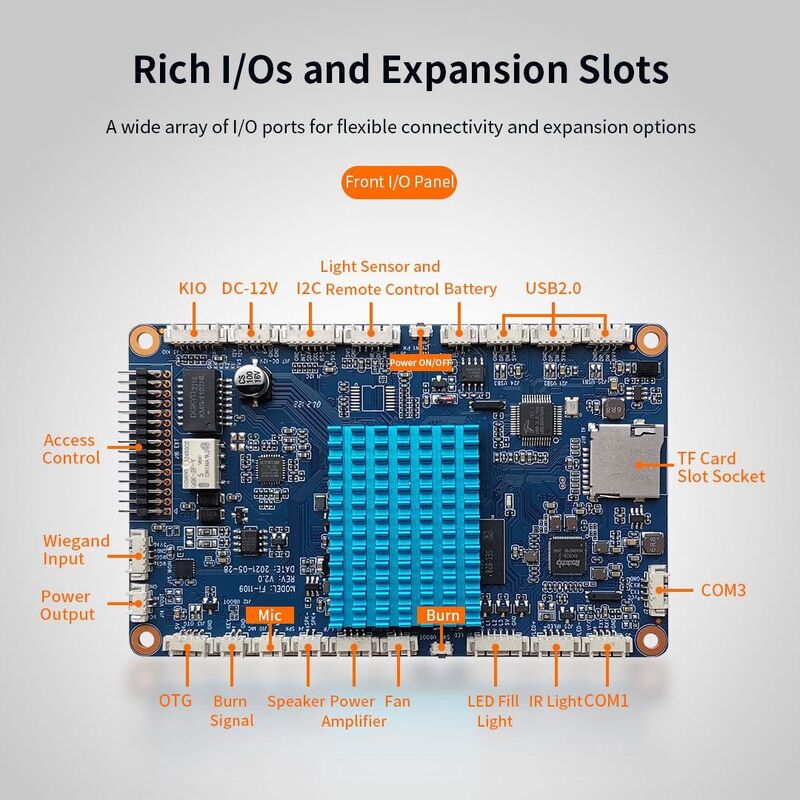

Comprehensive Access Control Interfaces: SPDT relay (up to 2A) for door lock control, Wiegand input/output for card readers, 3× LED driver interfaces for multi-color status indicators, PWM fill-light port for night capture, and a security tamper-proof interface for anti-tamper protection.
Pre-Integrated Face Recognition Authorization: Ships with Megvii face chip authorization — reduce development time and licensing headaches with a ready-to-deploy solution.
Wide-Temperature Reliability: -20°C to 70°C operating temperature range ensures stable operation in outdoor environments, unheated entryways, and demanding industrial settings.
NPU-Powered Face Recognition, No Cloud Needed: The 1.2 TOPS NPU delivers efficient on-device AI inference — face recognition happens locally, ensuring privacy, low latency, and uninterrupted operation even without network connectivity.
3-Camera Ready for Advanced Applications: Support for up to 3 simultaneous cameras enables multi-angle capture, wide-area coverage, or redundancy — ideal for high-security environments requiring comprehensive monitoring.
HDR Imaging for Real-World Conditions: 3-frame HDR ensures reliable face capture in backlit, low-light, or high-contrast environments — no more "washed out" faces in sunlight or dark silhouettes in shadows.
Production-Ready with Megvii Integration: Pre-integrated face recognition authorization means you don't need to negotiate licensing or implement complex algorithms — get to market faster with a proven, trusted solution.
Security-Focused Hardware Design: Tamper-proof interface + wide-temperature operation + comprehensive access control interfaces — the Fi-1109 is engineered for secure, reliable deployment in real-world access control environments.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
