| Model Number: | 010 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
Product Overview:

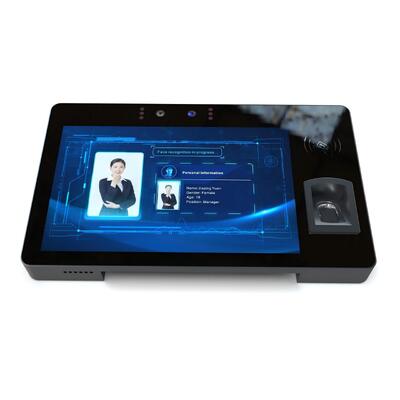

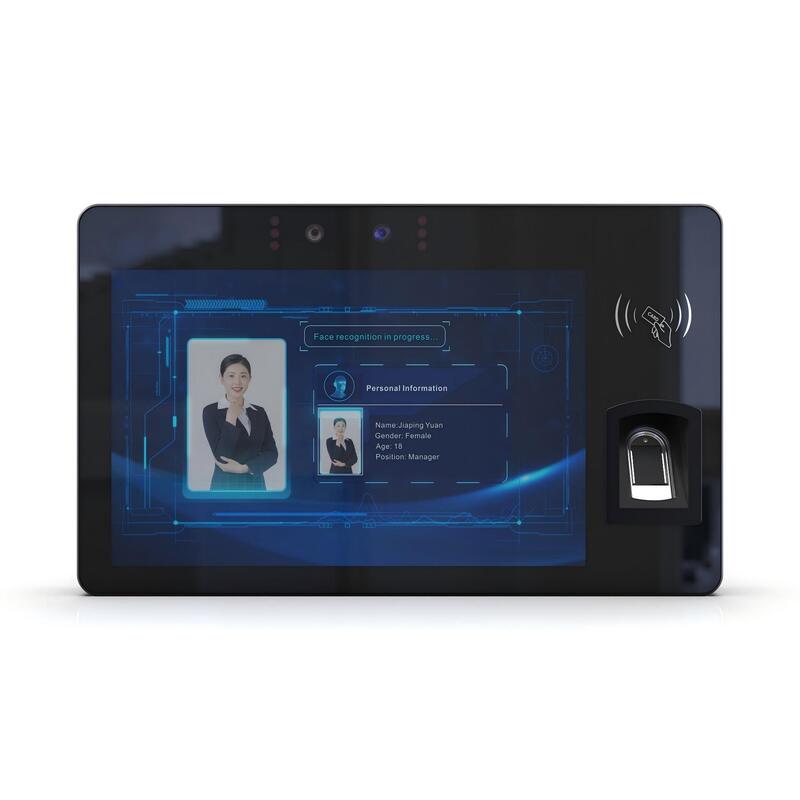

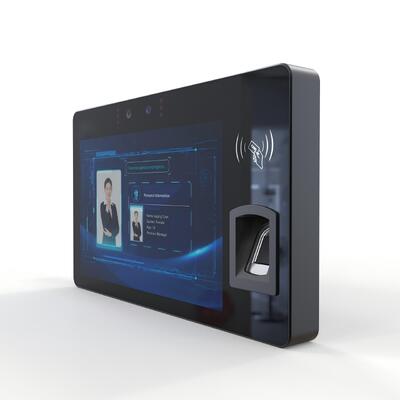

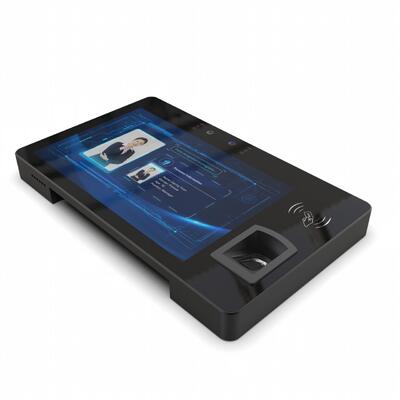

This product is a high-performance 10.1-inch portrait screen facial recognition access control device. It is designed for wall-mounted installation and is equipped with a deep learning facial recognition algorithm and dual-lens live detection cameras. With a 10.1-inch horizontal high-definition screen, it offers a wider field of view when displaying attendance information, visitor interface, or corporate promotional content. The device is widely used in indoor and outdoor scenarios such as enterprise attendance, smart parks, and office buildings.
Key features and highlights:
1. 10.1-inch horizontal screen design, efficient information display
Equipped with a 10.1-inch IPS horizontal screen with a resolution of 1280×800. The horizontal screen ratio (16:9) provides a wider field of view when displaying attendance result details, personnel photos, notifications, announcements, or corporate promotional videos, making it easier to view information completely, especially suitable for placement in the front desk area or entrance locations.
2. Deep learning algorithm, fast and accurate recognition
Based on the deep learning algorithm, the 1:N face comparison speed is less than 0.2 seconds per person, and the verification accuracy rate is ≥ 99%.
3. Integrated attendance and access control and rich interfaces
Interface configuration: Standard includes RJ45 100/1000 Mbps network ports, Wi-Fi, and optional 4G expansion module. Provides Weigang input/output, RS485, relay output, USB, etc. interfaces, enabling seamless connection with various access control controllers.
6. Industrial-grade design, wall-mounted installation

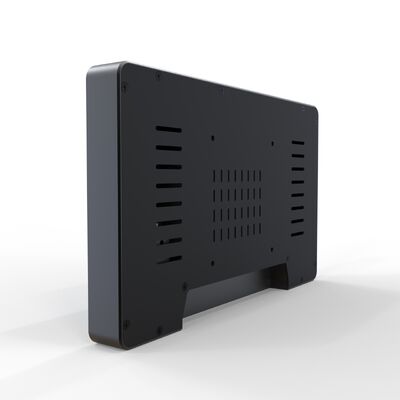

Wall-mounted installation: Standard includes metal mounting plates, supporting wall-mounted installation, compatible with standard 86 base boxes. Some models offer options for gate machine brackets or desktop brackets for installation.
Wide temperature range operation: Working temperature range is -20℃ to 75℃, suitable for harsh cold and hot environments.
| 10.1-inch landscape wall-mounted integrated facial recognition all-in-one device | ||
| essential parameter | operating system | Android 11 |
| function | The RK3566 features a clock speed of up to 1.8 GHz, a built-in convolutional neural network accelerator (NPU), and a computing performance of 0.6 TFLOPS. | |
| configure | 2GB RAM + 16GB storage | |
| LCD screen size | 10.1 inches | |
| screen resolution | 1280*800 | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touch operations. | |
| camera | 2 MP, ultra-wide dynamic range, live detection support, anti-backlight and high-light performance, and selectable focal lengths. | |
| Speaker | Built-in 8Ω/3W | |
| Three-color indicator lights | Red, green, white | |
| POEsupply electricity | support | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensing) | |

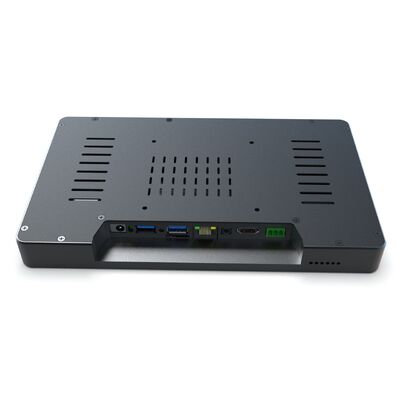

| outer joint | 1 x USB-OTG port, 1 x RJ45 port with POE, 1 x RS-485 port, 1 x relay | |
| Relay door opening | support | |
| 485 Output Door Opening | support | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Technology | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | black | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | Wall-mounted (86mm base box) | |
|
|
| Model Number: | 010 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 8 inches |
| Payment Terms: | T/T |
Product Overview:
This product is a high-performance 10.1-inch portrait screen facial recognition access control device. It is designed for wall-mounted installation and is equipped with a deep learning facial recognition algorithm and dual-lens live detection cameras. With a 10.1-inch horizontal high-definition screen, it offers a wider field of view when displaying attendance information, visitor interface, or corporate promotional content. The device is widely used in indoor and outdoor scenarios such as enterprise attendance, smart parks, and office buildings.
Key features and highlights:
1. 10.1-inch horizontal screen design, efficient information display
Equipped with a 10.1-inch IPS horizontal screen with a resolution of 1280×800. The horizontal screen ratio (16:9) provides a wider field of view when displaying attendance result details, personnel photos, notifications, announcements, or corporate promotional videos, making it easier to view information completely, especially suitable for placement in the front desk area or entrance locations.
2. Deep learning algorithm, fast and accurate recognition
Based on the deep learning algorithm, the 1:N face comparison speed is less than 0.2 seconds per person, and the verification accuracy rate is ≥ 99%.
3. Integrated attendance and access control and rich interfaces
Interface configuration: Standard includes RJ45 100/1000 Mbps network ports, Wi-Fi, and optional 4G expansion module. Provides Weigang input/output, RS485, relay output, USB, etc. interfaces, enabling seamless connection with various access control controllers.
6. Industrial-grade design, wall-mounted installation
Wall-mounted installation: Standard includes metal mounting plates, supporting wall-mounted installation, compatible with standard 86 base boxes. Some models offer options for gate machine brackets or desktop brackets for installation.
Wide temperature range operation: Working temperature range is -20℃ to 75℃, suitable for harsh cold and hot environments.
| 10.1-inch landscape wall-mounted integrated facial recognition all-in-one device | ||
| essential parameter | operating system | Android 11 |
| function | The RK3566 features a clock speed of up to 1.8 GHz, a built-in convolutional neural network accelerator (NPU), and a computing performance of 0.6 TFLOPS. | |
| configure | 2GB RAM + 16GB storage | |
| LCD screen size | 10.1 inches | |
| screen resolution | 1280*800 | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touch operations. | |
| camera | 2 MP, ultra-wide dynamic range, live detection support, anti-backlight and high-light performance, and selectable focal lengths. | |
| Speaker | Built-in 8Ω/3W | |
| Three-color indicator lights | Red, green, white | |
| POEsupply electricity | support | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensing) | |
| outer joint | 1 x USB-OTG port, 1 x RJ45 port with POE, 1 x RS-485 port, 1 x relay | |
| Relay door opening | support | |
| 485 Output Door Opening | support | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Technology | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | black | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | Wall-mounted (86mm base box) | |
