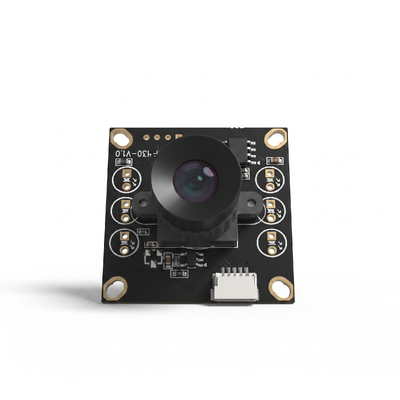

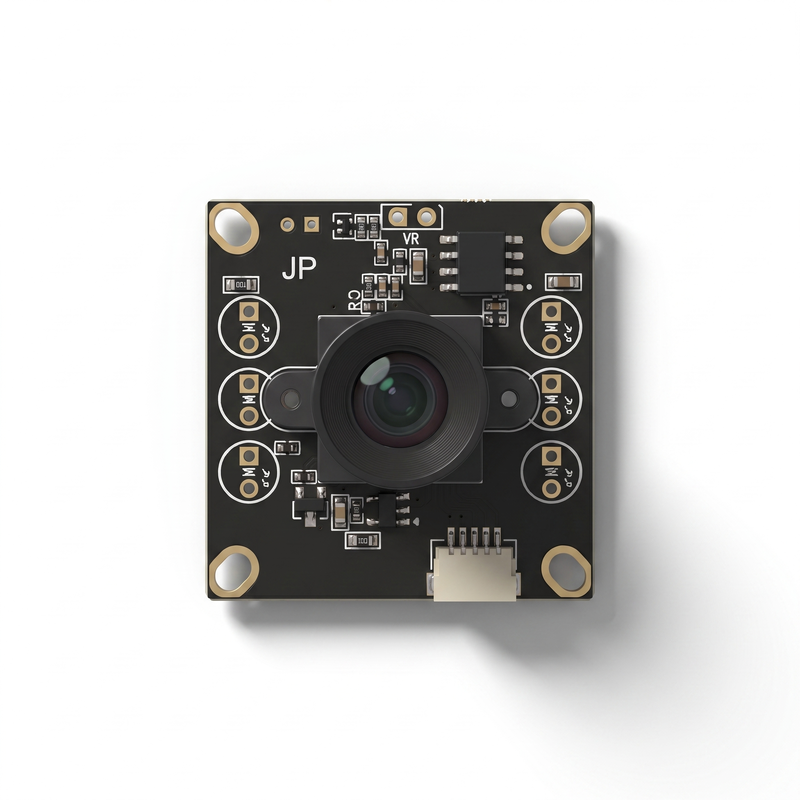

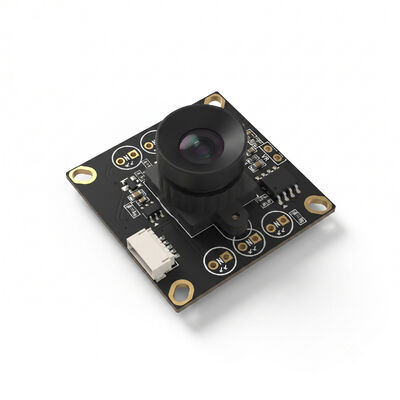

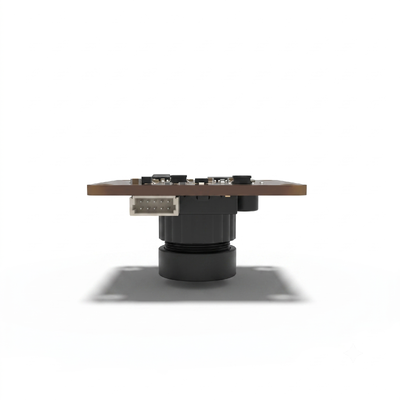

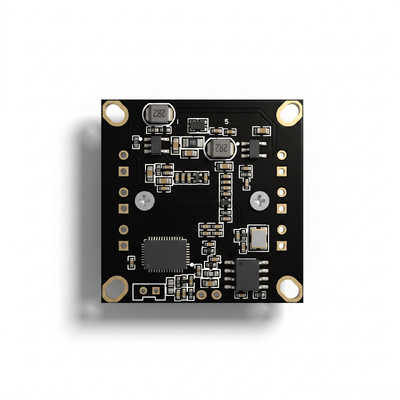

Monocular 2MP WDR Camera Module JP-S8130-V1.0

Product Overview

     The JP-S8130-V1.0 Monocular 2MP WDR Camera Module is a high-performance single-lens USB camera solution featuring a 2MP CMOS sensor with 1080P resolution. With 105dB Wide Dynamic Range (WDR) , the module delivers clear images in challenging lighting conditions — from bright backlight to low-light environments. The 86° field of view strikes the perfect balance between coverage and detail, making it suitable for a wide range of applications. Fully compliant with USB Video Class (UVC) and USB Audio Class standards, the module offers plug-and-play driver-free connectivity with Windows and Android systems via USB 2.0. Featuring an ultra-compact 32mm × 32mm × 25mm design and extremely low power consumption (150mA @ 720p / 15fps, 5mA standby), the JP-S8130-V1.0 is ideal for space-constrained and power-sensitive applications such as video conferencing, access control, kiosks, and portable devices.

Key Advantages

• Ultra-Low Power Consumption: Standby power consumption of just 5mA and operating power of 150mA @ 720p/15fps — significantly lower than dual-lens modules, making it ideal for battery-powered and portable applications.

• High Frame Rate at 720p: Supports up to 60fps @ 720p capture — delivering ultra-smooth video for fast-moving scenes, ideal for action monitoring and motion tracking applications.

• Optimized Balance of Coverage and Detail: 86° field of view provides broader coverage than standard 73.9° lenses while maintaining better detail than ultra-wide 90° lenses — the sweet spot for most surveillance and recognition applications.

• Ultra-Compact Form Factor: At just 32mm × 32mm × 25mm, the module fits into the tightest spaces — perfect for embedded systems, mini cameras, and portable devices.

• High-Quality 1080P Imaging: 2MP CMOS sensor with 105dB WDR and RGB Bayer pattern delivers clear, color-accurate images in challenging lighting conditions.

• UVC Plug-and-Play Compliance: Driver-free connectivity with Windows and Android via USB 2.0 — no complex integration, faster time-to-market.

Why Choose This Module?

• Power Efficiency That Extends Battery Life: At 150mA operating current and just 5mA in standby, the JP-S8130-V1.0 consumes a fraction of the power of dual-lens modules (which typically draw 200-300mA). For battery-powered devices like portable inspection cameras, video doorbells, and mobile kiosks, this translates to significantly longer battery life and smaller battery requirements.

• High Frame Rate for Fast-Moving Scenes: 60fps @ 720p capture means smooth, fluid video with minimal motion blur — critical for monitoring moving subjects, tracking fast action, or capturing clear images in dynamic environments where standard 30fps cameras struggle.

• Single-Lens Simplicity, Dual-Lens Performance: While dual-lens modules offer day/night flexibility, many applications only need visible light imaging. The JP-S8130-V1.0 delivers the same 105dB WDR and 1080P quality as dual-lens modules but with lower cost, smaller size, and lower power consumption — the smart choice for visible-light-only applications.

• 86° — The Goldilocks Field of View: Wide enough to cover doorways and rooms, yet narrow enough to capture facial details for recognition — the 86° FOV is optimized for access control, video conferencing, and security applications where both coverage and detail matter.

• Compact Enough for Any Integration: At 32mm × 32mm × 25mm, the JP-S8130-V1.0 is one of the smallest 1080P WDR modules available — enabling product designs that were previously impossible with larger camera modules.
