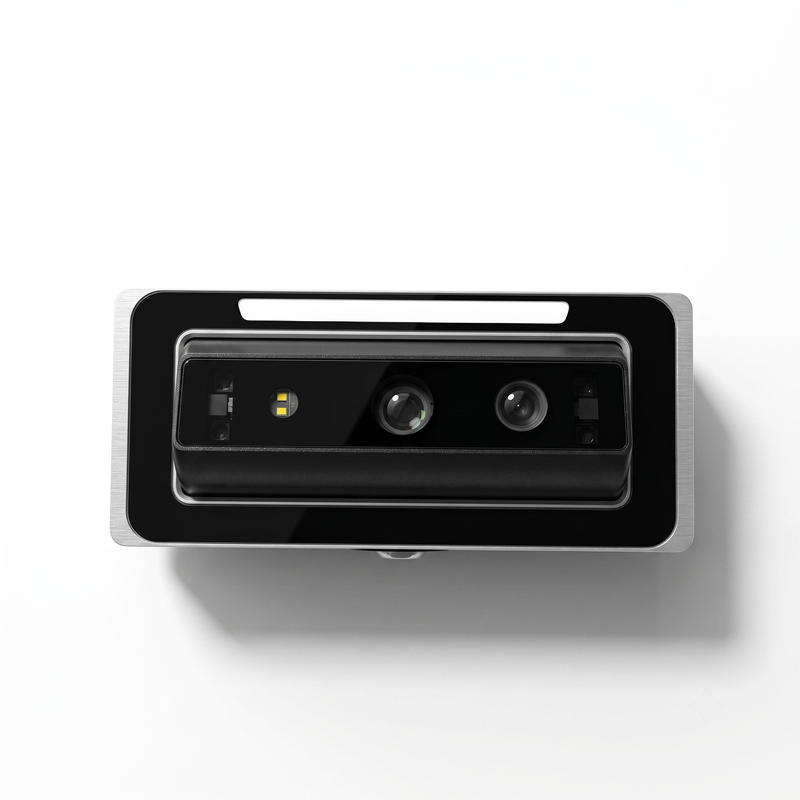

Iris Recognition Module JP-iD18M

Product Overview

     The JP-iD18M Iris Recognition Module is a high-performance iris and face capture module featuring a tilt design, powered by the StarChip SSC338Q processor. This versatile module integrates both iris and face recognition capabilities, supporting 1:1 and 1:N matching for both biometric modalities. Equipped with a 5MP infrared iris camera (810nm) and a 2MP face camera, the module captures high-quality iris images at a working distance of 40cm to 80cm with a +/-30° tilt angle, accommodating users of varying heights. The module outputs standard UVC video, enabling driver-free plug-and-play connectivity with PC and Android hosts via USB. Designed for iris access control systems and self-service kiosks, the module features built-in 1W audio output for voice prompts, operates on USB 5V or optional DC 12V power, and delivers reliable performance from 0°C to 50°C.

Key Advantages

• Dual Biometric Capabilities: Supports both iris and face recognition — capture and verify using either modality or combine both for multi-factor authentication, significantly enhancing security and application flexibility.

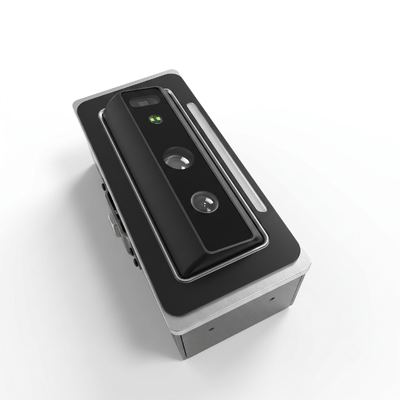

• Tilt Design for User Convenience: +/-30° tilt angle accommodates users of different heights (from 1.4m to 1.9m) without requiring users to bend or stretch — delivering a natural, comfortable experience in access control and self-service scenarios.

• Extended Capture Distance: 40cm–80cm working distance provides greater flexibility than shorter-range modules — users can authenticate from a comfortable distance without needing to position themselves precisely.

• Dual-Camera Configuration: 5MP infrared iris camera (810nm) + 2MP face camera — capture high-quality iris images while simultaneously acquiring facial data for multi-modal recognition.

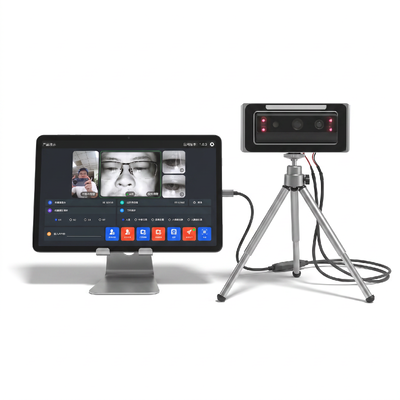

• Driver-Free UVC Connectivity: Standard UVC output via USB 2.0 enables plug-and-play integration with PC and Android hosts — no driver development required, significantly reducing integration time.

• Integrated Audio Feedback: Built-in 1W audio output for voice prompts — guide users through the capture process, confirm successful authentication, or provide error feedback without requiring external speakers.

Why Choose This Module?

• Dual Biometrics — The Gold Standard in Security: Single-modality systems are vulnerable to spoofing and environmental factors. The JP-iD18M combines iris and face recognition in one module — iris offers the highest accuracy of any biometric modality, while face provides additional convenience and liveness detection. Together, they deliver unmatched security and user experience.

• Tilt Design Solves the Height Problem: Fixed-angle modules fail when users are too tall or too short — a common frustration in access control. The JP-iD18M's +/-30° tilt range accommodates users from 1.4m to 1.9m, eliminating awkward bending or stretching and improving user acceptance.

• Flexible Power Options for Diverse Deployments: USB 5V for simple desktop/kiosk installations or DC 12V for longer cable runs in access control systems — one module adapts to both scenarios.

• Driver-Free UVC — Plug and Play: No complex driver development for Windows, Linux, or Android. Simply connect via USB and start capturing. This dramatically reduces integration time and allows rapid deployment in OEM projects.

• Multi-Modal Flexibility for Future-Ready Applications: Whether you need iris-only for high-security environments, face-only for convenience, or dual-biometric for maximum assurance — the JP-iD18M supports all configurations. One module covers multiple product variants, simplifying inventory and reducing development costs.
