| Brand Name: | Shi Zun |
| Model Number: | JP8150B |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |

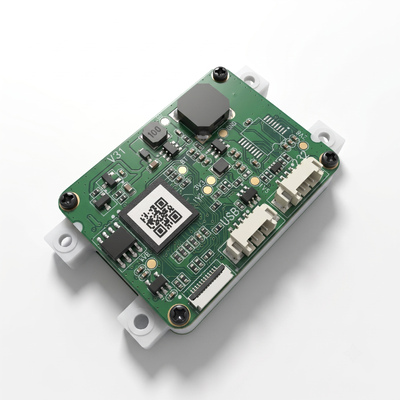

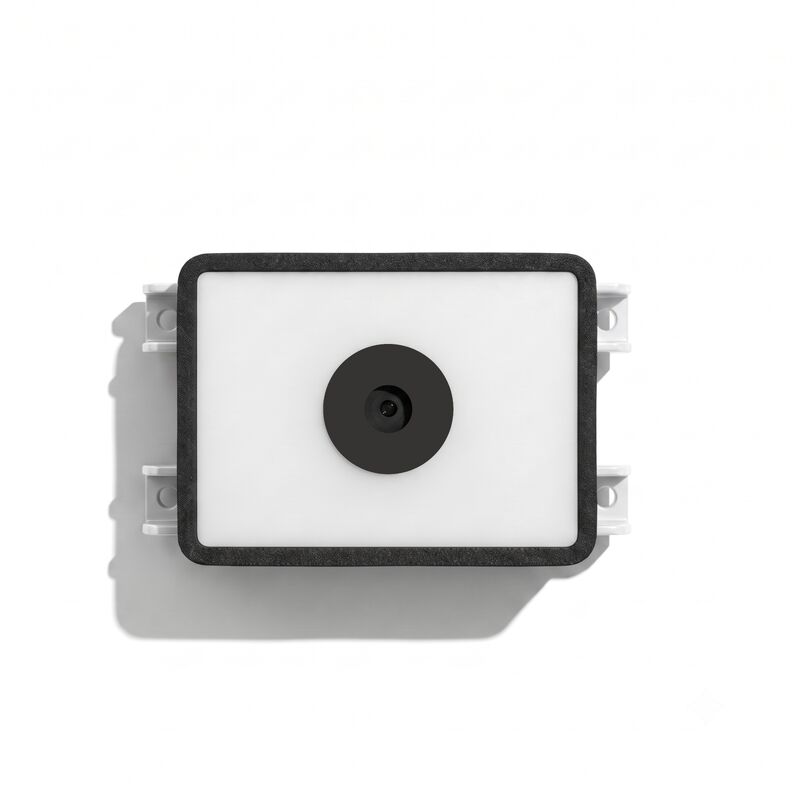

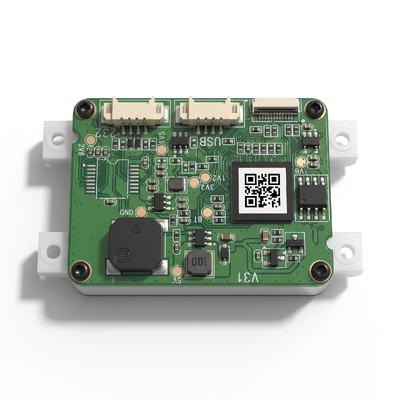

SK86E QR Code Cloud Access Control Integrated Machine DC 12V/500mA (Supports 5-30V)
SK86E Qr Code Access Control Device Description:
SK86E Qr Code Access Control Device Parameters:
| Processor | Xtensa 32-bit LX6 Dual-Core Processor, 600 MIPS |
| Operating System | FreeRTOS Embedded System |
| Recognition Support | QR Code, Bluetooth, IC Card, CPU Card, NFC |
| Protocol Support | HTTP, MQTT, TCP/IP |
| External Interfaces | Dry Contact Output, Exit Button Input, Door Sensor Input, Wiegand, Serial Port (TTL/RS485/RS232) |
| Supported QR Code Formats | PDF417 / Data Matrix / QR Code |
| Reading Angles | Elevation and Tilt ±65°, Rotation 360° |
| Scanning Angles | Horizontal 75°, Vertical 55°, Diagonal 85° |
| Reading Speed | <0.2 seconds |
|
|
| Brand Name: | Shi Zun |
| Model Number: | JP8150B |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 86× 86× 13 (mm) |
| Payment Terms: | T/T |
SK86E QR Code Cloud Access Control Integrated Machine DC 12V/500mA (Supports 5-30V)
SK86E Qr Code Access Control Device Description:
SK86E Qr Code Access Control Device Parameters:
| Processor | Xtensa 32-bit LX6 Dual-Core Processor, 600 MIPS |
| Operating System | FreeRTOS Embedded System |
| Recognition Support | QR Code, Bluetooth, IC Card, CPU Card, NFC |
| Protocol Support | HTTP, MQTT, TCP/IP |
| External Interfaces | Dry Contact Output, Exit Button Input, Door Sensor Input, Wiegand, Serial Port (TTL/RS485/RS232) |
| Supported QR Code Formats | PDF417 / Data Matrix / QR Code |
| Reading Angles | Elevation and Tilt ±65°, Rotation 360° |
| Scanning Angles | Horizontal 75°, Vertical 55°, Diagonal 85° |
| Reading Speed | <0.2 seconds |
