Name: AI Face Recognition Camera
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: JP-FM226
Availability: InStock

Brand Name:	Shi Zun
Model Number:	JP-FM226
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Model:

FM223

Facial Recognition Algorithm:

Supports Deep Learning Infrared Facial Recognition Algorithm

Number Of Users (Facial Recognition):

100 Users

Facial Recognition Accuracy:

98.85%

False Acceptance Rate (Facial Recognition):

0.0001%

Recognition Angle (Facial Recognition):

Approximately ±20° (horizontal And Vertical). (Supports Multi-angle Facial Entry To Expand Recognition Range)

Recognition Distance (Facial Recognition):

30-110 Cm

Liveness Detection:

Supported

Liveness Detection False Acceptance Rate (LDAFAR):

≤1%

Liveness Detection False Rejection Rate (LPFRR):

≤1%

Video Function:

Supports USB Output Of Color Video In MJPEG Format

Communication Interface:

UART & USB

UART Baud Rate:

115200 (default)

Power Supply Voltage:

5.5V–9.0V

Shutdown Current:

0 μA

Operating Temperature:

-20°C To +60°C

Storage Temperature:

-30°C To +70°C

Relative Humidity:

10%–93% (non-condensing)

Packaging Details:

40mm * 15mm * 10.65mm

Supply Ability:

100+pcs+day

Highlight:

ESD Protection Face Recognition Module

2million Face Recognition Module

ESD Protection face detection module

Product Description

JP-FM223 Dual-Lens Camera Module with Facial Recognition Algorithm of 100 users Facial Recognition Accuracy 98.85%

JP-FM223 Dual-Lens Camera Module Features:

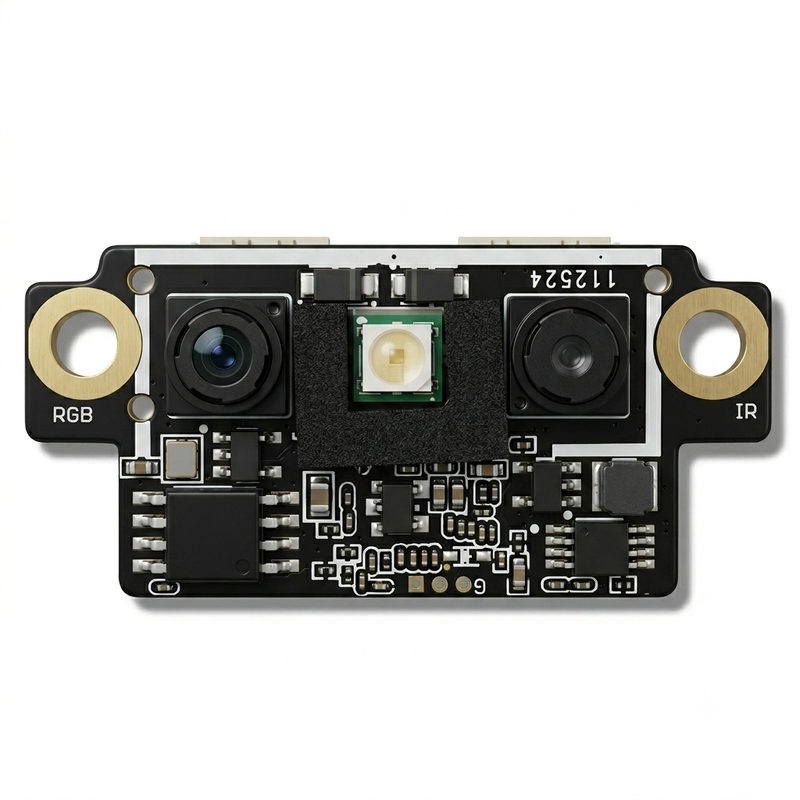

The JP-FM223 module consists of a facial recognition algorithm board, a dual-lens 3D camera, and infrared/white LED lights.
The JP-FM223 module is compact, energy-efficient, and delivers fast recognition.
The JP-FM223 module enhances adaptability to ambient lighting and anti-spoofing capabilities while improving usability for people of varying heights and expanding recognition angles, significantly enhancing the user experience.
The JP-FM223 is an all-in-one compact module integrated with a deep learning dynamic visible light facial recognition algorithm. Based on a financial-grade dual-lens 3D liveness detection algorithm, it features a dual-lens camera to perform liveness detection, facial capture, feature extraction/matching, and user data storage.

It communicates with third-party devices via UART/USB for data exchange and video transmission, enabling intelligent facial recognition for smart door locks. Additionally, it outputs video streams to support local or remote peephole functionality.

JP-FM223 Dual-Lens Camera Module Parameter:

Facial Recognition Algorithm:	Supports deep learning infrared facial recognition algorithm
Number of Users (Facial Recognition):	100 users
Facial Recognition Accuracy:	98.85%
False Acceptance Rate (Facial Recognition):	0.0001%
Recognition Angle (Facial Recognition):	Approximately ±20° (horizontal and vertical)
Recognition Distance (Facial Recognition):	30-110 cm
Video Function:	Supports USB output of color video in MJPEG format
Communication Interface:	UART & USB
UART Baud Rate:	115200 (default)
Power Supply Voltage:	5.5V–9.0V
