| Model Number: | JP2141A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

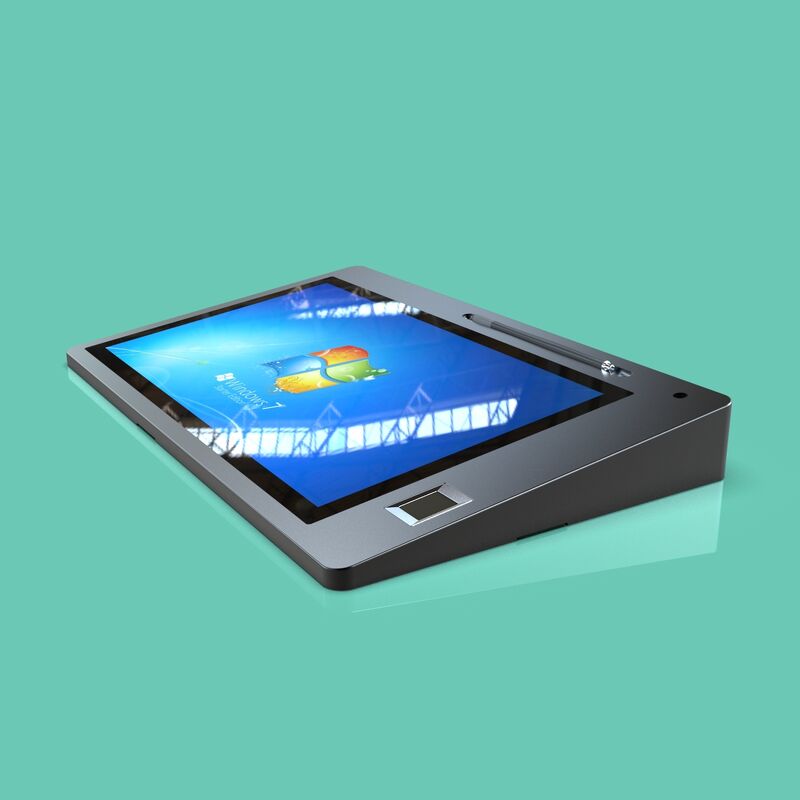

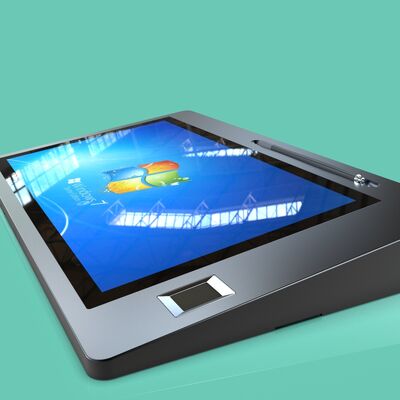

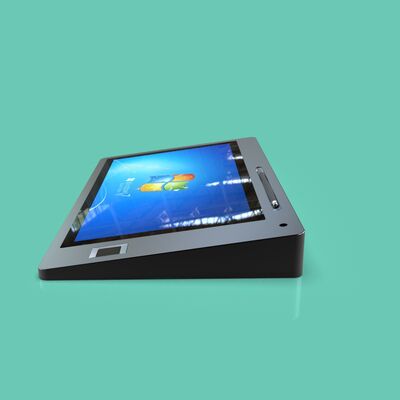

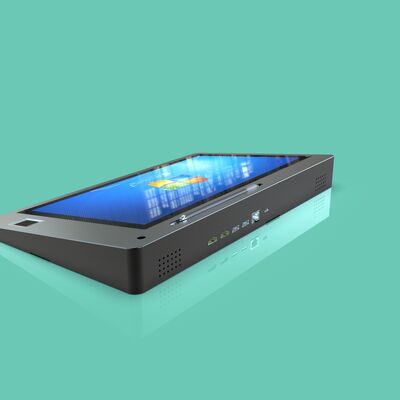

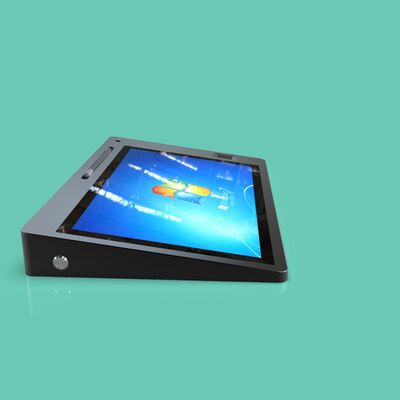

The 14-inch handwriting signature all-in-one machine is an intelligent device specially designed for occasions that require electronic signatures and handwritten annotations. It combines high-definition display technology and precise handwriting recognition capabilities, providing users with a modern paperless office solution. This device not only captures users' original handwriting but also quickly and accurately restores the written content to the computer, ensuring the authenticity of the handwriting.
Technical Features:
1. High-definition Display: Equipped with a 14-inch full HD LCD screen, providing a clear visual experience and smooth touch operation.
2. Original Handwriting Capture Technology: Utilizes industry-leading original handwriting capture technology to ensure the authenticity and accuracy of the written content.
3. Multi-functional Integration: Integrates electronic signatures, document annotations, and other functions to meet various electronic signature and document processing needs.
4. System Customization: Supports system customization development, allowing for personalized desktop and UI functions based on industry user requirements.
5. Pressure Sensing Technology: Supports pressure sensing technology, providing a natural writing experience and meeting the writing habits of different users.
Application Advantages:
Paperless Office: Effectively reduces the use of paper documents, lowers office costs, and achieves environmental protection and energy conservation.
Increased Efficiency: Quick signature and annotation processing, improving work efficiency.
Data Management: Electronic signature data is easy to save and manage, facilitating subsequent queries and analysis.
Application Scenarios:
Finance Insurance: Used for electronic signature and annotation of documents such as contracts and agreements.
Medical Education: In the medical and education fields, for electronic medical records, prescriptions, and electronic signatures of surgical notification letters.
Service Business Hall: Provides one-stop paperless business processing, enhancing the efficiency and image of the service hall.
Hotel Tourism: For hotel paperless check-in processing and electronic signatures of travel contracts.
| 14-Inch All-in-One Touch Device with Original Handwriting Signature Function Parameters | ||
|
Basic Parameters |
Operating System | Win10 |
| Performance | Intel Celeron J4125, 2.0GHz ~ 2.70GHz | |
| Configuration | 8GB RAM + 128GB storage | |
| LCD Screen Size | 14 inches | |
| Viewing Angle | 170°(85/85) / 170°(85/85) (Typical) | |
| Screen Resolution | 1920*1080 | |
| Brightness | 300cd/m², stable performance, service life of up to 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Original Handwriting Specifications | Touch Technology: Electromagnetic Resonance (EMR) | |
| Electromagnetic Technology: Battery‑free passive technology | ||
| Resolution: 2540LPI | ||
| Pen Pressure Levels: 2,048 levels | ||
| Report Rate: >133 PPS | ||
| Accuracy: ±0.5 mm (center area); ±2 mm (within 5 mm from edge) | ||
| Pen Tilt Angle: ±45° | ||
| Sensing Height: 10mm | ||
| Interface: USB | ||
| Electromagnetic Stylus | Passive electromagnetic pressure-sensitive pen | |
| Fingerprint Collection and Recognition Module | Collection method: Capacitive area-array semiconductor sensor, flat pressing | |
| Storage capacity: 500 pieces | ||
| Security level: Level 5 (from low to high: 1, 2, 3, 4, 5) | ||
| False recognition rate (FAR):<0.001% (Security Level:3 ) | ||
| False rejection rate (FRR):<0.1 %(Security Level:3 ) | ||
| Collection window size: 20.4MM*33.4MM | ||
| Image size: 192*192 pixel (efficient 192*192 pixel) | ||
| Image pixels: 508 DPI | ||
| Matching method: Comparison method (1:1)Search method (1:N)(When 500 pieces are fully registered) < 1 second | ||
| Self-learning: Yes | ||
| Lithium Battery | Optional | |
| WIFI | WiFi 5 Dual-band 1T1R 11AC | |
| Bluetooth | Bluetooth 5.0 | |
| Ethernet | 1000Mbps Gigabit LAN | |
| Microphone | Optional | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| Working Parameters | Voltage 12V; Current 4A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 4 USB, 1 USB Type‑C, 2 HDMI 2.0, 1 3.5mm Audio Jack (Audio Output Only), 2 DB9 (RS‑232) Serial Ports, 1 SD/TF Card Reader, 1 Power Switch | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass, explosion-proof, anti-collision, anti-scratch |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Desktop | |
|
