| Model Number: | JP1153A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |

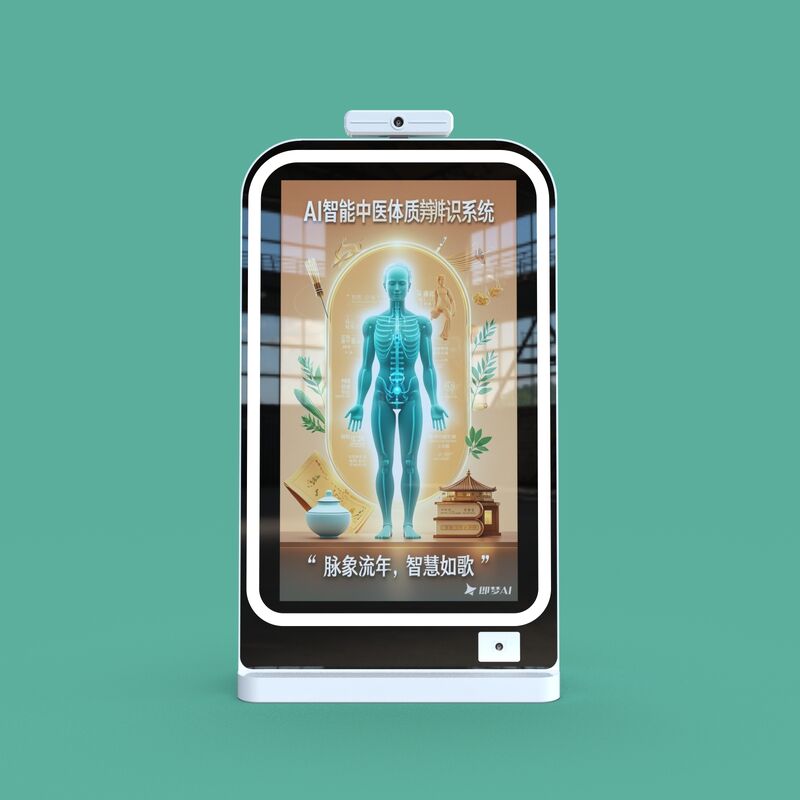

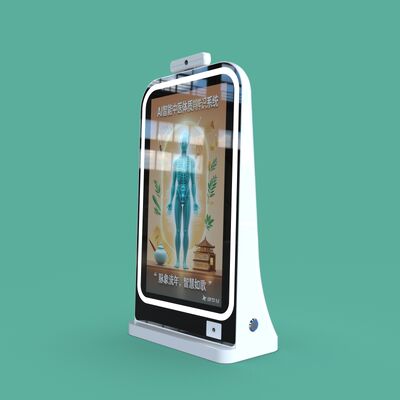

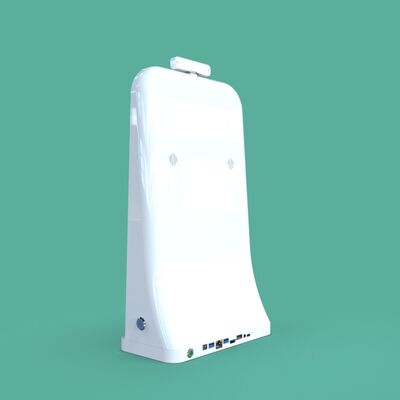

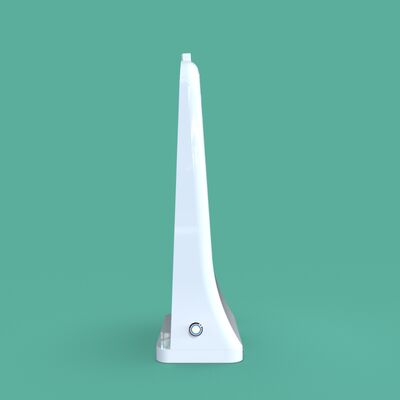

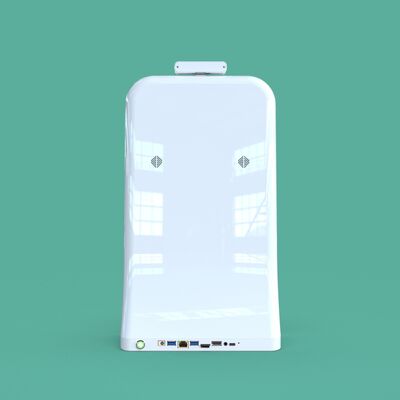

Product Overview:
1. All-metal body, combining quality and durability
All-aluminum CNC processing: The body is made of all-metal material, which undergoes precise CNC machining and surface oxidation treatment. It combines high-end texture with industrial-grade durability. Its resistance to salt fog, corrosion, and high temperatures ensures stability and reliability even in 24/7 continuous operation scenarios.
Chemical tempered ultra-white glass: The screen panel uses high-strength tempered glass, which is scratch-resistant and wear-resistant, effectively handling frequent usage scenarios such as front desks and security guards' workstations.
Desktop flexible deployment: The elegant and compact desktop design can be securely placed on front counter desks, security guard desks, or reception areas, without the need for wall modifications. It can be set up and used immediately.
2. Three-in-one verification of face, ID card, and QR code, covering all scenarios
This device integrates three mainstream verification methods to meet the complete process requirements from reservation to on-site verification:
Face recognition: Equipped with a 200,000-pixel dual-camera system, it supports live detection, effectively resisting photo, video, and 3D mask forgery methods, ensuring the authenticity of the operation.
QR code reservation verification: The built-in QR code scanning module allows visitors to quickly scan and sign in with the reservation QR code, without the need for manual intervention throughout the process.
3. 15.6-inch high-definition large screen, doubling the efficiency of dual-screen interaction
15.6-inch full HD main screen: Resolution 1080×1920, the operation interface is clear and smooth, allowing staff to efficiently complete registration, verification, and query operations.
Ten-point capacitive touch: The touch is sensitive and precise, providing a smooth interaction experience as if using a mobile phone, reducing training costs.
| 15.6-Inch AI Traditional Chinese Medicine Constitution Identification All-in-One Machine Parameters | ||
|
Basic Parameters |
Operating System | Android12 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance |
RK-3588
|
|
| Configuration | 4GB RAM + 32GB storage memory, LPDDR4 optional 8GB/16GB, 32GB, EMMC supports up to 256GB | |
| LCD Screen Size | 15.6 inches | |
| Screen Resolution | 1080*1920 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 300cd/m², super long life, stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| QR Code Reader (Optional) | QR code image sensor: CMOS | |
| QR code resolution: 1280*720 | ||
|
QR code reading system:
|
||
| QR code recognition accuracy: ≥5mil | ||
| 1200W Camera | Maximum effective pixels: 3840*3032 / 3840*2160 | |
| Frame rate: 30FPS 1080P | ||
| Dynamic range: 95DB | ||
| Effective focal length: 6mm | ||
| Field of view: 63° | ||
| Distortion: <1.5% | ||
| Gain/Exposure/White Balance: Auto | ||
| Speaker | Built-in 8Ω/3W*2 | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Fill Light | White LED lights | |
| Microphone | Optional | |
| 4G | Optional | |
| Working Parameters | Voltage 12V, Current 4A, Operating temperature-25℃～+75℃, Humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass, explosion-proof, anti-collision, anti-scratch |
| Body Craftsmanship | Aluminum alloy CNC precision carving with electrophoretic coating finish | |
| Color | White | |
| Standard Features | Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals |
| Installation | Desktop | |
|
| Model Number: | JP1153A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 344.16(H) × 193.59(V) |
| Payment Terms: | T/T |
Product Overview:
1. All-metal body, combining quality and durability
All-aluminum CNC processing: The body is made of all-metal material, which undergoes precise CNC machining and surface oxidation treatment. It combines high-end texture with industrial-grade durability. Its resistance to salt fog, corrosion, and high temperatures ensures stability and reliability even in 24/7 continuous operation scenarios.
Chemical tempered ultra-white glass: The screen panel uses high-strength tempered glass, which is scratch-resistant and wear-resistant, effectively handling frequent usage scenarios such as front desks and security guards' workstations.
Desktop flexible deployment: The elegant and compact desktop design can be securely placed on front counter desks, security guard desks, or reception areas, without the need for wall modifications. It can be set up and used immediately.
2. Three-in-one verification of face, ID card, and QR code, covering all scenarios
This device integrates three mainstream verification methods to meet the complete process requirements from reservation to on-site verification:
Face recognition: Equipped with a 200,000-pixel dual-camera system, it supports live detection, effectively resisting photo, video, and 3D mask forgery methods, ensuring the authenticity of the operation.
QR code reservation verification: The built-in QR code scanning module allows visitors to quickly scan and sign in with the reservation QR code, without the need for manual intervention throughout the process.
3. 15.6-inch high-definition large screen, doubling the efficiency of dual-screen interaction
15.6-inch full HD main screen: Resolution 1080×1920, the operation interface is clear and smooth, allowing staff to efficiently complete registration, verification, and query operations.
Ten-point capacitive touch: The touch is sensitive and precise, providing a smooth interaction experience as if using a mobile phone, reducing training costs.
| 15.6-Inch AI Traditional Chinese Medicine Constitution Identification All-in-One Machine Parameters | ||
|
Basic Parameters |
Operating System | Android12 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance |
RK-3588
|
|
| Configuration | 4GB RAM + 32GB storage memory, LPDDR4 optional 8GB/16GB, 32GB, EMMC supports up to 256GB | |
| LCD Screen Size | 15.6 inches | |
| Screen Resolution | 1080*1920 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 300cd/m², super long life, stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| QR Code Reader (Optional) | QR code image sensor: CMOS | |
| QR code resolution: 1280*720 | ||
|
QR code reading system:
|
||
| QR code recognition accuracy: ≥5mil | ||
| 1200W Camera | Maximum effective pixels: 3840*3032 / 3840*2160 | |
| Frame rate: 30FPS 1080P | ||
| Dynamic range: 95DB | ||
| Effective focal length: 6mm | ||
| Field of view: 63° | ||
| Distortion: <1.5% | ||
| Gain/Exposure/White Balance: Auto | ||
| Speaker | Built-in 8Ω/3W*2 | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Fill Light | White LED lights | |
| Microphone | Optional | |
| 4G | Optional | |
| Working Parameters | Voltage 12V, Current 4A, Operating temperature-25℃～+75℃, Humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass, explosion-proof, anti-collision, anti-scratch |
| Body Craftsmanship | Aluminum alloy CNC precision carving with electrophoretic coating finish | |
| Color | White | |
| Standard Features | Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals |
| Installation | Desktop | |
