| Model Number: | 009 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:
This product is a high-performance 8-inch desktop palm vein recognition all-in-one device, equipped with advanced palm vein biometric technology. The device uses near-infrared light to illuminate the palm and capture the subsurface venous network pattern, which is then matched against pre-registered templates to enable contactless, "wave-and-go" identity verification. It is widely used in access control, employee attendance tracking, identity authentication, and payment verification scenarios.
Core Features and Highlights
1. Palm Vein Recognition – High-Security Biometric Technology
Unlike common fingerprint recognition (surface-level features that can be duplicated) or facial recognition (susceptible to lighting and makeup changes), palm vein recognition offers unique advantages:
Internal Feature, Extremely Difficult to Forge: Identifies the internal vascular network beneath the skin, making it impossible to replicate using photos, 3D printing, or molds.
Mandatory Liveness Detection: Only living palms with circulating blood can be recognized, completely eliminating spoofing risks.
Ultra-High Security: False acceptance rate (FAR) below one in ten million (some models achieve one in one hundred million), offering greater accuracy than facial recognition.
Contactless and Hygienic: Typical recognition distance ranges from 25 to 45 cm, requiring no physical contact and minimizing public transmission risks.
Environmentally Robust: Performance remains stable regardless of sweaty hands, water exposure, temperature fluctuations, or changes in hairstyle and makeup.

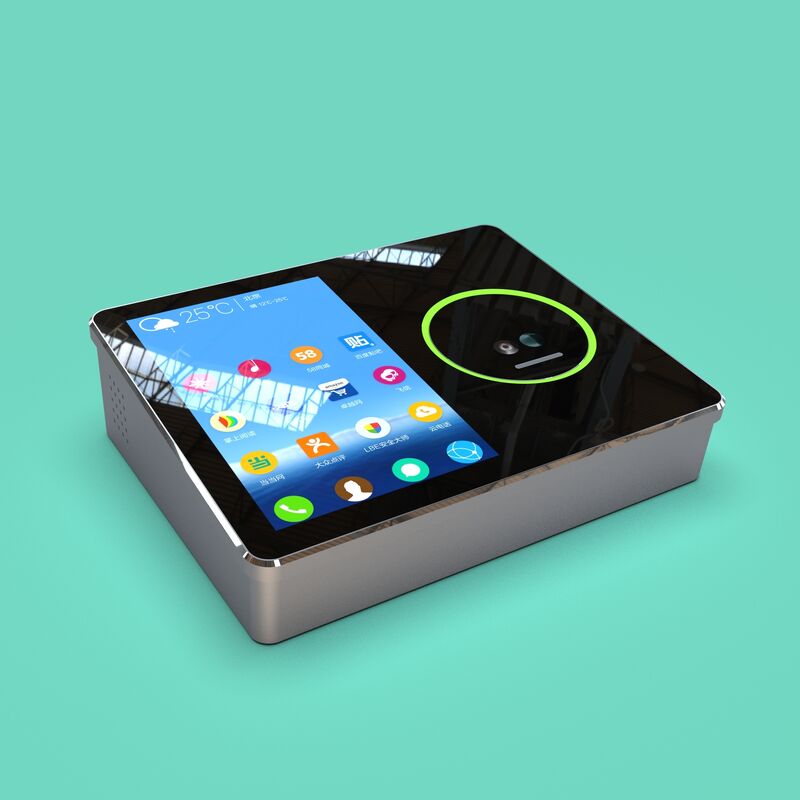

2. 8-Inch HD Touchscreen with Desktop Design
Equipped with an 8-inch IPS HD touchscreen with a resolution of 800×1280, providing a clear interface and visual guidance for optimal palm positioning. The compact desktop design makes it ideal for placement at reception desks, security counters, cashier stations, and similar locations.
3. Ultra-Fast Recognition
Palm vein recognition typically takes ≤1 second (some models complete million-level database matching within 1 second), enabling truly seamless "wave-and-go" access.
4. Rich Interfaces and System Integration
Communication Options: Standard RJ45 Ethernet and Wi-Fi; optional 4G full-network connectivity.
Interface Configuration: Includes Wiegand input/output, RS232, relay output, USB 2.0, enabling seamless integration with various access control controllers and turnstiles.
Secondary Development: Provides standard SDK support for integration with third-party attendance systems, OA platforms, or access control management software.
Applicable scenarios
High-security areas: Access control for high-safety zones such as data centers, laboratories, and vaults.
Enterprises/office buildings: Attendance tracking and employee access management to prevent proxy clocking-in.
Financial institutions: Customer identity verification and payment authorization.
Campus/healthcare: Access control for libraries and dormitories; patient identity verification in hospitals.
| Specifications of the 8-inch palm vein recognition all-in-one device | |||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. | |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 GHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | ||
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | ||
| LCD screen size | 8 inches | ||
| screen resolution | 800*1280 | ||
| Viewing angle | IPS Full-View | ||
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | ||
| touch screen | 10-point G+G capacitive touch, with each point capable of withstanding over 50 million touches. | ||
|
Palmar vein recognition module
|
Palm brushing working distance: 5–15 cm | ||
| Scan range: 3–20 cm; supports simple QR code scanning | |||
| Hand-flip parameters: pitch angle ≤ 30°, roll angle ≤ 30°, yaw angle ≤ 360° | |||
| Palm recognition accuracy rate: 98% | |||
| Palm creases and palmar veins FAR: |
RGB: FAR:1.002%@1e-6 IR: FAR:1.52%@1e-6 Overall FAR: 1 in 100 million |
||
| Wi-Fi | High-performance Wi-Fi, supports 802.11B/G/N | ||
| PDA | High-performance Bluetooth, supports Bluetooth Version 5.2 | ||
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | ||
| Indication light | Red, white, and green LED lights | ||
| Speaker | Built-in 8Ω/3W | ||
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensable) | ||

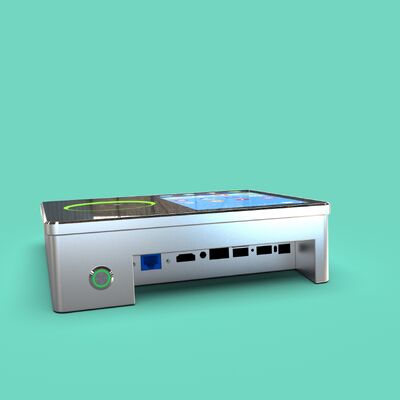

| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication and relay connections. | ||
| material quality | Surface material | Mo氏 Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant | |
| Process Technology | Anodizing of CNC-machined aluminum alloy surfaces | ||
| pigment | Black + Silver | ||
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. | |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | ||
| way to install | Desktop installation | ||
|
|
| Model Number: | 009 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 8 inches |
| Payment Terms: | T/T |
Product Overview:
This product is a high-performance 8-inch desktop palm vein recognition all-in-one device, equipped with advanced palm vein biometric technology. The device uses near-infrared light to illuminate the palm and capture the subsurface venous network pattern, which is then matched against pre-registered templates to enable contactless, "wave-and-go" identity verification. It is widely used in access control, employee attendance tracking, identity authentication, and payment verification scenarios.
Core Features and Highlights
1. Palm Vein Recognition – High-Security Biometric Technology
Unlike common fingerprint recognition (surface-level features that can be duplicated) or facial recognition (susceptible to lighting and makeup changes), palm vein recognition offers unique advantages:
Internal Feature, Extremely Difficult to Forge: Identifies the internal vascular network beneath the skin, making it impossible to replicate using photos, 3D printing, or molds.
Mandatory Liveness Detection: Only living palms with circulating blood can be recognized, completely eliminating spoofing risks.
Ultra-High Security: False acceptance rate (FAR) below one in ten million (some models achieve one in one hundred million), offering greater accuracy than facial recognition.
Contactless and Hygienic: Typical recognition distance ranges from 25 to 45 cm, requiring no physical contact and minimizing public transmission risks.
Environmentally Robust: Performance remains stable regardless of sweaty hands, water exposure, temperature fluctuations, or changes in hairstyle and makeup.
2. 8-Inch HD Touchscreen with Desktop Design
Equipped with an 8-inch IPS HD touchscreen with a resolution of 800×1280, providing a clear interface and visual guidance for optimal palm positioning. The compact desktop design makes it ideal for placement at reception desks, security counters, cashier stations, and similar locations.
3. Ultra-Fast Recognition
Palm vein recognition typically takes ≤1 second (some models complete million-level database matching within 1 second), enabling truly seamless "wave-and-go" access.
4. Rich Interfaces and System Integration
Communication Options: Standard RJ45 Ethernet and Wi-Fi; optional 4G full-network connectivity.
Interface Configuration: Includes Wiegand input/output, RS232, relay output, USB 2.0, enabling seamless integration with various access control controllers and turnstiles.
Secondary Development: Provides standard SDK support for integration with third-party attendance systems, OA platforms, or access control management software.
Applicable scenarios
High-security areas: Access control for high-safety zones such as data centers, laboratories, and vaults.
Enterprises/office buildings: Attendance tracking and employee access management to prevent proxy clocking-in.
Financial institutions: Customer identity verification and payment authorization.
Campus/healthcare: Access control for libraries and dormitories; patient identity verification in hospitals.
| Specifications of the 8-inch palm vein recognition all-in-one device | |||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. | |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 GHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | ||
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | ||
| LCD screen size | 8 inches | ||
| screen resolution | 800*1280 | ||
| Viewing angle | IPS Full-View | ||
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | ||
| touch screen | 10-point G+G capacitive touch, with each point capable of withstanding over 50 million touches. | ||
|
Palmar vein recognition module
|
Palm brushing working distance: 5–15 cm | ||
| Scan range: 3–20 cm; supports simple QR code scanning | |||
| Hand-flip parameters: pitch angle ≤ 30°, roll angle ≤ 30°, yaw angle ≤ 360° | |||
| Palm recognition accuracy rate: 98% | |||
| Palm creases and palmar veins FAR: |
RGB: FAR:1.002%@1e-6 IR: FAR:1.52%@1e-6 Overall FAR: 1 in 100 million |
||
| Wi-Fi | High-performance Wi-Fi, supports 802.11B/G/N | ||
| PDA | High-performance Bluetooth, supports Bluetooth Version 5.2 | ||
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | ||
| Indication light | Red, white, and green LED lights | ||
| Speaker | Built-in 8Ω/3W | ||
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensable) | ||
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication and relay connections. | ||
| material quality | Surface material | Mo氏 Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant | |
| Process Technology | Anodizing of CNC-machined aluminum alloy surfaces | ||
| pigment | Black + Silver | ||
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. | |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | ||
| way to install | Desktop installation | ||
