Face Recognition Terminal
Created with Pixso. JP171 7-Inch Vertical Screen Monocular Wide Dynamic Camera with Card Swiping Attendance Device
name
  • name
  • name
  • name
  • name
  • name
  • name

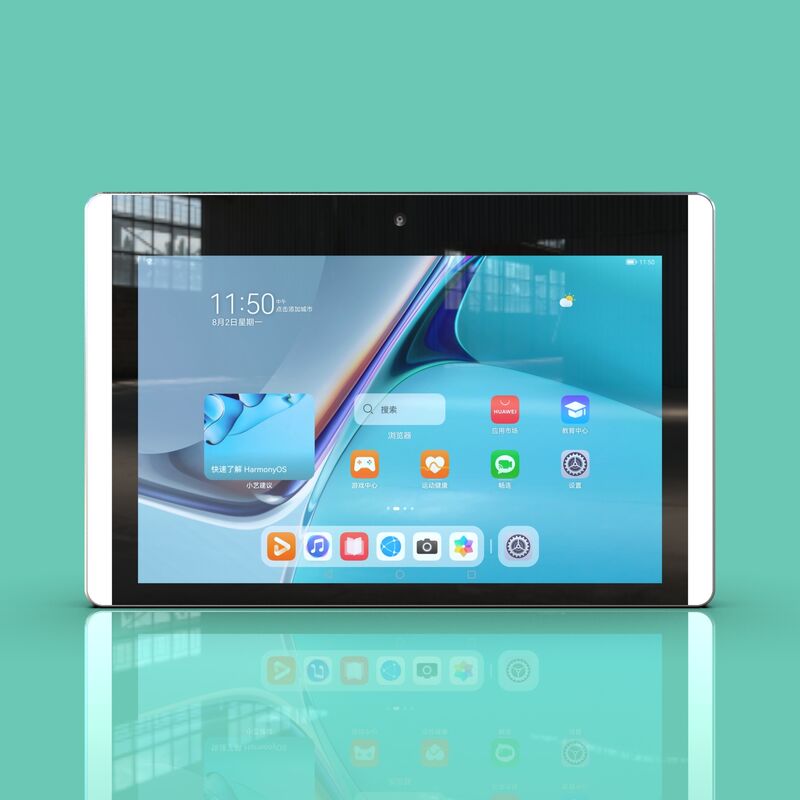

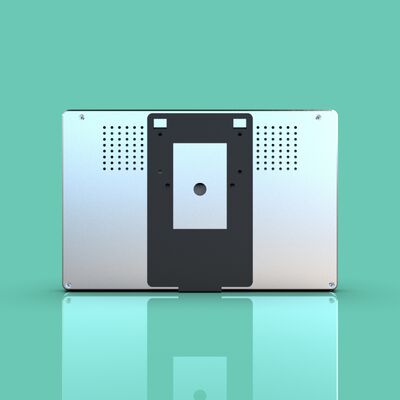

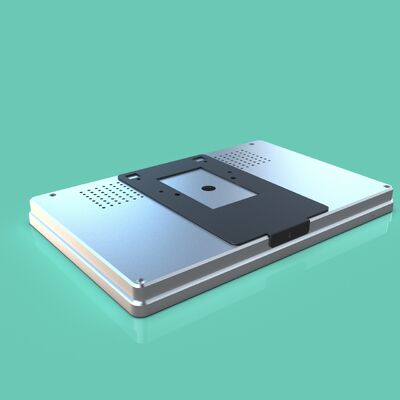

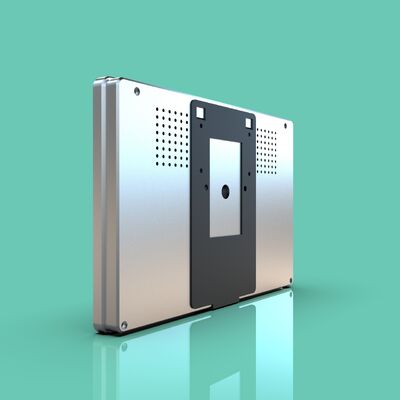

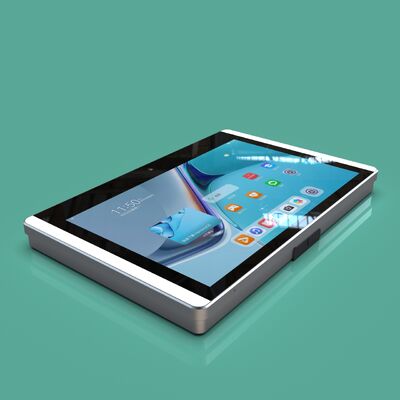

JP171 7-Inch Vertical Screen Monocular Wide Dynamic Camera with Card Swiping Attendance Device

Brand Name: Shi Zun
Model Number: JP171
MOQ: Negotiable
Price: Negotiable
Delivery Time: 10 working days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Operating System:
Optional RK3568/3288, Quad-core CPU, 2.0/1.8 GHz, Android 11/7.1 Version
Configuration:
2GB RAM + 16GB Storage
Screen Size:
7 Inches
Screen Resolution:
800×1280, R/L178° Wide Viewing Angle
Touch Screen:
10-point Capacitive Touch
Brightness:
300cd
Camera::
200W Pixel Single Camera With Wide Dynamic Range; Supports Active Fill Light; Recognition Distance: 0.4–2 Meters
Fill Light::
Tri-color Light (red, Green, White)
Speaker::
8Ω 3W
Microphone::
Supported
Working Parameters::
Voltage: DC12V, Current: 3A, Working Temperature: -20~70°C, Humidity: <90% RH
Interfaces::
1 USB/OTG, 1 RJ45 Network Port, 1 RS485 Interface, 1 Wiegand Input/output, 1 Relay Interface
Panel Material::
Front Tempered Glass
Body Craftsmanship::
Aluminum Alloy CNC Integrated Design
Installation Method::
Wall-mounted
Color::
Black + Silver
Packaging Details:
7 inches
Supply Ability:
100+pcs+day
Highlight:

8 Inch face recognition temperature terminal

,

Wall Mounted Face Recognition Access Control Terminal

,

Face Recognition Terminal 8 Inch

Product Description

JP171 7-Inch Vertical Screen Monocular Wide Dynamic Camera with Card Swiping Attendance Device



JP171 All-in-one Attendance and Access Control Device Description:

This product is a 7-inch all-in-one attendance and access control device, mainly used for facial recognition attendance and access control in factories, enterprises, and organizations. It can be used independently or connected to a network.



Features:

  1. Android 11 operating system
  2. 2GB RAM, 16GB storage
  3. Fast and accurate recognition: completes facial recognition in as fast as 0.2 seconds with an accuracy rate exceeding 99%; supports recognition within 0.5m-3.0m.
  4. Aerospace-grade aluminum alloy integrated body for high protection, strength, and durability.
  5. Easy installation: plug-and-play for convenient use, supports both wired and wireless connections.
  6. Large recognition database: supports up to 50,000 local users.
  7. Protection grade: IP65 for dust and water resistance.
  8. Operating temperature range: -25℃ to +75℃.
  9. Standardized interface: supports the Wiegand protocol for the access control industry and provides API interfaces for integration with third-party systems.
  10. Automatic exposure adjustment: adapts to extreme lighting conditions such as strong light, low light, and backlight, ensuring precise recognition.



JP171 All-in-one Attendance and Access Control Device Parameter:

Operating System: Optional RK3568/3288, Quad-core CPU, 2.0/1.8 GHz,
Android 11/7.1 version		 Configuration: 2GB RAM + 16GB storage
Screen Size: 7 inches Screen Resolution: 800×1280, R/L178° wide viewing angle
Camera:

200W pixel single camera with wide dynamic range; supports active fill light;
recognition distance: 0.4–2 meters

 Working Parameters:

Voltage: DC12V, current: 3A, working temperature: -20~70°C,
humidity: <90% RH
Interfaces: 1 USB/OTG, 1 RJ45 network port, 1 RS485 interface,
1 Wiegand input/output, 1 relay interface		 Panel Material: Front tempered glass
Body Craftsmanship: Aluminum alloy CNC integrated design Installation Method: Wall-mounted
brightness 300cd surface material Tempered glass front



JP171 7-Inch Vertical Screen Monocular Wide Dynamic Camera with Card Swiping Attendance Device 0JP171 7-Inch Vertical Screen Monocular Wide Dynamic Camera with Card Swiping Attendance Device 1JP171 7-Inch Vertical Screen Monocular Wide Dynamic Camera with Card Swiping Attendance Device 2JP171 7-Inch Vertical Screen Monocular Wide Dynamic Camera with Card Swiping Attendance Device 3JP171 7-Inch Vertical Screen Monocular Wide Dynamic Camera with Card Swiping Attendance Device 4JP171 7-Inch Vertical Screen Monocular Wide Dynamic Camera with Card Swiping Attendance Device 5

Tags:

Waterproof Face Recognition Terminal

IP54 Face Recognition Terminal

300cd Face Recognition Terminal
