| Model Number: | JP2101A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

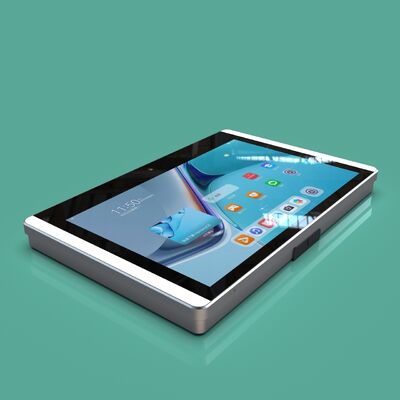

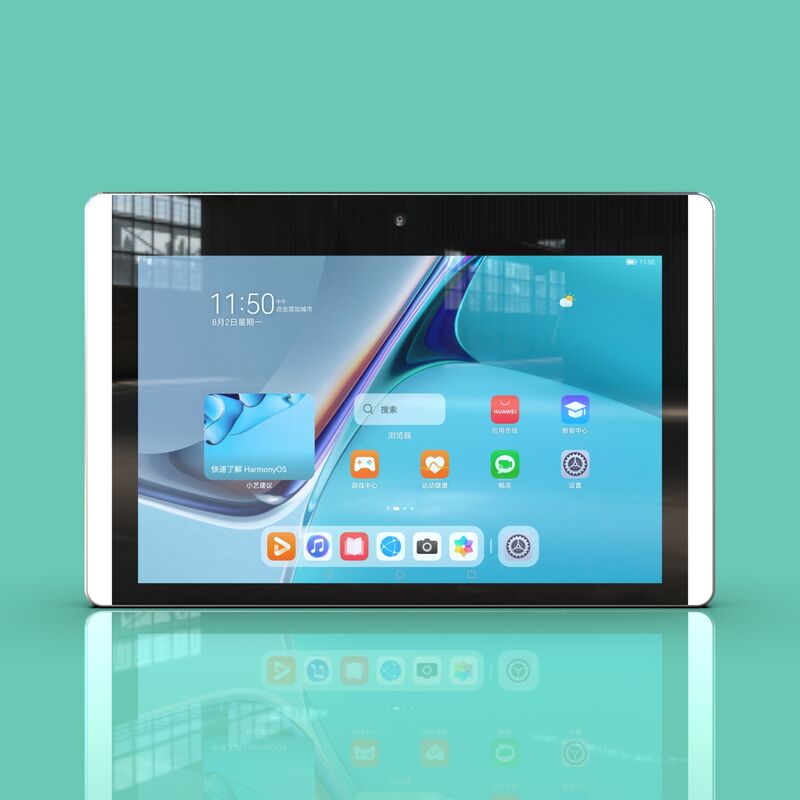

This product is a high-performance 10.1-inch portrait screen facial recognition access control terminal. It adopts a wall-mounted installation design and is equipped with a deep learning facial recognition algorithm and dual-lens live detection cameras. Relying on the 10.1-inch horizontal high-definition screen, when displaying attendance information, visitor interface, or enterprise promotional content, the field of vision is wider. The equipment is widely used in indoor and outdoor scenarios such as enterprise attendance, smart parks, office buildings, etc.
Core functions and highlights:
1. 10.1-inch horizontal screen design, more efficient information display
Equipped with a 10.1-inch IPS horizontal screen with a resolution of 1280×800. The horizontal screen ratio (16:9) is larger than the vertical screen, providing a wider field of vision when displaying attendance result details, personnel photos, notifications, announcements, or enterprise promotional videos. It is particularly suitable for placement in the front desk area or entrance/exit positions.
2. Deep learning algorithm, fast and accurate recognition
Based on the deep learning algorithm, the 1:N face comparison speed is less than 0.2 seconds per person, and the verification accuracy rate is ≥ 99%.
3. Integrated attendance and access control and rich interfaces
Interface configuration: Standard includes RJ45 100/1000 Mbps network ports, Wi-Fi, and optional 4G expansion module. Provides Weigang input/output, RS485, relay output, USB, etc. interfaces, and can be seamlessly connected with various access control controllers.
6. Industrial-grade design, wall-mounted installation
Wall-mounted installation: Standard includes metal mounting plates, supporting wall-mounted installation, compatible with standard 86 base boxes. Some models can be selected for gate machine brackets or desktop brackets installation.
Wide temperature range operation: Working temperature range is -20℃ to 75℃, suitable for harsh cold and hot environments.
| 10.1-Inch Intelligent Meeting Room Doorplate Machine Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system |
| Performance | RK3566 with a main frequency of up to 1.8GHZ, built-in Convolutional Neural Network Accelerator NPU, 0.6T computing power | |
| Configuration | 2GB RAM + 16GB Storage Memory | |
| LCD Screen Size | 10.1 inches | |
| Screen Resolution | 1280*800 | |
| Viewing Angle | IPS Full Viewing Angle | |
| Brightness | 500cd/m², stable performance, and a service life of more than 60,000 hours, capable of 7*24-hour uninterrupted operation throughout the year | |
| Touchscreen | 10-point G+G Capacitive Touch, any point can withstand more than 50 million touches | |
| Camera | 2 million pixels, ultra-wide dynamic range, resistant to backlight and strong light, shooting focal length can be selected | |
| Speaker | Built-in 8Ω/3W | |
| Three-Color Indicator Light | Red, white, green | |
| PoE Power Supply | Support | |
| Ethernet | 1 10/100/1000Mbps Adaptive Ethernet | |
| 485 Output | Support | |
| Relay Door Opening | Support | |
| Customizable Glowing LOGO | Support | |
| Working Parameters | Voltage 12V, Current 3A, Operating Temperature-25℃～+75℃, Humidity 5%~93%RH non-condensing | |
|
External Interfaces
|
1 channel of USB-OTG, 1 channel of RJ45 with PoE, 1 channel of 485, 1 channel of Relay | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof, anti-collision, anti-scratch |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful facial comparison |
| Network Upload | Cooperate with the server-side software to upload and summarize comparison information of multiple terminals | |
| Installation | Wall-Mounted (86 Bottom Box) | |
|
|
| Model Number: | JP2101A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 7 inches |
| Payment Terms: | T/T |
Product Overview:
This product is a high-performance 10.1-inch portrait screen facial recognition access control terminal. It adopts a wall-mounted installation design and is equipped with a deep learning facial recognition algorithm and dual-lens live detection cameras. Relying on the 10.1-inch horizontal high-definition screen, when displaying attendance information, visitor interface, or enterprise promotional content, the field of vision is wider. The equipment is widely used in indoor and outdoor scenarios such as enterprise attendance, smart parks, office buildings, etc.
Core functions and highlights:
1. 10.1-inch horizontal screen design, more efficient information display
Equipped with a 10.1-inch IPS horizontal screen with a resolution of 1280×800. The horizontal screen ratio (16:9) is larger than the vertical screen, providing a wider field of vision when displaying attendance result details, personnel photos, notifications, announcements, or enterprise promotional videos. It is particularly suitable for placement in the front desk area or entrance/exit positions.
2. Deep learning algorithm, fast and accurate recognition
Based on the deep learning algorithm, the 1:N face comparison speed is less than 0.2 seconds per person, and the verification accuracy rate is ≥ 99%.
3. Integrated attendance and access control and rich interfaces
Interface configuration: Standard includes RJ45 100/1000 Mbps network ports, Wi-Fi, and optional 4G expansion module. Provides Weigang input/output, RS485, relay output, USB, etc. interfaces, and can be seamlessly connected with various access control controllers.
6. Industrial-grade design, wall-mounted installation
Wall-mounted installation: Standard includes metal mounting plates, supporting wall-mounted installation, compatible with standard 86 base boxes. Some models can be selected for gate machine brackets or desktop brackets installation.
Wide temperature range operation: Working temperature range is -20℃ to 75℃, suitable for harsh cold and hot environments.
| 10.1-Inch Intelligent Meeting Room Doorplate Machine Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system |
| Performance | RK3566 with a main frequency of up to 1.8GHZ, built-in Convolutional Neural Network Accelerator NPU, 0.6T computing power | |
| Configuration | 2GB RAM + 16GB Storage Memory | |
| LCD Screen Size | 10.1 inches | |
| Screen Resolution | 1280*800 | |
| Viewing Angle | IPS Full Viewing Angle | |
| Brightness | 500cd/m², stable performance, and a service life of more than 60,000 hours, capable of 7*24-hour uninterrupted operation throughout the year | |
| Touchscreen | 10-point G+G Capacitive Touch, any point can withstand more than 50 million touches | |
| Camera | 2 million pixels, ultra-wide dynamic range, resistant to backlight and strong light, shooting focal length can be selected | |
| Speaker | Built-in 8Ω/3W | |
| Three-Color Indicator Light | Red, white, green | |
| PoE Power Supply | Support | |
| Ethernet | 1 10/100/1000Mbps Adaptive Ethernet | |
| 485 Output | Support | |
| Relay Door Opening | Support | |
| Customizable Glowing LOGO | Support | |
| Working Parameters | Voltage 12V, Current 3A, Operating Temperature-25℃～+75℃, Humidity 5%~93%RH non-condensing | |
|
External Interfaces
|
1 channel of USB-OTG, 1 channel of RJ45 with PoE, 1 channel of 485, 1 channel of Relay | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof, anti-collision, anti-scratch |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful facial comparison |
| Network Upload | Cooperate with the server-side software to upload and summarize comparison information of multiple terminals | |
| Installation | Wall-Mounted (86 Bottom Box) | |
