5MP USB Camera Module

Name: 5MP USB Camera Module
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: JP-U165
Availability: InStock

Brand Name:	Shi Zun
Model Number:	JP-U165
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Keywords:

Dual-Eye Camera Module

Photosensitive Chip:

RGB CMOS 1/2.7"/ IR CMOS 1/2.7”

Pixel Size:

3.0μm X3.0μm

SNR Max:

41 DB/ TBD DB

Max Dynamicrange:

105 DB/ TBD DB

Minimum Illumination:

0.1Lux At F12

F/No:

2.4

EFL:

2.9mm

FOV:

95°

IR:

650±10nm/ 850±10nm

Lens Construction:

2G4P+IR

Maximum Resolution And Frame Rate:

1920* 1080(30ps)

Other Optional Resolution Ratio:

640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)

Support Format:

YUV / MJPG

USB Power Supply Voltage:

5V±5%

Connect The Interface:

2* USB-5pin-1.0mm

Interface Speed:

480mb/s

Operating Systemrequest:

WinXP, Win7, Linux Or Vista And Android4.1

Power Consumption:

Regular Work: 2W

Storage Temperature:

0°C To 50°C

Working Temperature:

-10°C To+60°

Structure Size:

92mmx 18mmx 18.4mm

Packaging Details:

92mmx 18mmx 18.4mm

Supply Ability:

100+pcs+day

Product Description

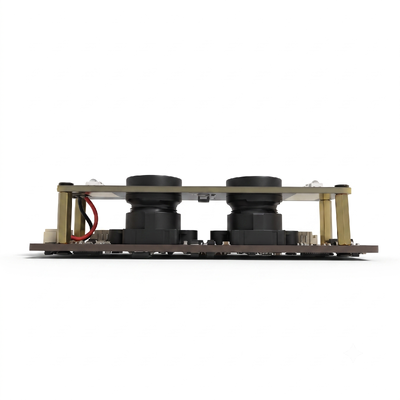

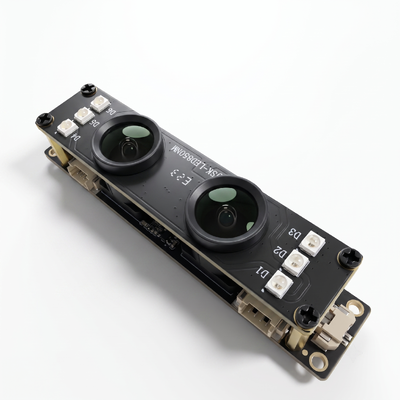

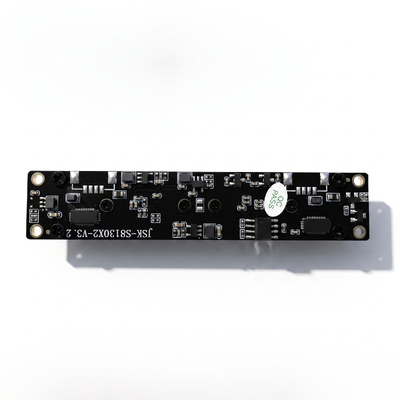

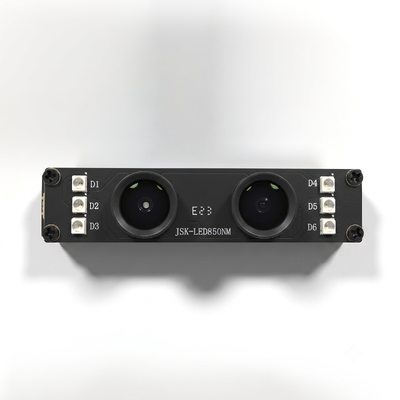

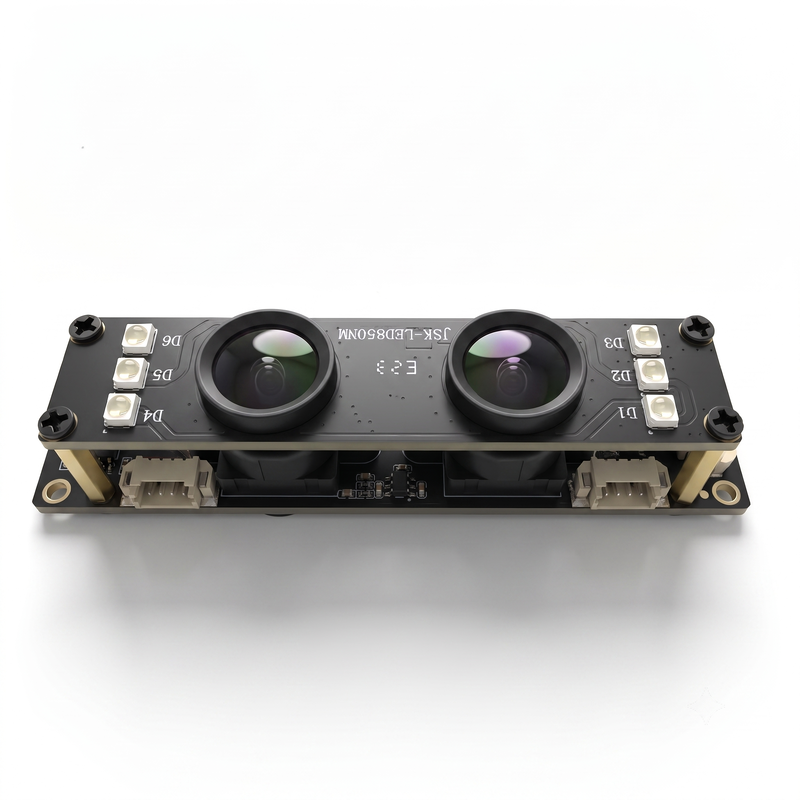

HK2M-H172.3 2-Megapixel Outdoor Wide Dynamic Backlight-Resistant Dual-Eye Camera Module

HK2M-H172.3 Dual-Eye Camera Module Features:

Dual USB 2.0 Interfaces
Suitable for Face Feature Detection
Plug and Play
Dual 1080P High-Definition Cameras
Frame Rate Up to 30 FPS, CE Ensures Maximum Image Clarity and Detail
Suitable for Various Industrial Control, Intelligent Self-Service Terminals, Face Recognition Access Control, Security Equipment, and Other Scenarios
Large Aperture/Long Depth of Field, Focal Length Options Available
Wide Dynamic Color + Infrared Dual Imaging
Stable Image
Backlight Compensation
USB Data Connection Interface

HK2M-H172.3 Dual-Eye Camera Module Parameter:

Connect the interface:	2* USB-5pin-1.0mm
Interface speed:	480mb/s
Maximum resolution and frame rate:	1920* 1080(30ps)
Other optional resolution ratio:	640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps)
Support format:	YUV/ MJPG
Max Dynamic range:	105 dB/ TBD dB
F/No:	2.4
EFL:	2.5mm
FOV:	95°
Lens Construction:	2G4P+IR
Power Consumption:	Regular work: 2W
Operating systemrequest:	WinXP, Win7, Linux or Vista and android4.1

5MP USB Camera Module 0 5MP USB Camera Module 1 5MP USB Camera Module 2
