2MP MIPI Camera Module

Name: 2MP MIPI Camera Module
Brand: Shenzhen Jupin Technology Co., Ltd.
SKU: JP-ZI16-90 REV2.0
Availability: InStock

Brand Name:	Shi Zun
Model Number:	JP-ZI16-90 REV2.0
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	10 working days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Photosensitive Chip:

RGB CMOS 1/2.5"/ IR CMOS 1/2.5”

Pixel Size:

2.2μm X 2.2μm

SNR Max:

39 DB

Max Dynamic Range:

110 DB

Minimum Illumination:

0.1Lux At F12

F/No:

2.0

EFL:

3.5mm

FOV:

95°

IR:

650±10nm/ 850±10nm

Lens Construction:

2G4P+IR

Maximum Resolution And Frame Rate:

2592* 1944(30fps)

Other Optional Resolution Ratio:

640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1920*1080(30fps)

Support Format:

YUV / MJPG

USB Power Supply Voltage:

5V±5%

Connect The Interface:

2* USB-5pin-1.0mm

Interface Speed:

480mb/s

Operating Systemrequest:

WinXP, Win7, Linux Or Vista And Android4.1

Power Consumption:

Regular Work: 2W

Storage Temperature:

0°C To 50°C

Working Temperature:

-10°C To+60°

Structure Size:

80mmx 16mmx 18.2mm

Packaging Details:

80mmx 16mmx 18.2mm

Supply Ability:

100+pcs+day

Product Description

HK2M-H212 5-Megapixel High Definition Camera Module Wide Dynamic Range 110 dB

HK2M-H212 Wide Dynamic Range Camera Module Features:

USB 2.0 Interface
5-Megapixel Resolution High Definition Camera
Compact and Exquisite Appearance
5-Megapixel High Definition Imagery for True and Delicate Visuals
Anti-drag, Low Noise, Clearer Imaging
USB 5M Wide Dynamic Range, Effectively Addresses Overexposure from Strong Light and Low Light Conditions
Dual-Eye Live Body Detection Camera
Dual 1/2.5 Large Size SENSORS
With Illumination Light + Infrared Night Vision Light

HK2M-H212 Wide Dynamic Range Camera Module Parameter:

Connect the interface:	2* USB-5pin-1.0mm
Interface speed:	480mb/s
Maximum resolution and frame rate:	2592* 1944(30fps)
Other optional resolution ratio:	640* 480 (30fps), 800* 600(30fps), 1280* 720(30fps), 1920* 1080(30ps)
Support format:	YUV/ MJPG
Max Dynamic range:	110 dB
F/No:	2.0
EFL:	3.5mm
FOV:	95°
Lens Construction:	2G4P+IR
Power Consumption:	Regular work: 2W
Operating systemrequest:	WinXP, Win7, Linux or Vista and android4.1

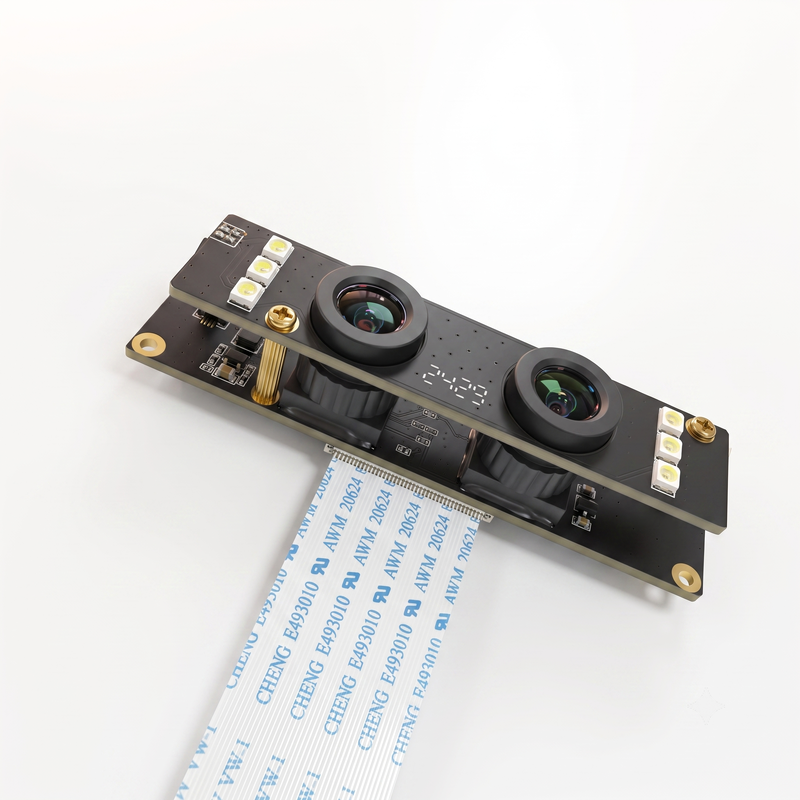

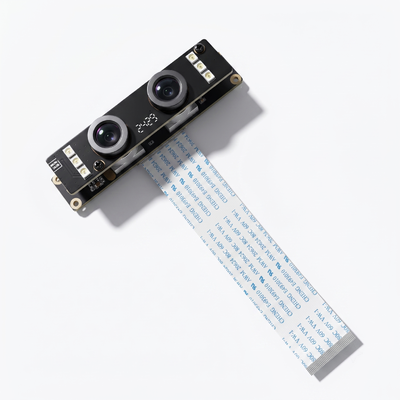

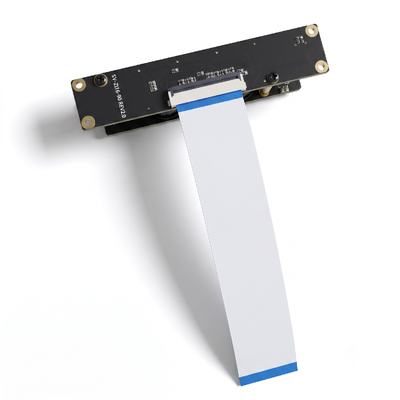

2MP MIPI Camera Module 0 2MP MIPI Camera Module 1 2MP MIPI Camera Module 2
