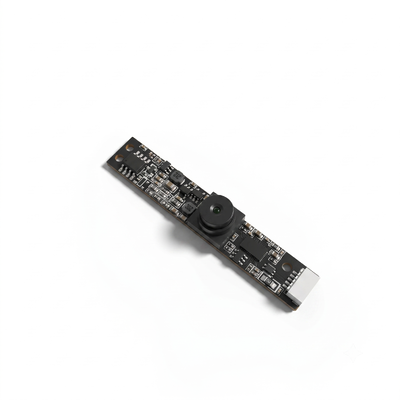

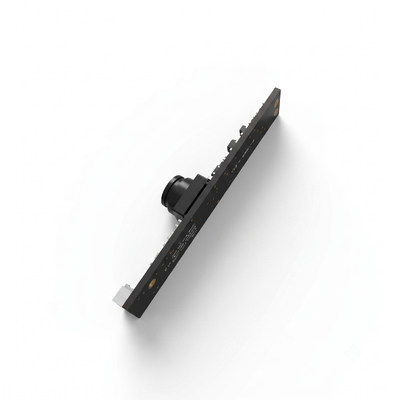

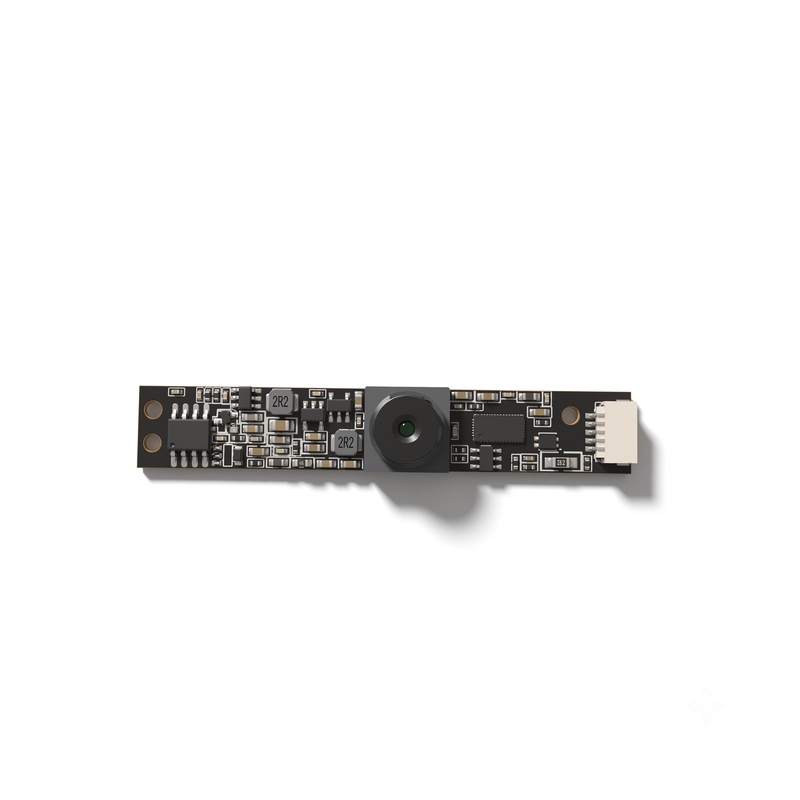

Monocular 2MP WDR Camera Module JP-1080P-H-V7.0

Product Overview

     The JP-1080P-H-V7.0 Monocular 2MP WDR Camera Module is a high-performance USB camera solution featuring a 2MP CMOS sensor with 1080P resolution and 105dB Wide Dynamic Range. With an ultra-compact 60mm × 10mm × 9.3mm design and extremely low power consumption of just 70mA @ 720p/15fps, this module is optimized for space-constrained and power-sensitive applications. The 73.9° field of view with F/2.1 aperture delivers excellent image quality in both bright and low-light conditions, while UVC compliance ensures plug-and-play connectivity with Windows and Android systems via USB 2.0. The JP-1080P-H-V7.0 is ideal for video conferencing, access control, kiosks, and embedded vision systems where small size and low power are critical.

Key Advantages

• Ultra-Low Power Consumption: Operating at just 70mA @ 720p/15fps and 5mA standby — the most power-efficient module in its class, ideal for battery-powered and USB-powered devices.

• Ultra-Compact Design: Measuring just 60mm × 10mm × 9.3mm with ±0.2mm tolerance — one of the slimmest 1080P WDR modules available, fitting easily into the tightest enclosures.

• High Frame Rate at 720p: Supports up to 60fps @ 720p capture — delivering ultra-smooth video for fast-moving scenes and fluid user experiences.

• Superior Low-Light Performance: F/2.1 aperture captures significantly more light than standard F/2.4 or F/2.5 lenses — delivering clear images in dimly lit environments where other cameras fail.

• 105dB Wide Dynamic Range: Delivers clear images in high-contrast scenes — from bright backlight to dim interiors — ensuring usable footage in challenging lighting conditions.

• UVC Plug-and-Play Compliance: Driver-free connectivity with Windows and Android via USB 2.0 — no complex integration, faster time-to-market.

Why Choose This Module?

• The Slimmest 1080P WDR Module Available: At just 9.3mm thick (including lens and PCB), the JP-1080P-H-V7.0 fits into product designs where standard camera modules simply won't go — ultra-slim monitors, thin kiosks, and compact embedded devices.

• Power Efficiency That Extends Battery Life: Drawing just 70mA during operation and 5mA in standby, this module consumes a fraction of the power of standard camera modules (typically 150-200mA). For battery-powered devices, this translates to significantly longer runtime and smaller battery requirements.

• F/2.1 Aperture — The Low-Light Advantage: While most modules use F/2.4 or F/2.5 lenses, the JP-1080P-H-V7.0's F/2.1 aperture captures over 30% more light — delivering usable images in conditions where other cameras produce noisy, dark footage.

• 60fps @ 720p for Fluid Video: Smooth, high-frame-rate video is essential for user-facing applications where lag and stutter create a poor experience. The JP-1080P-H-V7.0 delivers 60fps @ 720p — twice the frame rate of standard modules.

• Optimized for Integrated Design: The combination of ultra-slim form factor, low power consumption, and wide dynamic range makes this module the ideal choice for integrated camera applications — from video doorbells and smart displays to notebook cameras and embedded vision systems.
