Iris Recognition Module JP16M

Product Overview

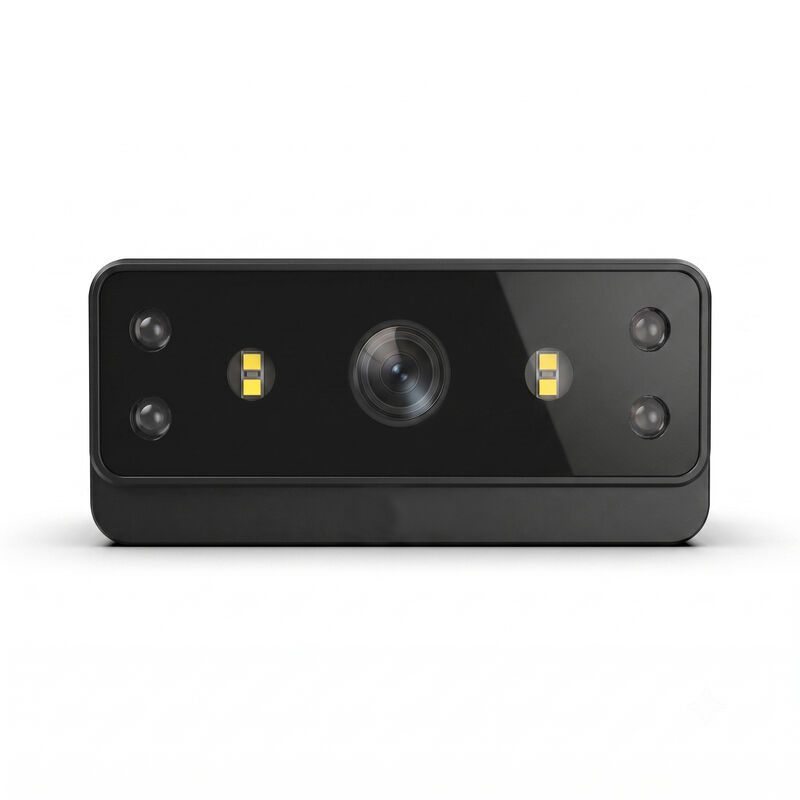

     The JP16M Iris Recognition Module is a high-performance iris acquisition solution built on the StarChip SSC338Q hardware platform. Featuring a 5MP high-definition iris camera with auto-focus and 810nm infrared illumination, this module captures high-quality iris images at a comfortable working distance of 40cm to 80cm, enabling rapid acquisition within 1 second. The integrated algorithms deliver exceptional accuracy with a False Acceptance Rate (FAR) as low as 1 in 1,000,000 — meeting the stringent security requirements of government facilities, financial institutions, coal mining operations, correctional facilities, and other high-security environments. The module integrates built-in eye detection and cropping algorithms, connecting to host systems via standard UVC output for driver-free plug-and-play compatibility with PCs and tablets. With onboard 256MB DDR and 32MB Nor Flash, the JP16M supports multiple iris image formats (K1, K2, K3, K7) and delivers uncompromising biometric security for the most demanding applications.

Key Advantages

• Ultra-Low False Acceptance Rate: Achieves a FAR as low as 1 in 1,000,000 — surpassing the standard 0.001% (1 in 100,000) requirement for high-security applications. This exceptional accuracy ensures that unauthorized access is virtually impossible, meeting the most stringent government and financial security standards.

• High-Speed Acquisition with Auto-Focus: Captures iris images in under 1 second at a working distance of 40cm to 80cm — minimizing user wait time and enabling high-throughput verification in busy environments like airport security, banking halls, and facility entry points.

• Exceptional Image Quality: Delivers iris images with sampling resolution of no less than 20 pixel/mm (exceeding the standard 16 pixel/mm), iris radius of no less than 100 pixels, and 8-bit grayscale depth with 256-level quantization — ensuring the highest possible image quality for reliable recognition.

• Onboard Processing and Driver-Free Connectivity: Integrated eye detection and cropping algorithms offload processing from the host device, while UVC connectivity ensures plug-and-play compatibility with Windows, Linux, and Android systems — no complex driver development required.

• Multiple Image Format Support: Supports K1, K2, K3, and K7 iris image formats with 640×480 resolution or automatic format matching — ensuring compatibility with various iris recognition systems and algorithms.

• Safe and Efficient Infrared Illumination: 810nm LED illumination at <1mW/cm² ensures user safety while providing reliable image capture in varying light conditions, with power consumption of just 5W max.

Why Choose This Module?

• 1 in 1,000,000 FAR — Security You Can Trust: In high-security environments, even a 0.001% FAR (1 in 100,000) may not be sufficient. The JP16M delivers a FAR of 1 in 1,000,000 — 10× better than the industry standard. This is the level of accuracy required for government facilities, financial institutions, and other security-critical applications where the cost of a false match is simply too high.

• Built for the Most Demanding Environments: From coal mines and correctional facilities to government buildings and banking halls, the JP16M is engineered for environments where security is non-negotiable. The 0°C to 50°C operating temperature range and robust design ensure reliable performance across diverse deployment scenarios.

• Superior Image Quality for Reliable Recognition: With 20 pixel/mm sampling resolution (vs. the standard 16 pixel/mm), 100+ pixel iris radius, and 256-level grayscale quantization, the JP16M captures more iris detail than standard modules — directly translating to better recognition accuracy and lower rejection rates.

• Universal Format Compatibility: The JP16M supports K1, K2, K3, and K7 image formats — making it compatible with most iris recognition algorithms on the market. Whether you're using a proprietary system or an industry-standard solution, the JP16M integrates seamlessly.

• Rapid Integration, Proven Platform: Built on the StarChip SSC338Q platform with UVC standard connectivity, the JP16M integrates quickly with existing systems. Onboard processing handles eye detection and cropping, so you can focus on application development rather than hardware integration — accelerating your product's time-to-market.
