Dual-Lens 2MP Small-Lens WDR Camera Module JP-S8130

Product Overview

     The Dual-Lens 2MP Small-Lens WDR Camera Module JP-S8130 is a compact dual-sensor imaging solution featuring 1/2.7" industrial-grade CMOS sensors for both monochrome and HDR channels, each delivering 1920 × 1080 resolution. Engineered with infrared fill-light technology, this module captures both near-infrared and visible light simultaneously — enabling effective liveness detection by leveraging the principle that screens cannot reproduce IR images, while paper-based spoofing attempts are identified through texture and color analysis. This dual-channel approach effectively prevents photo, video, and other spoofing attacks with greater accuracy and faster processing than single-lens alternatives. With 105dB HDR dynamic range, 0.01lux minimum illumination, and M8 lens mount supporting 3.6mm, 4.7mm, and 6mm focal lengths, the JP-S8130 is the ideal choice for facial recognition terminals, access control systems, and biometric authentication applications.

Key Advantages

• Effective Spoofing Prevention: Infrared + visible light dual-camera architecture ensures screen-based attacks cannot reproduce IR images, while paper-based spoofing is identified through IR texture and color analysis — delivering significantly higher liveness detection accuracy than single-lens solutions.

• Industrial-Grade 1/2.7" CMOS Sensors: Features Aptina CMOS sensors with 3.0μm × 3.0μm pixel size for both B/W and HDR channels — delivering consistent, reliable imaging across diverse operating environments.

• 105dB Wide Dynamic Range: HDR sensor provides 105dB dynamic range for clear imaging in high-contrast scenes — from bright backlight to dim interiors.

• High SNR for Clean Images: B/W sensor achieves ≥36dB SNR while HDR sensor delivers ≥41dB SNR — ensuring low-noise images even in challenging lighting conditions.

• Flexible Lens Options: M8 mount supports 3.6mm, 4.7mm, and 6mm focal lengths — adapt field of view to specific application requirements.

• UVC Compliance: Standard USB interface with 480Mb/s transfer rate — plug-and-play connectivity with Windows, Linux, Mac, and Android, no driver development required.

Why Choose This Module?

• Industry-Leading Liveness Detection: The JP-S8130's dual-sensor architecture provides a fundamental security advantage over single-lens modules. Screens cannot reproduce IR images, effectively blocking all screen-based spoofing attempts. Paper-based attacks are defeated through advanced texture and color analysis of IR images. This multi-layered approach delivers unmatched protection against presentation attacks — essential for high-security applications requiring real-person verification.

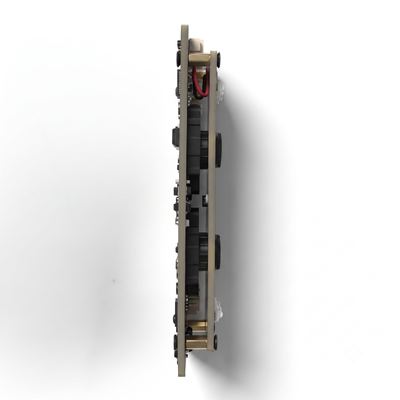

• Compact Design Without Compromise: At just 80mm × 16mm × 10mm with ±0.2mm tolerance, the JP-S8130 delivers full dual-sensor functionality in a remarkably compact form factor — fitting easily into space-constrained access control terminals, facial recognition kiosks, and embedded authentication devices.

• Industrial-Grade Reliability: Built with 1/2.7" Aptina industrial-grade CMOS sensors and engineered for -10°C to 65°C operation, the JP-S8130 maintains consistent performance in demanding environments — from outdoor entry points to factory floor installations.

• Faster Processing, Higher Accuracy: The dual-sensor architecture enables simultaneous near-infrared and visible-light capture, allowing faster processing and more accurate liveness detection than sequential single-sensor approaches. Users experience quicker recognition without compromising security.

• Flexible Integration Options: M8 mount supports multiple focal lengths, UVC compliance ensures universal OS compatibility, and USB interface simplifies connectivity — the JP-S8130 integrates seamlessly into existing product designs with minimal engineering effort.
