JP-C2AMU00 Card Reader Module



Product Overview

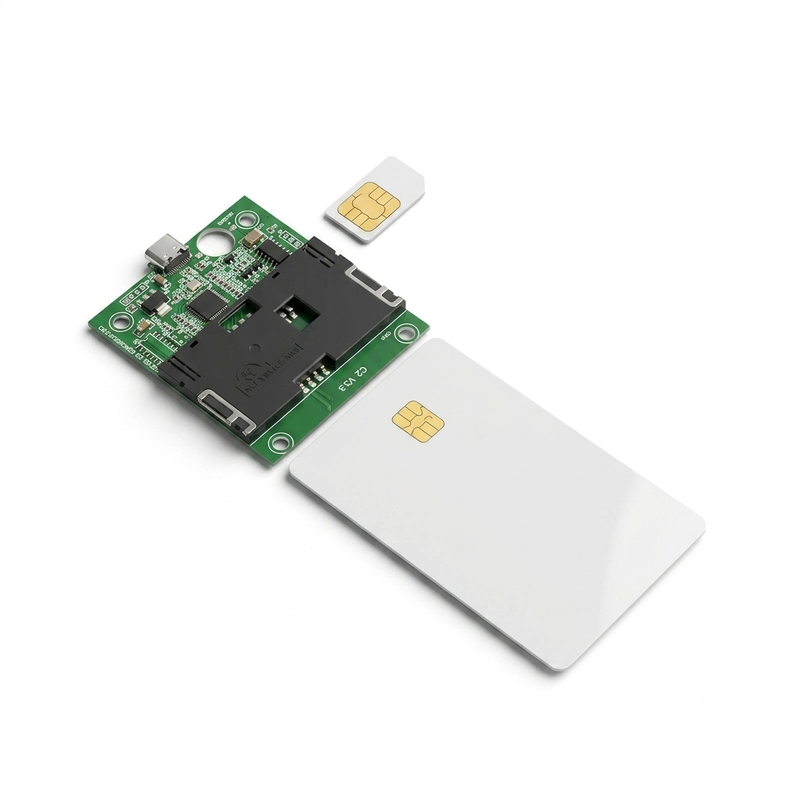

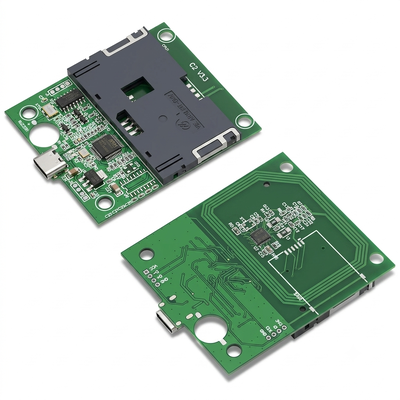

     The JP-C2AMU00 Card Reader Module is a versatile contact and contactless dual‑interface reader module supporting ISO14443A contactless cards and ISO7816 contact cards in a single compact unit. It supports a wide range of card types — including NXP S50/S70, UltraLight, Ntag, FM1208, CPU cards (T=0/T=1), AT24C series memory cards, SLE series logic encryption cards, and common logical encryption IC cards. The module features driver‑free USB HID connectivity via a Type‑C interface, with optional SAM card slot for secure key storage and authentication. Designed for reliability, it operates from -20°C to 75°C with LED status indication and optional buzzer, and is compatible with Windows, Linux, Unix, Vista, and Android systems. With anti‑magnetic interference and vibration resistance, and a card socket lifespan of 100,000 cycles, the JP-C2AMU00 is the ideal choice for identity verification terminals, e‑government applications, financial payment systems, healthcare access, and logical encryption card management.

Key Advantages

• Dual‑Interface Reader (Contact + Contactless): Supports both ISO14443A contactless cards and ISO7816 contact cards in a single module — eliminating the need for separate readers and simplifying terminal design for applications requiring both card types.

• Comprehensive Card Type Support: Compatible with NXP S50/S70, FM1108, UltraLight, Ntag, CPU cards (T=0/T=1), FM1208, AT24C series memory cards, SLE series logic encryption cards, and common logical encryption IC cards — covering virtually all card types used in access control, payment, identity, and e‑government applications.

• Driver‑Free USB HID Connectivity: USB HID interface with Type‑C connector supports plug‑and‑play connectivity without driver installation — significantly reducing deployment time and simplifying integration across Windows, Linux, Unix, Vista, and Android systems.

• Optional SAM Card Slot: Supports 1× GSM11.11 standard SAM card (optional) — providing hardware‑level secure key storage and authentication for government, financial, and high‑security applications requiring enhanced cryptographic protection.

• Industrial‑Grade Reliability: -20°C to 75°C operating temperature, 5%–95% RH humidity tolerance, 19 Oersted anti‑magnetic interference, and vibration resistance (0.35mm amplitude, 10‑55Hz, tri‑axial sweep) — ensuring reliable operation in demanding environments.

• Long‑Life Card Socket: Rated for 100,000 insertion cycles — ensuring durability in high‑traffic applications such as time attendance, access control, and payment terminals.

• Status Indicators and Optional Buzzer: Built‑in LED status indicator with optional controllable buzzer — providing immediate visual and audible feedback for card detection, read status, and system alerts.

• Compact Form Factor: Measures 64mm × 56mm — fitting easily into space‑constrained terminals and embedded systems.

Why Choose This Module?

• One Module for Contact and Contactless Cards: Many applications require reading both contact cards (such as logical encryption cards, CPU cards, or memory cards) and contactless cards (such as NFC tags and ISO14443A cards). The JP-C2AMU00 integrates both interfaces in a single compact module, eliminating the need for separate hardware and reducing BOM cost. This is especially valuable in e‑government, healthcare, and financial applications where both card types are in use across the same user population.

• SAM Card Slot for High‑Security Applications: The optional SAM card slot enables hardware‑level secure key storage and cryptographic processing — essential for government identity systems, financial payment terminals, and enterprise PKI applications where private keys must never leave the secure module. This provides a level of security that software‑only solutions cannot match, meeting the compliance requirements of high‑security deployments.

• Driver‑Free USB HID with Type‑C Connector: The driver‑free USB HID interface eliminates the need for OS‑specific driver installation, making deployment quick and painless across Windows, Linux, Unix, Vista, and Android. The Type‑C connector ensures compatibility with modern devices and provides robust, reversible connectivity for industrial and consumer applications alike.

• Comprehensive Card Support in a Single Module: From NXP S50/S70 and FM1208 to AT24C series memory cards, SLE series logic encryption cards, and T=0/T=1 CPU cards, the JP-C2AMU00 covers virtually all card types used in access control, identity verification, payment, and e‑government applications. This eliminates the need to stock multiple reader SKUs for different card types, simplifying inventory and deployment.

• Built for Harsh Environments: With -20°C to 75°C operating range, anti‑magnetic interference up to 19 Oersted, vibration resistance, and a card socket rated for 100,000 cycles, the JP-C2AMU00 is engineered for continuous, reliable operation in demanding environments — from outdoor access control to industrial facilities where vibration, temperature extremes, and electromagnetic interference are common challenges.
