JP-C3DMP00 Card Reader Module



Product Overview

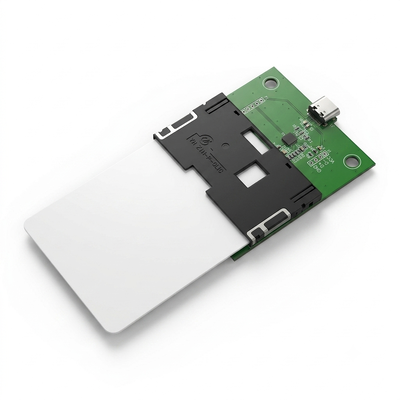

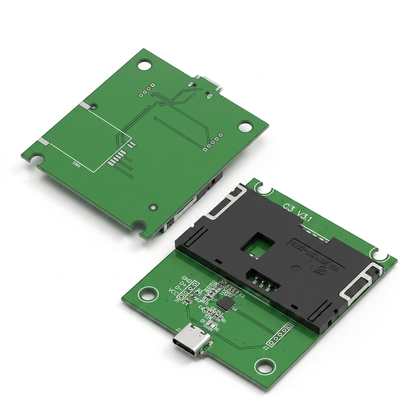

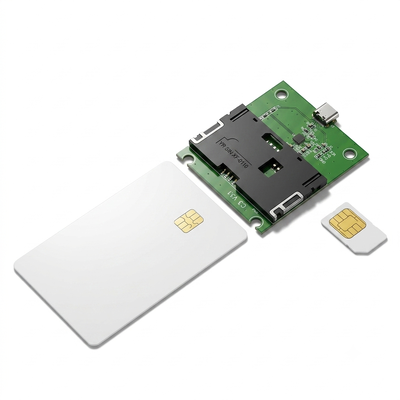

     The JP-C3DMP00 Card Reader Module is a contact-based smart card reader module supporting ISO7816-1-2-3 protocols and CPU cards with T=0 and T=1 protocols. Featuring a standard insert-in type card socket (chip side down), this module provides reliable, high-speed card reading with a typical read time of 100ms. The module is EMV Level 1 certified and Microsoft PC/SC certified, ensuring compliance with the highest industry standards for payment and secure access applications. It connects via USB2.0 with PC/SC interface through a Type-C connector, supporting Windows 2000, CE, XP, Linux, and Vista32 operating systems. Equipped with a dual-color LED status indicator, the JP-C3DMP00 offers comprehensive development support with libraries for Visual Basic, Delphi, Power Builder, Visual FoxPro, Visual C++, and C++ Builder. Housed in a 64mm × 56mm form factor with industrial-grade -20°C to 75°C operation and 5% to 95% RH humidity tolerance, the JP-C3DMP00 is the ideal choice for secure identity verification, e-government applications, financial payment terminals, and healthcare access systems.

Key Advantages

• EMV Level 1 and Microsoft PC/SC Certified: Fully certified to EMV Level 1 and Microsoft PC/SC standards — ensuring compliance with global payment and secure access requirements for financial, government, and enterprise applications.

• High-Speed Card Reading: Delivers 100ms typical read time — enabling fast, responsive user experiences in high-throughput environments such as payment terminals, time attendance, and access control.

• Comprehensive CPU Card Support: Supports CPU cards with T=0 and T=1 protocols — covering the full range of secure smart cards used in banking, identity, healthcare, and government applications.

• Wide OS Compatibility: Compatible with Windows 2000, CE, XP, Linux, and Vista32 — ensuring seamless integration across diverse operating system environments.

• Developer-Friendly with Multiple Language Support: Includes development libraries for Visual Basic, Delphi, Power Builder, Visual FoxPro, Visual C++, and C++ Builder — enabling rapid application development and reducing integration time.

• Industrial-Grade Reliability: -20°C to 75°C operating temperature and 5%–95% RH humidity tolerance — ensuring reliable operation in demanding indoor and outdoor environments.

• Dual-Color LED Status Indicator: Built-in dual-color LED provides immediate visual feedback for card insertion, read status, and system alerts — simplifying user interaction and troubleshooting.

• Compact Form Factor: Measures 64mm × 56mm — fitting easily into space-constrained terminals and embedded systems.

• Type-C Interface: Modern Type-C connector provides robust, reversible connectivity with USB2.0 PC/SC interface.

Why Choose This Module?

• EMV Level 1 and Microsoft PC/SC Certification — Built for Mission-Critical Applications: EMV Level 1 certification ensures the module meets the rigorous electrical and mechanical requirements for payment terminals, while Microsoft PC/SC certification guarantees seamless integration with Windows-based systems. These certifications are non-negotiable for financial, government, and enterprise applications where security and compliance are paramount. The JP-C3DMP00 delivers both, enabling OEMs to deploy secure smart card reading with reduced certification risk and faster time-to-market.

• 100ms Read Time for High-Throughput Environments: In busy payment terminals, access control points, and time attendance systems, every millisecond matters. The JP-C3DMP00's 100ms read time ensures users don't experience frustrating delays, enabling smooth transaction flow and reducing queue buildup during peak hours.

• Broad CPU Card Support with T=0 and T=1 Protocols: CPU cards are the standard for secure applications — banking cards, government IDs, healthcare smart cards, and enterprise PKI credentials. Supporting both T=0 (character-oriented) and T=1 (block-oriented) protocols ensures compatibility with virtually all CPU cards in use today, making the JP-C3DMP00 a versatile choice for diverse secure access environments.

• Extensive Development Support Accelerates Time-to-Market: With development libraries provided for Visual Basic, Delphi, Power Builder, Visual FoxPro, Visual C++, and C++ Builder, developers can integrate smart card reading functionality quickly without writing low-level protocol code. This reduces development effort, minimizes bugs, and accelerates product launch timelines for OEMs building identity verification and payment solutions.

• Industrial-Grade Design for Demanding Deployments: With -20°C to 75°C operating range and 5%–95% RH humidity tolerance, the JP-C3DMP00 is engineered for continuous operation in environments where temperature and humidity fluctuate — from outdoor access control to unheated industrial facilities. The card socket's robust design ensures reliable contact with each insertion, while the dual-color LED provides immediate, intuitive feedback to end users.
