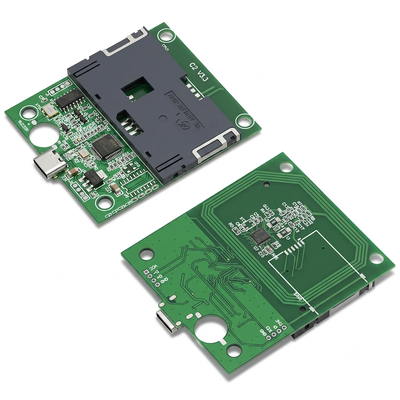

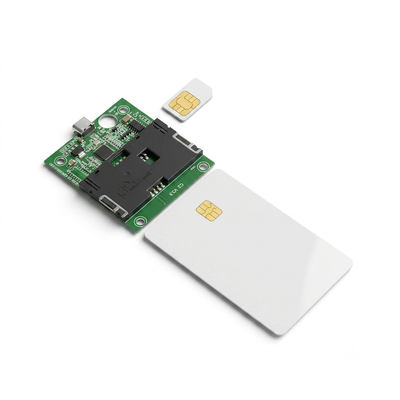

C2-AMU-00 Dual-Interface 2-in-1 IC Card Reader Module ISO14443A Protocol Reader ISO7816 Protocol Reader

Card Reader Module Description:
The default configuration does not include a SIM card slot. If you require a SIM card slot, please contact customer service.

The C3-DMP-00 is a compact, cost-effective smart card reader module that supports CPU cards (compliant with T=0 and T=1 protocols), making it ideal for common storage cards in the market. It supports all smart cards compliant with ISO 7816-1/2/3 standards. Certified by EMV Level 1 and Microsoft PC/SC, it is compatible with major computer platforms. This single-chip design smart card reader is one of the most cost-effective products in its class, widely used in banking, e-commerce, information security, computer security, electronic identification, and other smart card application systems.

        Supported Card Types:

• Smart cards compliant with ISO 7816-1/2/3 standards and T=0, T=1 protocols.
• Compatible products developed by domestic and international chip manufacturers for the above types.

        Supported Function Interfaces:

• Supports 32-bit development platforms under Windows 2000 SP4/XP SP2/Vista 32-bit operating systems, such as Visual Basic,  Power Builder, Visual FoxPro, Visual C++, C++ Builder, and higher versions of these platforms.
• C language development under Linux.
• WinCE5.0 development platform.
• Development functions use the smartcard component under Windows for development.

C2-AMU-00 Card Reader Module Features:

1. USB communication interface.
2. Certified by EMV Level 1 and Microsoft PC/SC.
3. Provides drivers and examples for multiple platforms.
4. Data communication is transmitted securely using encryption, and the product software design adopts a microkernel structure.

C2-AMU-00 Technical Specifications:
