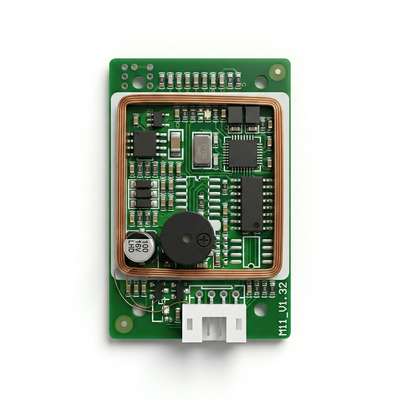

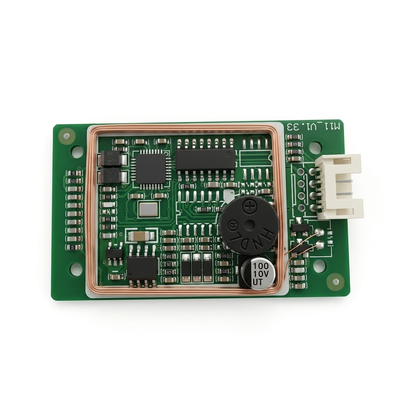

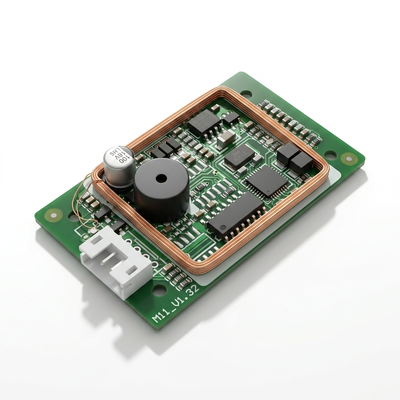

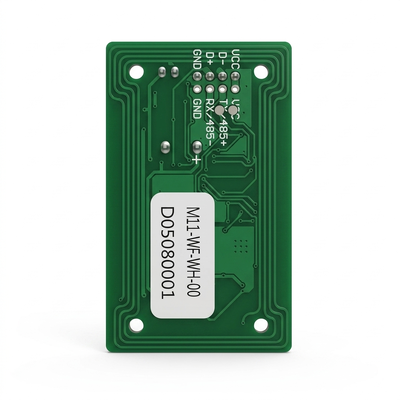

JP-M11-WF-UH-00 Card Reader Module (M11 Series)



Product Overview

     The JP-M11-WF-UH-00 Card Reader Module is a compact multi‑protocol RFID reader module supporting both 13.56MHz (ISO14443A) and 125kHz (EM/TK series) card standards in a single integrated package. This module reads IC, ID, CPU, and NFC cards with read distances up to 50mm and read times under 300ms, making it suitable for access control, time attendance, identity verification, and payment applications. Offering five communication interface options — USB, TTL Serial Port, RS232, RS485, and Wiegand — the JP‑M11‑WF‑UH‑00 provides universal connectivity across PC‑based systems, embedded controllers, industrial networks, and legacy access control panels. Featuring an integrated antenna and housed in a compact 30mm × 50mm × 9mm form factor weighing just 2.5g, the module operates from -20°C to 85°C with low power consumption (70mA max) and includes a red LED status indicator (with optional buzzer). Compatible with Windows, Linux, Unix, Android, HarmonyOS, and embedded systems, the JP‑M11‑WF‑UH‑00 is the ideal choice for OEMs and system integrators building versatile, compact access control terminals, kiosks, and multi‑card identification systems.

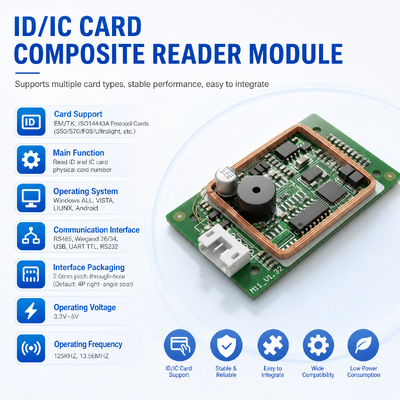

Key Advantages

• Multi‑Protocol Card Support: Reads 13.56MHz (ISO14443A IC, CPU, NFC) and 125kHz (EM/TK ID) cards in a single module — eliminating the need for separate readers and simplifying system design across mixed‑card environments.

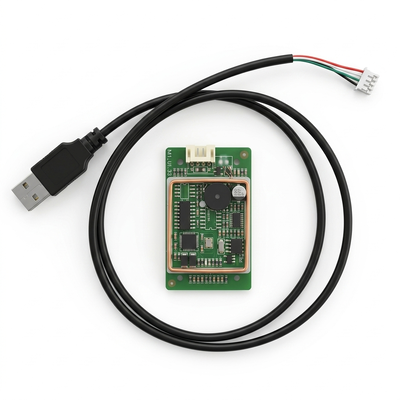

• Five Interface Options for Universal Connectivity: Supports USB, TTL Serial Port, RS232, RS485, and Wiegand — enabling seamless integration with PCs, embedded systems, industrial networks, and legacy Wiegand‑based access control panels.

• Integrated Antenna: Built‑in antenna eliminates the need for external antenna design, tuning, or matching circuits — reducing design time, PCB area, and engineering effort.

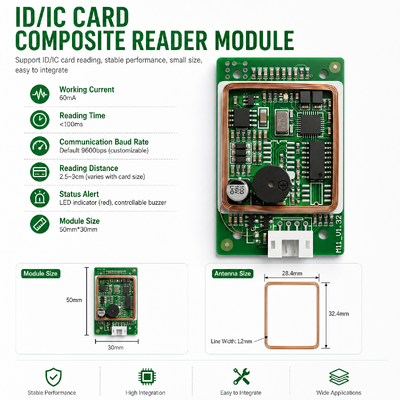

• Ultra‑Lightweight and Compact: Weighs just 2.5g with dimensions of 30mm × 50mm × 9mm — ideal for space‑constrained and weight‑sensitive applications such as handheld readers, portable devices, and compact terminals.

• Wide Operating Temperature Range: -20°C to 85°C with 5%–95% humidity tolerance — suitable for outdoor access control, industrial environments, and extreme‑climate deployments.

• Low Power Consumption: Maximum operating current of just 70mA — ideal for power‑sensitive installations, battery‑backed systems, and large‑scale deployments.

• Broad OS Compatibility: Supports Windows98, XP, Win7, 8, ME, 2003, VISTA, Linux, UNIX, Android, HarmonyOS, and embedded systems — ensuring seamless integration across diverse platforms.

• Status Indicator with Optional Buzzer: Built‑in red LED status indicator with optional buzzer — providing visual and audible feedback for card detection, read status, and system alerts.

Why Choose This Module?

• One Module for All Card Types: Access control environments often have mixed card populations — new 13.56MHz IC/NFC cards, legacy 125kHz ID cards, and CPU cards for high‑security applications. The JP‑M11‑WF‑UH‑00 reads them all, eliminating the need for separate 13.56MHz and 125kHz readers. This simplifies system design, reduces hardware costs, and streamlines deployment across mixed‑card environments.

• Five Interfaces in One Module: With USB, TTL, RS232, RS485, and Wiegand interfaces, the JP‑M11‑WF‑UH‑00 connects to virtually any host system. This interface flexibility ensures the same module works across different generations of host systems — from new USB‑connected terminals to legacy Wiegand‑based access control panels — reducing inventory complexity and enabling component standardization across product lines.

• Integrated Antenna — No External Design Required: The built‑in antenna eliminates the need for external antenna design, tuning, and matching circuits — common challenges with raw reader chips. This dramatically reduces design complexity, PCB area, and engineering time, ensuring consistent read performance across production batches.

• Ultra‑Compact and Lightweight for Portable Applications: At just 2.5g and 30mm × 50mm × 9mm, the JP‑M11‑WF‑UH‑00 fits into the most space‑constrained and weight‑sensitive devices — handheld readers, wearable devices, portable terminals, and slim kiosks. This enables industrial designers to create compact, modern products without sacrificing read performance or interface flexibility.

• Built for Extreme Environments: With -20°C to 85°C operating temperature and 5%–95% humidity tolerance, the JP‑M11‑WF‑UH‑00 is engineered for continuous, reliable operation in demanding environments — outdoor access control in freezing climates, hot industrial facilities, and high‑humidity installations where standard 0°C to 50°C modules would fail. The low power consumption (70mA max) makes it ideal for battery‑backed and power‑sensitive deployments, reducing maintenance and extending product lifespan.
