| Model Number: | 022 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Key highlights

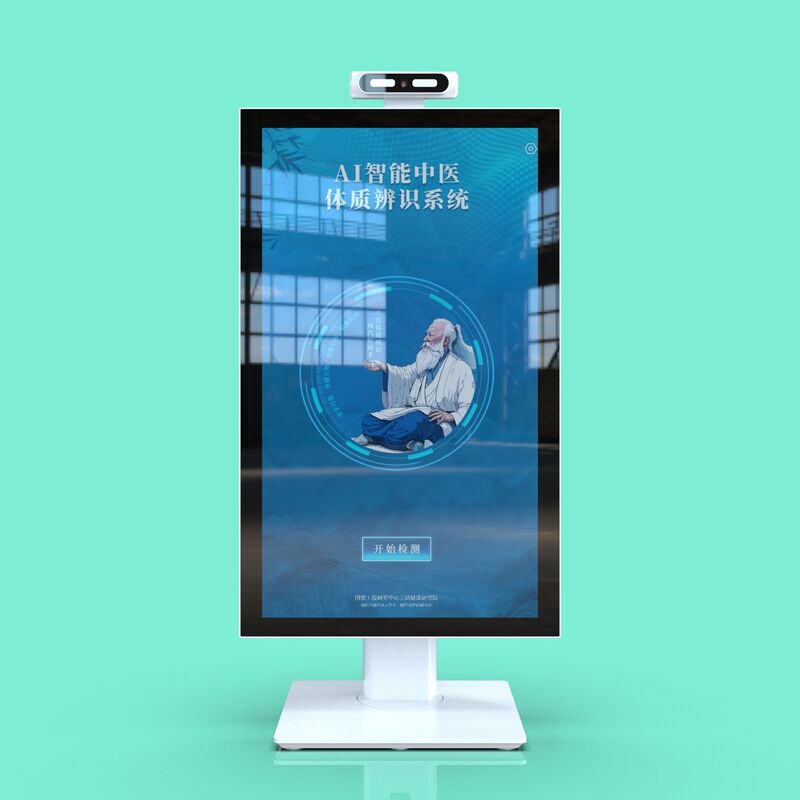

21.5-inch full HD vertical screen, wide viewing angle and intuitive interaction
Equipped with a 21.5-inch IPS touch screen with a resolution of 1080×1920. The vertical screen ratio is more in line with the visual habits of human-computer interaction in the attendance scenario. The large screen brings: clear visibility of attendance results, personnel photos, and department information; during standby, it supports video and image split-screen playback, allowing for the rotation of enterprise promotional posters and notice announcements, replacing the old model of messy paper poster张贴. The screen brightness can reach 500cd/m², and it remains clear even in strong light. It supports ten-point capacitive touch, with sensitive response and smooth operation.

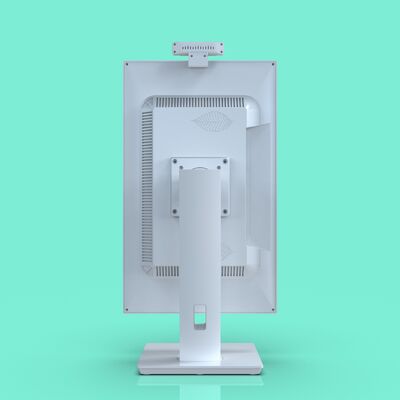

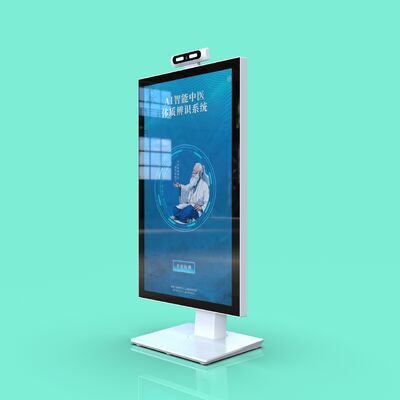

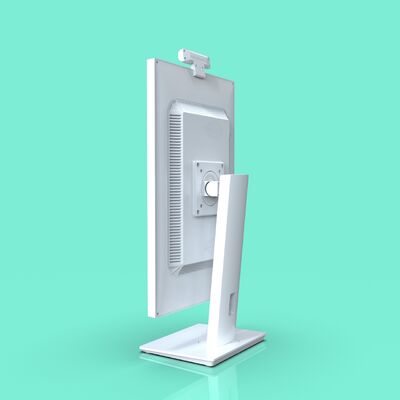

Desktop design, stable and elegant
Adopting a desktop/tablet integrated cabinet design, the structure is stable, suitable for placement in prominent positions such as the front desk, lobby, and office, combining technological sense with a sense of stability, and being thin and beautiful.
Open platform, flexible connection
Equipped with the Android operating system, with open API/SDK interfaces, it can quickly connect to enterprise attendance systems, OA platforms, etc., supporting the synchronization of personnel organizational structure and automatic upload of attendance data. Supports continuous transmission even in the absence of a network, and automatically synchronizes offline records after network recovery, ensuring data does not get lost.
Applicable scenarios
Enterprise lobby attendance control, office access control, factory workshop entry management, campus attendance registration, exhibition hall visitor registration.
| essential parameter | operating system | Android 14 |
| function |
RK-3576S CPU: Integrates quad-core Cortex-A72 and quad-core Cortex-A53 architectures, with a maximum clock speed of up to 2.2 GHz; GPU: ARM Mali-G52 MC3, supporting OpenGL ES 3.2/2.0, Vulkan 1.1, OpenCL 2.0, and a dedicated 2D hardware engine; NPU: 6 TOPS AI computing performance, supporting mixed-precision operations in INT4/INT8/INT16/FP16/BF16/TF32 |
|
| configure | 4G RAM+64G ROM | |
| LCD screen size | 21.5 inches | |
| screen resolution | 1920*1080 | |
| Viewing angle | Full-view IPS LCD screen | |
| luminance | 500 cd/m², ultra-long service life, stable performance, and capable of uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each point capable of withstanding over 50 million touches. | |
| camera | 1200W high-definition pixel, fixed focal length of 45 cm | |
| Wifi | support | |
| network | Supports 10/100/1000M adaptive Ethernet | |
| microphone | support | |
| Speaker | 8Ω/3W*2 | |
| Fill light | White LED light | |
| operational parameter | Operating temperature: -20 °C to 70 °C; Operating humidity: 0%–95% (no condensation) | |
| outer joint | 2 USB ports (including 1 OTG port), 2 RJ45 ports, 1 x 12V DC port, 1 HDMI port, 1 headset port, 1 TF card slot | |
| Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant | |
| Process Technology | ABS+PC | |
| way to install | table model | |
| pigment | White cover plate + white chassis |
Video
|
|
| Model Number: | 022 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 642mm × 316mm × 36mm |
| Payment Terms: | T/T |
Key highlights
21.5-inch full HD vertical screen, wide viewing angle and intuitive interaction
Equipped with a 21.5-inch IPS touch screen with a resolution of 1080×1920. The vertical screen ratio is more in line with the visual habits of human-computer interaction in the attendance scenario. The large screen brings: clear visibility of attendance results, personnel photos, and department information; during standby, it supports video and image split-screen playback, allowing for the rotation of enterprise promotional posters and notice announcements, replacing the old model of messy paper poster张贴. The screen brightness can reach 500cd/m², and it remains clear even in strong light. It supports ten-point capacitive touch, with sensitive response and smooth operation.
Desktop design, stable and elegant
Adopting a desktop/tablet integrated cabinet design, the structure is stable, suitable for placement in prominent positions such as the front desk, lobby, and office, combining technological sense with a sense of stability, and being thin and beautiful.
Open platform, flexible connection
Equipped with the Android operating system, with open API/SDK interfaces, it can quickly connect to enterprise attendance systems, OA platforms, etc., supporting the synchronization of personnel organizational structure and automatic upload of attendance data. Supports continuous transmission even in the absence of a network, and automatically synchronizes offline records after network recovery, ensuring data does not get lost.
Applicable scenarios
Enterprise lobby attendance control, office access control, factory workshop entry management, campus attendance registration, exhibition hall visitor registration.
| essential parameter | operating system | Android 14 |
| function |
RK-3576S CPU: Integrates quad-core Cortex-A72 and quad-core Cortex-A53 architectures, with a maximum clock speed of up to 2.2 GHz; GPU: ARM Mali-G52 MC3, supporting OpenGL ES 3.2/2.0, Vulkan 1.1, OpenCL 2.0, and a dedicated 2D hardware engine; NPU: 6 TOPS AI computing performance, supporting mixed-precision operations in INT4/INT8/INT16/FP16/BF16/TF32 |
|
| configure | 4G RAM+64G ROM | |
| LCD screen size | 21.5 inches | |
| screen resolution | 1920*1080 | |
| Viewing angle | Full-view IPS LCD screen | |
| luminance | 500 cd/m², ultra-long service life, stable performance, and capable of uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each point capable of withstanding over 50 million touches. | |
| camera | 1200W high-definition pixel, fixed focal length of 45 cm | |
| Wifi | support | |
| network | Supports 10/100/1000M adaptive Ethernet | |
| microphone | support | |
| Speaker | 8Ω/3W*2 | |
| Fill light | White LED light | |
| operational parameter | Operating temperature: -20 °C to 70 °C; Operating humidity: 0%–95% (no condensation) | |
| outer joint | 2 USB ports (including 1 OTG port), 2 RJ45 ports, 1 x 12V DC port, 1 HDMI port, 1 headset port, 1 TF card slot | |
| Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant | |
| Process Technology | ABS+PC | |
| way to install | table model | |
| pigment | White cover plate + white chassis |
