Product Overview:

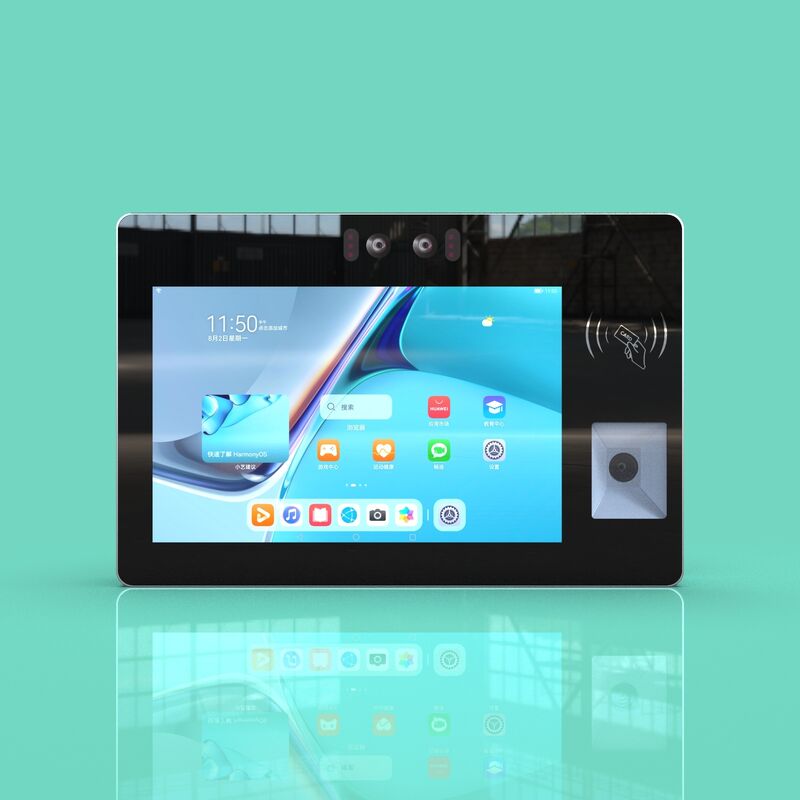

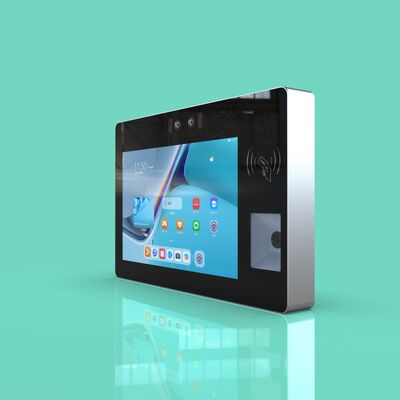

This product is a high-performance 10.1-inch wall-mounted access control and attendance tablet that integrates three mainstream verification methods: facial recognition, IC card swiping, and QR code scanning. The device features a 10.1-inch high-definition touch screen, equipped with deep learning facial recognition algorithm and dual-lens live detection camera. It supports wall-mounted installation and can be widely applied in various indoor and outdoor scenarios such as enterprise attendance, smart parks, campus access control, and community entrances.

Key features and highlights:

1. Three verification methods, flexible adaptation
The device supports all three identification methods, meeting the passage needs of different user groups:

Facial recognition: Equipped with 2 million wide dynamic dual-lens cameras (RGB + IR), supporting infrared live detection, which can effectively defend against photo, video, and 3D mask forgery attacks. Facial recognition speed ≤ 0.2 seconds per person, accuracy ≥ 99%.

IC card swiping: Built-in 13.56 MHz RFID reading module, supporting Mifare IC cards, CPU cards, NFC mobile phone cards, etc., with a swiping distance of 0 - 3 cm, and reading time < 1 second.

QR code scanning: Equipped with QR code recognition module (300,000 pixels high-speed hard decoding), supporting paper and screen QR code scanning, suitable for visitor scanning for passage, temporary authorization, etc.

2. 10.1-inch high-definition screen, excellent interaction experience
Equipped with a 10.1-inch IPS high-definition touch screen, with a resolution of 1280×800. Screen luminance reaches over 500 cd/m², still clear even in strong light. The 10.1-inch large screen makes it easy to understand the attendance results, personnel photos, notifications, or enterprise publicity content.

3. Deep learning algorithm, large storage capacity
Based on deep learning algorithm, it supports local offline 1:N facial comparison. The face database capacity can support up to 50,000 images, card capacity 500,000, and event records over 500,000. Working temperature range -20℃ to 70℃, suitable for cold and hot environments.

4. Professional access control functions and rich interfaces
Access control management: Supports access control period management, multiple verification (such as face + swipe card combination authentication), remote opening functions

Network-off continuous transmission: Event records generated when the device is offline will be automatically uploaded upon reconnection to ensure data does not get lost

Interface configuration: Standard RJ45 Ethernet port, Wi-Fi, optional 4G expansion module. Provides Wiegand input/output, RS485, relay output, USB 2.0, etc. interfaces, enabling seamless connection with various access control controllers

5. Industrial-grade design, wall-mounted installation

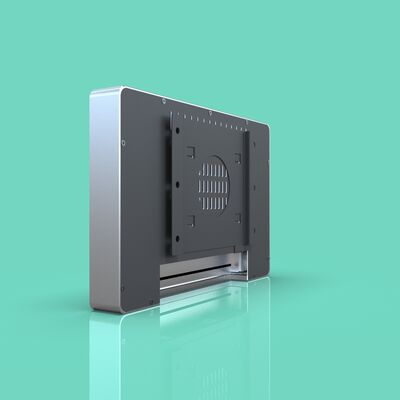

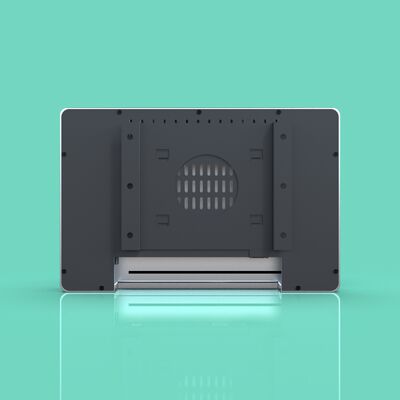

Wall-mounted installation: Standard wall mounting bracket, supports wall-mounted installation, some models compatible with VESA standard brackets

Aluminum alloy body + tempered glass panel: Strong and durable, with strong corrosion resistance

Application scenarios:

Enterprise/office buildings: Employee attendance and management

Smart parks/colleges: Entrance channel control, visitor management

Communities/apartments: Unit access control, visitor scanning for passage

Factories/parks: Employee passage control and attendance statistics
