| Model Number: | 012 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Introduction:
Technical Architecture: Industrial-grade hardware, stable and reliable
Core Processor and Operating System
Equipped with RK3568 quad-core Cortex-A55 processor (2.0GHz), with built-in NPU computing power, running Android 11 operating system, providing rich application ecosystem and secondary development interfaces. Optional embedded Linux version to meet high stability and security requirements.
Dual-camera Module
200,000-pixel wide dynamic dual-camera (RGB + IR), supporting low-light environment face recognition
Recognition Distance: 0.4 meters to 2 meters, suitable for a height range of 1.2 meters to 2.0 meters
Live Detection: Infrared dual-camera anti-counterfeiting, photos, videos, and screen screenshots cannot pass
Capacitive Fingerprint Module
False Rejection Rate (FRR) ≤ 0.1%, False Acceptance Rate (FAR) ≤ 0.001%
Body Craft and Installation Method
Material: Aluminum alloy CNC precision engraving body + tempered glass panel, sturdy and durable

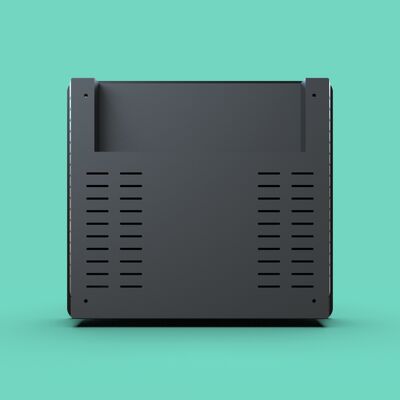

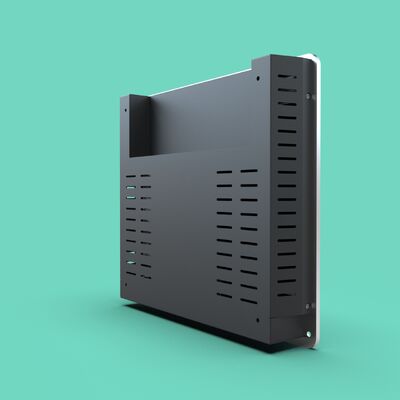

Installation: Standard wall-mounted metal bracket (compatible with 86 base box), optional gate frame or desktop bracket
Communication method
Wired Network: RJ45 Gigabit Ethernet port, supporting 10/100/1000M auto-adaptation
Wireless Network: Optional Wi-Fi 802.11 b/g/n/ac or 4G all-network module
USB 2.0: Supports importing and exporting personnel data and firmware upgrade via USB drive
Access Control Interface
Wiegand input/output (Wiegand 26/34), compatible with mainstream access control controllers
RS485 Interface: External card reader or door control security module
Relay Output: Directly controls the electric lock to open
Door magnetic detection, door opening button, alarm input/output, etc. complete access control interfaces
Secondary Development Support
Provides standard SDK and API interfaces, supports integration with third-party attendance systems, OA platforms, and cloud access control management platforms to achieve unified personnel management, real-time event upload, and remote control.

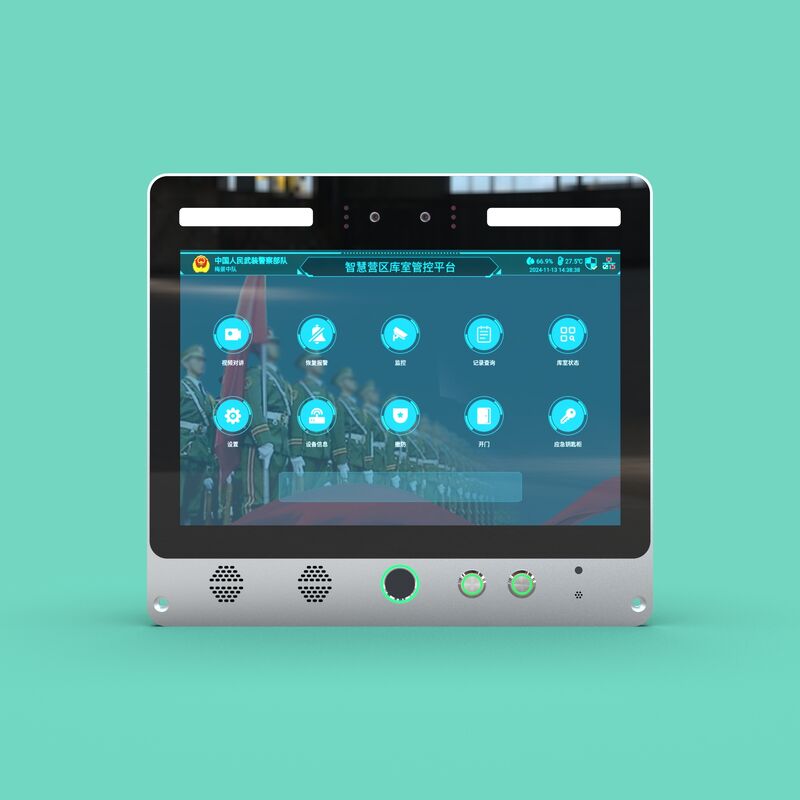

| Specifications of the 10.1-inch fingerprint and facial recognition access control device | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 MHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 10.1 inches | |
| screen resolution | 1280*800 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch panel, capable of withstanding over 50 million touches at any single point. | |
| camera | Dual-camera setup featuring visible light and infrared sensors with 2 million pixels, ultra-wide dynamic range, live detection support, resistance to backlighting and strong light, and selectable focal lengths. | |
| Fingerprint Capture and Recognition Module | Measurement method: capacitive surface-array semiconductor sensor with planar pressure sensing | |
| Storage capacity: 500 items | ||
| Security Level: Level 5 (from lowest to highest: 1, 2, 3, 4, 5) | ||
| False acceptance rate (FAR): <0.001% (SecurityLevel: 3) | ||
| False Rejection Rate (FRR): <0.1% (SecurityLevel: 3) | ||
| Collection window size: 20.4 mm × 33.4 mm | ||
| Image size: 192*192 pixels (effective size: 192*192 pixels) | ||
| Image pixel density: 508 DPI | ||
| Matching method: comparison-based (1:1); search-based (1:N) (when 500 items are registered) <1 second | ||
| Does it support self-learning? Yes | ||
| Wi-Fi | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports Bluetooth Technology Version 5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensing) | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm | Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; dynamic dual-camera anti-counterfeiting capability, completely eliminating fraud risks associated with photos and videos across various media carriers; supports a face database of 50,000 images and 1 million recognition records; when the face database contains 50,000 images, it achieves a false recognition rate of 0.01% and a pass rate of 97%. | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Plant Process | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
|
|
| Model Number: | 012 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 10.1-inch |
| Payment Terms: | T/T |
Product Introduction:
Technical Architecture: Industrial-grade hardware, stable and reliable
Core Processor and Operating System
Equipped with RK3568 quad-core Cortex-A55 processor (2.0GHz), with built-in NPU computing power, running Android 11 operating system, providing rich application ecosystem and secondary development interfaces. Optional embedded Linux version to meet high stability and security requirements.
Dual-camera Module
200,000-pixel wide dynamic dual-camera (RGB + IR), supporting low-light environment face recognition
Recognition Distance: 0.4 meters to 2 meters, suitable for a height range of 1.2 meters to 2.0 meters
Live Detection: Infrared dual-camera anti-counterfeiting, photos, videos, and screen screenshots cannot pass
Capacitive Fingerprint Module
False Rejection Rate (FRR) ≤ 0.1%, False Acceptance Rate (FAR) ≤ 0.001%
Body Craft and Installation Method
Material: Aluminum alloy CNC precision engraving body + tempered glass panel, sturdy and durable
Installation: Standard wall-mounted metal bracket (compatible with 86 base box), optional gate frame or desktop bracket
Communication method
Wired Network: RJ45 Gigabit Ethernet port, supporting 10/100/1000M auto-adaptation
Wireless Network: Optional Wi-Fi 802.11 b/g/n/ac or 4G all-network module
USB 2.0: Supports importing and exporting personnel data and firmware upgrade via USB drive
Access Control Interface
Wiegand input/output (Wiegand 26/34), compatible with mainstream access control controllers
RS485 Interface: External card reader or door control security module
Relay Output: Directly controls the electric lock to open
Door magnetic detection, door opening button, alarm input/output, etc. complete access control interfaces
Secondary Development Support
Provides standard SDK and API interfaces, supports integration with third-party attendance systems, OA platforms, and cloud access control management platforms to achieve unified personnel management, real-time event upload, and remote control.
| Specifications of the 10.1-inch fingerprint and facial recognition access control device | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 MHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 10.1 inches | |
| screen resolution | 1280*800 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch panel, capable of withstanding over 50 million touches at any single point. | |
| camera | Dual-camera setup featuring visible light and infrared sensors with 2 million pixels, ultra-wide dynamic range, live detection support, resistance to backlighting and strong light, and selectable focal lengths. | |
| Fingerprint Capture and Recognition Module | Measurement method: capacitive surface-array semiconductor sensor with planar pressure sensing | |
| Storage capacity: 500 items | ||
| Security Level: Level 5 (from lowest to highest: 1, 2, 3, 4, 5) | ||
| False acceptance rate (FAR): <0.001% (SecurityLevel: 3) | ||
| False Rejection Rate (FRR): <0.1% (SecurityLevel: 3) | ||
| Collection window size: 20.4 mm × 33.4 mm | ||
| Image size: 192*192 pixels (effective size: 192*192 pixels) | ||
| Image pixel density: 508 DPI | ||
| Matching method: comparison-based (1:1); search-based (1:N) (when 500 items are registered) <1 second | ||
| Does it support self-learning? Yes | ||
| Wi-Fi | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports Bluetooth Technology Version 5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensing) | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm | Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; dynamic dual-camera anti-counterfeiting capability, completely eliminating fraud risks associated with photos and videos across various media carriers; supports a face database of 50,000 images and 1 million recognition records; when the face database contains 50,000 images, it achieves a false recognition rate of 0.01% and a pass rate of 97%. | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Plant Process | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
