| Model Number: | 008 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:
This product is an 8-inch high-performance access control terminal specially designed for the installation of passage gates/door stands. It integrates three core identification methods: facial recognition, fingerprint verification, and IC card swiping. It supports various combination authentication. The device is equipped with dual-lens live detection cameras and capacitive fingerprint module, featuring high security level, fast recognition speed, and strong environmental adaptability. It can seamlessly connect to gate controllers and various access control management systems.
Core functions and highlights:
1. Triple biometric recognition, adjustable security level
The device supports three identification methods and can be freely combined into single verification or dual/triple combination verification to meet the needs of different security levels in various scenarios:
Facial recognition: Equipped with 2 million wide dynamic dual-lens cameras, supporting infrared live detection, which can effectively defend against photo, video, 3D mask, etc.伪造 attacks. Facial recognition speed ≤ 0.2 seconds per person, accuracy rate ≥ 99.9%.
Fingerprint recognition: Built-in high-precision capacitive fingerprint module, with low false rejection rate, supporting anti-fake fingerprint function. Some models can have a fingerprint capacity of up to 10,000.
IC card swiping: Equipped with 13.56 MHz RFID reading module, supporting Mifare IC cards, CPU cards, NFC mobile phone cards, etc.
2. Special design for gates, 8-inch high-definition vertical screen
8-inch IPS touch screen, resolution 800×1280, vertical screen ratio matching the installation posture of gate stands
Designed specifically for embedded installation in gate stands, it can be adapted to various installation methods such as gate brackets, desktops, wall mounts, etc.
IP65 protection level, dustproof and waterproof, supporting indoor, outdoor, and semi-outdoor passage scenarios
3. High-performance configuration, large-capacity storage
High-performance processor: 2GB memory + 32GB storage (some models), face database capacity: 50,000, record capacity over 500,000
Disconnection continuous transmission: Event records generated when the device is offline will be automatically re-uploaded after connection to ensure data does not get lost
4. Integrated attendance and access control management
Attendance management: Supports local/cloud attendance statistics, can export attendance reports
Flexible expansion: Supports optional 4G all-IP, Wi-Fi, Bluetooth modules to meet deployment requirements in complex network environments
5. Rich interfaces, seamless connection with gates
Standard interfaces: RJ45 100M network port, Wiegand input/output, RS485, relay output, USB 2.0, etc.
Communication methods: TCP/IP, Wi-Fi (optional), 4G (optional)
Applicable scenarios
Factory/Park: High-security production area, entrance control of R&D center, dual verification of fingerprint and face for preventing fake attendance logging
Enterprise/Office Building: Facial recognition/fingerprint scanning for employee access control and attendance statistics
Campus/Library: Campus entrance, library, laboratory access control
Government Institution/Financial Outlet: High-security channel identity verification
| Technical Specifications of the 8-inch Integrated Access Control Terminal featuring Fingerprint Recognition, Card Swiping, and Facial Recognition | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |

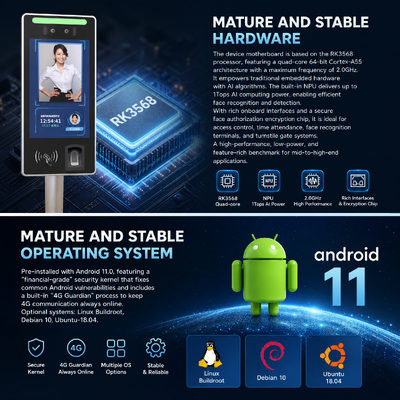

| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 GHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 8 inches | |
| screen resolution | 800*1280 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touch cycles. | |
| camera | Dual-camera setup featuring visible light and infrared sensors with 2 million pixels, ultra-wide dynamic range, live detection support, resistance to backlighting and strong light, and selectable focal lengths. | |
| Fingerprint Capture and Recognition Module | Measurement method: capacitive array semiconductor sensor with planar pressure sensing | |
| Storage capacity: 500 items | ||
| Security Level: Level 5 (from lowest to highest: 1, 2, 3, 4, 5) | ||
| False acceptance rate (FAR): <0.001% (SecurityLevel: 3) | ||
| False Rejection Rate (FRR): <0.1% (Security Level: 3) | ||
| Sample window size: 20.4 mm × 33.4 mm | ||
| Image size: 192*192 pixels (effective size: 192*192 pixels) | ||
| Image pixel density: 508 DPI | ||
| Matching method: comparison-based (1:1); search-based (1:N) (when 500 items are registered) <1 second | ||
| Does it support self-learning? Yes | ||
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11B/G/N | |
| PDA | High-performance Bluetooth, supports Bluetooth Technology Version 5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| microphone | Optional | |
| 4G | Optional | |
| Indication light | Red, green, and white LED lights | |
| Speaker | Built-in 8Ω/3W | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensing) | |
| outer joint | 1 x USB/OTG port, 1 x RJ45 standard interface, 1 x relay output, 1 x DC power supply, 1 x Vengen interface, 1 x RS-232/485 interface | |
| Face recognition algorithm | Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; dynamic dual-camera anti-counterfeiting capability, completely eliminating fraud in photos and videos across various media formats; supports a face database of 50,000 images and 1 million recognition records; when the face database contains 50,000 images, it achieves a false recognition rate of 0.01% and a pass rate of 97%. | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Technology | CNC precision engraving and anodizing of aluminum alloy | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | Barrier gate installation | |
|
|
| Model Number: | 008 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 8 inches |
| Payment Terms: | T/T |
Product Overview:
This product is an 8-inch high-performance access control terminal specially designed for the installation of passage gates/door stands. It integrates three core identification methods: facial recognition, fingerprint verification, and IC card swiping. It supports various combination authentication. The device is equipped with dual-lens live detection cameras and capacitive fingerprint module, featuring high security level, fast recognition speed, and strong environmental adaptability. It can seamlessly connect to gate controllers and various access control management systems.
Core functions and highlights:
1. Triple biometric recognition, adjustable security level
The device supports three identification methods and can be freely combined into single verification or dual/triple combination verification to meet the needs of different security levels in various scenarios:
Facial recognition: Equipped with 2 million wide dynamic dual-lens cameras, supporting infrared live detection, which can effectively defend against photo, video, 3D mask, etc.伪造 attacks. Facial recognition speed ≤ 0.2 seconds per person, accuracy rate ≥ 99.9%.
Fingerprint recognition: Built-in high-precision capacitive fingerprint module, with low false rejection rate, supporting anti-fake fingerprint function. Some models can have a fingerprint capacity of up to 10,000.
IC card swiping: Equipped with 13.56 MHz RFID reading module, supporting Mifare IC cards, CPU cards, NFC mobile phone cards, etc.
2. Special design for gates, 8-inch high-definition vertical screen
8-inch IPS touch screen, resolution 800×1280, vertical screen ratio matching the installation posture of gate stands
Designed specifically for embedded installation in gate stands, it can be adapted to various installation methods such as gate brackets, desktops, wall mounts, etc.
IP65 protection level, dustproof and waterproof, supporting indoor, outdoor, and semi-outdoor passage scenarios
3. High-performance configuration, large-capacity storage
High-performance processor: 2GB memory + 32GB storage (some models), face database capacity: 50,000, record capacity over 500,000
Disconnection continuous transmission: Event records generated when the device is offline will be automatically re-uploaded after connection to ensure data does not get lost
4. Integrated attendance and access control management
Attendance management: Supports local/cloud attendance statistics, can export attendance reports
Flexible expansion: Supports optional 4G all-IP, Wi-Fi, Bluetooth modules to meet deployment requirements in complex network environments
5. Rich interfaces, seamless connection with gates
Standard interfaces: RJ45 100M network port, Wiegand input/output, RS485, relay output, USB 2.0, etc.
Communication methods: TCP/IP, Wi-Fi (optional), 4G (optional)
Applicable scenarios
Factory/Park: High-security production area, entrance control of R&D center, dual verification of fingerprint and face for preventing fake attendance logging
Enterprise/Office Building: Facial recognition/fingerprint scanning for employee access control and attendance statistics
Campus/Library: Campus entrance, library, laboratory access control
Government Institution/Financial Outlet: High-security channel identity verification
| Technical Specifications of the 8-inch Integrated Access Control Terminal featuring Fingerprint Recognition, Card Swiping, and Facial Recognition | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 GHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 8 inches | |
| screen resolution | 800*1280 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touch cycles. | |
| camera | Dual-camera setup featuring visible light and infrared sensors with 2 million pixels, ultra-wide dynamic range, live detection support, resistance to backlighting and strong light, and selectable focal lengths. | |
| Fingerprint Capture and Recognition Module | Measurement method: capacitive array semiconductor sensor with planar pressure sensing | |
| Storage capacity: 500 items | ||
| Security Level: Level 5 (from lowest to highest: 1, 2, 3, 4, 5) | ||
| False acceptance rate (FAR): <0.001% (SecurityLevel: 3) | ||
| False Rejection Rate (FRR): <0.1% (Security Level: 3) | ||
| Sample window size: 20.4 mm × 33.4 mm | ||
| Image size: 192*192 pixels (effective size: 192*192 pixels) | ||
| Image pixel density: 508 DPI | ||
| Matching method: comparison-based (1:1); search-based (1:N) (when 500 items are registered) <1 second | ||
| Does it support self-learning? Yes | ||
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11B/G/N | |
| PDA | High-performance Bluetooth, supports Bluetooth Technology Version 5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| microphone | Optional | |
| 4G | Optional | |
| Indication light | Red, green, and white LED lights | |
| Speaker | Built-in 8Ω/3W | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensing) | |
| outer joint | 1 x USB/OTG port, 1 x RJ45 standard interface, 1 x relay output, 1 x DC power supply, 1 x Vengen interface, 1 x RS-232/485 interface | |
| Face recognition algorithm | Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; dynamic dual-camera anti-counterfeiting capability, completely eliminating fraud in photos and videos across various media formats; supports a face database of 50,000 images and 1 million recognition records; when the face database contains 50,000 images, it achieves a false recognition rate of 0.01% and a pass rate of 97%. | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Technology | CNC precision engraving and anodizing of aluminum alloy | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | Barrier gate installation | |
