Product Overview:

This product is an 8-inch intelligent access control and attendance terminal specially designed for the installation of access control gates and gate posts. It integrates three types of identification methods: facial recognition, QR code scanning, and IC card swiping. The device is installed in a way that fits into the gate post, equipped with deep learning facial recognition algorithms and dual-lens live detection cameras. It supports local offline operation and is widely used in access control gate scenarios in office buildings, smart parks, campuses, government offices, etc.

Core functions and highlights:
1. Three verification methods, flexible adaptation
The device supports all three identification methods, meeting the passage needs of different user groups:

Facial recognition: Equipped with 2 million wide dynamic dual-lens cameras, supporting infrared live detection, which can effectively defend against photo, video, and 3D mask forgery attacks. The facial recognition speed is ≤ 0.2~0.3 seconds per person, with an accuracy rate of ≥ 99%.

IC card swiping: Built-in 13.56 MHz RFID reading module, compliant with ISO 14443A/B standards, supporting Mifare IC cards, CPU cards, NFC mobile phone cards, etc., with screen-under swiping design, convenient operation.

QR code scanning: Equipped with QR code recognition module, supporting paper and screen QR code scanning, suitable for visitor scanning for passage, temporary authorization, etc.

2. 8-inch high-definition touch screen, dedicated to access control gates

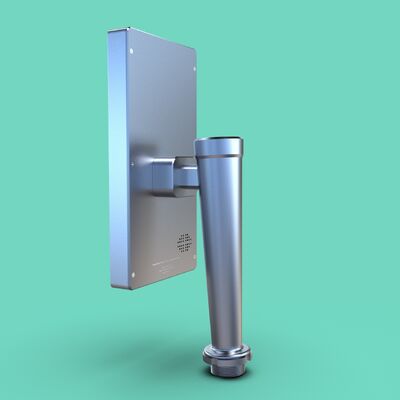

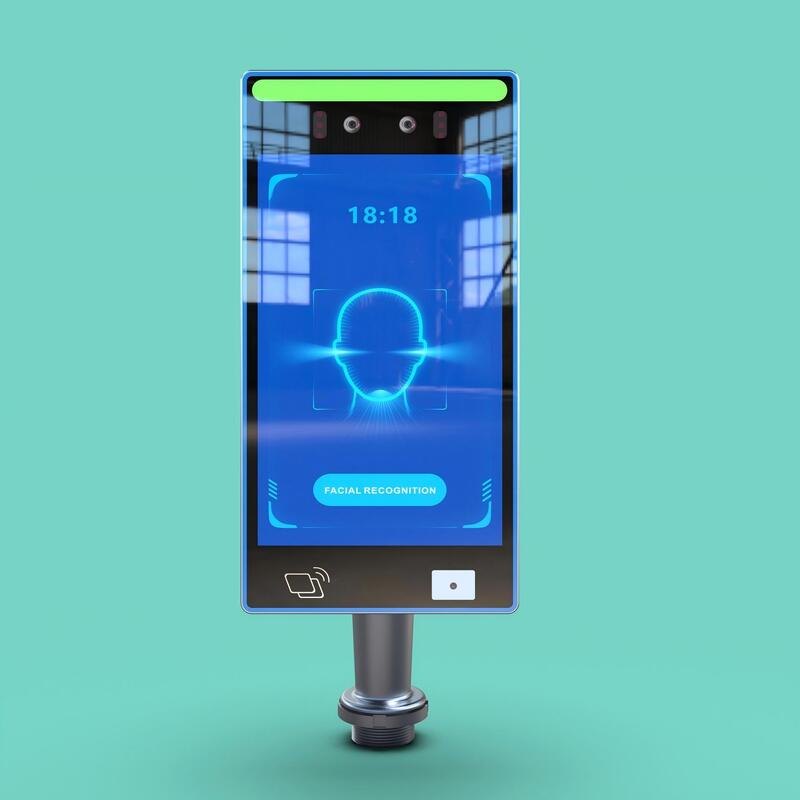

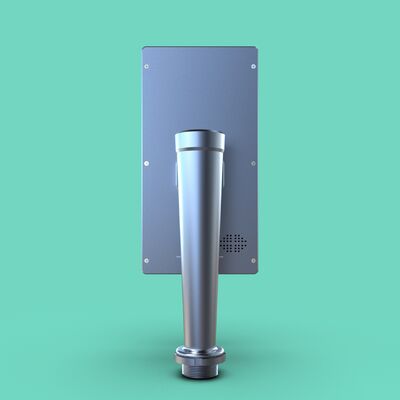

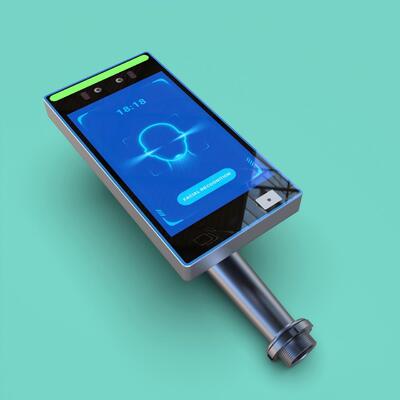

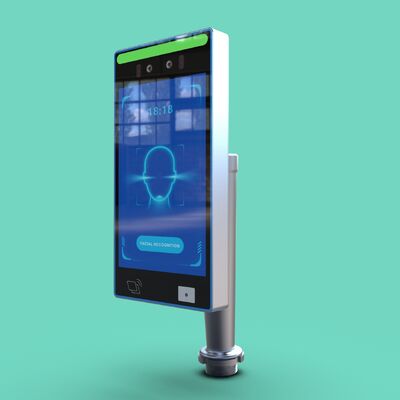

Equipped with an 8-inch IPS high-definition touch screen, with a resolution of 1280×800, the vertical screen ratio is in line with the installation posture of the access control gate. The screen has a high coverage rate, visualizing the face collection process, and clearly reflecting the identification results. The device is optimized for embedded installation in the access control gate post, compatible with standard opening hole specifications, and supports wall-mounted installation and gate machine bracket installation.

3. Industrial-level protection, adaptable to multiple scenarios
IP66/IP67 protection level: Dust-proof and water-proof, can work normally in rain-laden conditions, suitable for indoor and semi-outdoor access control scenarios.

Wide temperature range operation: Working temperature range is -25℃~65℃, adaptable to cold and hot environments.

4. High-performance configuration, large-capacity storage
Processor: Uses an 8-core Cortex-A53 high-performance processor, with built-in NPU computing power, supporting local offline 1:N rapid comparison.

Storage configuration: 2GB RAM + 16GB ROM, face database capacity supports 50,000 images, record capacity over 200,000 entries.

Disconnection continuous transmission: Event records generated when the device is offline will be automatically re-uploaded upon reconnection, ensuring that attendance data is not lost.

5. Integrated attendance and access control and rich interfaces
Attendance management: Supports local/cloud attendance statistics, can be connected to the attendance system to automatically generate reports.

Access control management: Supports access control period management, blacklist management, remote opening, etc., professional access control functions.

Interface configuration: Standard RJ45 100M network port, Wi-Fi (2.4G/5G dual frequency), optional 4G all-网通. Provides Wiegand input/output, RS232/RS485, relay output, door magnet detection, etc., can be seamlessly connected with various access control controllers.

Applicable scenarios
Smart Park/Office: Facial recognition for access control and attendance statistics at employee entrances

Campus/Library: Campus entrances, libraries, dormitory access control

Government Offices/Financial Outlets: High-security identity verification for access control

Public Transportation: Metro, BRT, tram facial recognition for fare payment
