| Model Number: | F3X Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
F3X Smart Face Recognition Access Control Motherboard
Engineered for high-performance face recognition access control and time attendance systems, the F3X Smart Face Recognition Access Control Motherboard leverages the powerful Rockchip RK3288 quad-core Cortex-A17 processor running at up to 1.6GHz to deliver premium processing capabilities for demanding security applications. The integrated Mali-T764 GPU supports OpenGL ES 1.1/2.0/3.1 and provides 4K hardware video decoding — enabling ultra-high-definition display for premium access control terminals. What truly distinguishes the F3X is its unified access control connector — a single integrated interface that consolidates 12V power input, 5V power output, two serial ports (UART), SPDT door control relay, Wiegand input/output, door open input, tamper/sensor input, alarm input, doorbell output, and alarm output into one convenient connection point. This thoughtful integration dramatically simplifies wiring and accelerates system assembly. The board also features three display options (LVDS up to 1080P, eDP up to 1080P, and MIPI-DSI up to 1920×1200), MIPI-CSI camera port for high-quality image capture, dual 8Ω 10W amplifier outputs for loud audio feedback, and a 12V PWM-controlled fill-light interface for reliable face capture in low-light conditions. With MiniPCI-E for 4G expansion, 9V–15V wide voltage input, and support for Android 5.1/6.0/7.1, the F3X delivers the performance and integration needed for premium access control solutions.
Revolutionary Unified Access Control Connector: A single integrated interface consolidates power (12V in, 5V out), door control relay, Wiegand I/O, door sensor, tamper input, alarm, and doorbell — dramatically simplifying wiring, reducing assembly time, and minimizing connection errors.
4K Decoding for Premium Visual Experience: Mali-T764 GPU with 4K hardware video decoding enables ultra-HD display output — perfect for high-end access control terminals with large, high-resolution screens showing video calls, visitor previews, or promotional content.
Triple Display Interface Options: LVDS (30-pin dual, up to 1080P), eDP (20-pin, 1–4 lanes, up to 1080P), and MIPI-DSI (31-pin, up to 1920×1200) — choose the display technology that best fits your product design without hardware compromises.
10W High-Power Audio Output: Dual 8Ω 10W amplifiers drive speakers directly for loud, clear voice prompts — essential for noisy environments and outdoor installations where users need to hear access confirmation and alerts.
MIPI-CSI Camera with Night Capture Support: Dedicated MIPI-CSI camera port combined with 12V PWM-controlled fill-light and ambient light sensor ensures high-quality face capture in any lighting condition — from bright daylight to complete darkness.

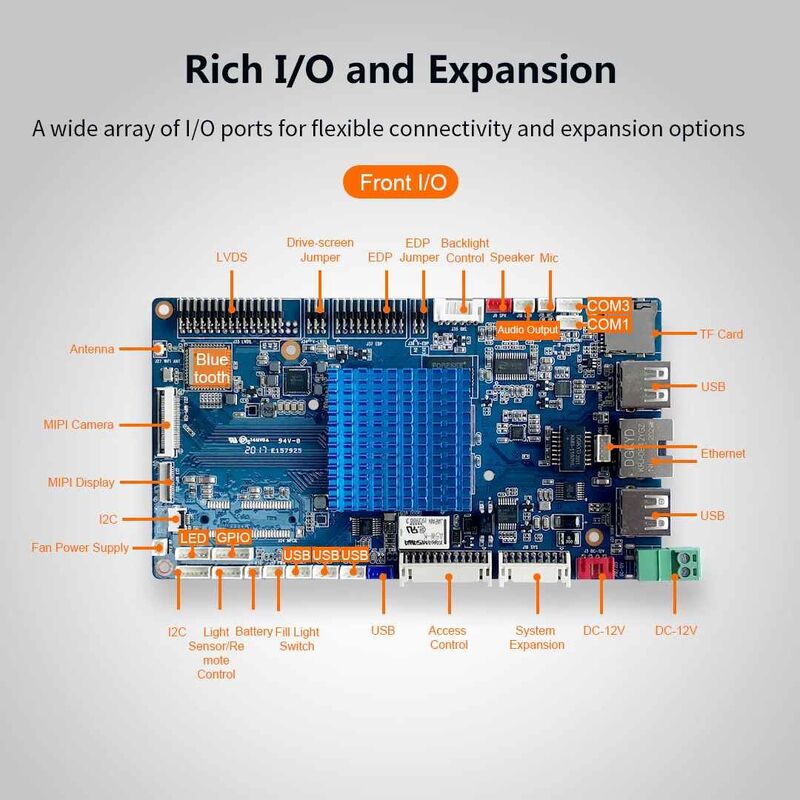

System Expansion Interface for Simplified Integration: The system expansion connector provides 12V power, 5V power, USB Host/OTG ports, boot/download button, power button, reset button, and GPIO pins — enabling rapid integration with external peripherals and reducing development time.
One-Cable Access Control Integration: The unified access control connector is a game-changer for system integrators and OEMs. Instead of wiring 12+ individual connections, a single cable connects all door control peripherals — reducing assembly time, minimizing wiring errors, and simplifying troubleshooting.
4K Display for Premium Product Differentiation: While most access control boards support only 1080P, the F3X delivers 4K decoding capability. Build premium terminals with stunning ultra-HD displays that showcase visitor video, advertising content, or high-resolution interface graphics — setting your product apart from competitors.
More Display Options, More Design Freedom: With LVDS, eDP, and MIPI-DSI all on one board, the F3X adapts to any display choice — whether you're using cost-effective LVDS panels, high-volume eDP screens, or flexible MIPI-DSI displays. No need to redesign the board for different display technologies.
Consolidated System Integration: The system expansion connector puts power, USB, buttons, and GPIO in one place — reducing the need for multiple cable harnesses and simplifying enclosure design. Faster assembly, lower labor costs, and cleaner internal layouts.
Cost-Optimized for Volume Deployment: The RK3288 platform offers proven reliability and performance at a competitive price point. Perfect for large-scale access control deployments in office buildings, residential complexes, educational institutions, and government facilities where reliability and cost-efficiency are equally important.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
