| Model Number: | F3 Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
F3 Smart Face Recognition Access Control Motherboard

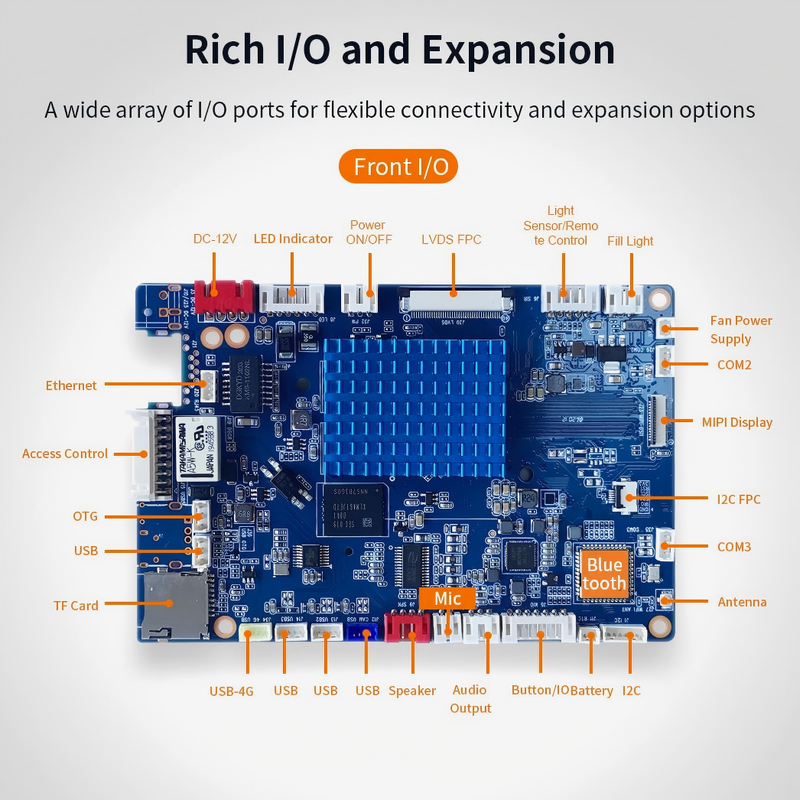

The F3 Smart Face Recognition Access Control Motherboard delivers high-performance biometric authentication powered by the Rockchip RK3288 quad-core Cortex-A17 processor running at up to 1.8GHz — the highest clock speed in the F-series lineup. The integrated Mali-T764 GPU supports OpenGL ES 1.1/2.0/3.1 and provides both 4K hardware video decoding and 1080P hardware video encoding, making it ideal for access control terminals that require both high-resolution display output and video capture/streaming capabilities. The F3 features a MIPI-CSI camera port for superior image quality, dual 8Ω 10W amplifiers for loud audio feedback, and comprehensive access control interfaces including Wiegand input, DPDT door control relay, and a 12V PWM-controlled fill-light for reliable night-time face capture. With 9V–15V wide voltage input, MiniPCI-E for 4G expansion, and Android 5.1/6.0/7.1 support, the F3 offers the performance and flexibility needed for premium face recognition terminals in office buildings, residential complexes, and commercial facilities.
Hardware Video Encoding for Streaming Applications: The F3 uniquely supports 1080P hardware video encoding alongside 4K decoding — capture and compress video from the MIPI-CSI camera directly on the board for efficient streaming to remote monitoring stations, cloud platforms, or mobile apps without burdening the CPU.
1.8GHz Peak Performance: The RK3288's 1.8GHz clock speed delivers the fastest processing in the F-series — drastically reducing face recognition latency and enabling smooth, responsive user interfaces even with complex animations and high-resolution graphics.

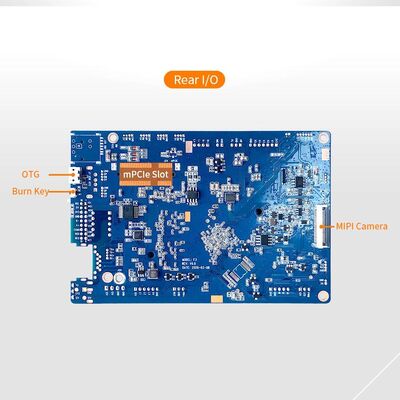

Superior Image Capture with MIPI-CSI: Dedicated MIPI camera interface provides higher image quality and lower latency than USB alternatives — ensuring accurate face matching even with subtle facial features, improving authentication reliability.
Enhanced Door Lock Control with DPDT Relay: The DPDT relay offers more robust switching capability than standard SPDT relays — supporting a wider range of electric lock types with improved reliability and longer contact life for high-traffic access points.
All-in-One Night Capture Solution: 12V PWM fill-light + ambient light sensor + MIPI-CSI camera work together seamlessly — the light sensor automatically triggers the fill-light in low-light conditions, while PWM dimming ensures consistent illumination without overexposure, delivering reliable face capture from dawn to dusk and beyond.
Crystal-Clear 10W Voice Guidance: Dual 8Ω 10W amplifiers deliver room-filling audio for voice prompts, access confirmations, and alarm notifications — ensuring users receive clear feedback even in noisy environments like factory floors or outdoor entranceways.
Optimized for Cost-Conscious Deployments: The RK3288 platform delivers proven performance at a competitive price point — ideal for large-scale access control projects where reliability and cost-efficiency are equally important.
Unmatched Processing Power in Its Class: At 1.8GHz, the RK3288 on the F3 outperforms other access control boards in the F-series, delivering faster face recognition, smoother UI, and better multitasking — ideal for premium terminals where user experience matters.
Encode + Decode for Video-Enabled Applications: The F3's 1080P hardware encoding capability enables video streaming from the MIPI-CSI camera to remote monitoring stations, cloud storage, or mobile apps. Perfect for video intercom, remote visitor verification, and security surveillance integration.
Optimized for Low-Light Face Capture: The 12V PWM-controlled fill-light ensures consistent illumination for face capture in dark environments, while the MIPI-CSI camera delivers superior image quality — reliable authentication day or night.
Complete Door Control on One Board: DPDT relay provides robust door lock control with higher current capacity than SPDT relays, ensuring reliable operation with a wider range of electric locks. Combined with Wiegand input, fill-light control, and audio amplification, the F3 reduces BOM complexity and simplifies system design.
Proven Platform for Volume Deployment: The RK3288 is a mature, widely deployed platform with proven reliability in access control applications. Reduce development risk and accelerate time-to-market with a well-supported, stable platform backed by extensive documentation and community resources.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
