| Model Number: | F1 Mainboard |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
F1 Smart Face Recognition Access Control Motherboard
Built specifically for face recognition access control and time attendance terminals, the F1 Smart Face Recognition Access Control Motherboard combines reliable performance with specialized interfaces for biometric authentication applications. Powered by the Rockchip PX30 quad-core Cortex-A35 processor running at 1.5GHz, the board supports 1080P hardware video decoding — essential for smooth camera capture and display. The F1 stands out with its integrated access control peripherals: Wiegand input for card reader connectivity, DPDT relay for direct door lock actuation, and a 12V fill-light interface with PWM dimming for optimal face capture in low-light conditions. The MIPI-CSI camera port delivers higher image quality and lower latency than USB alternatives — critical for accurate face matching. Dual 8Ω 10W amplifiers provide loud, clear audio feedback for user prompts and alarm notifications, while the ambient light sensor enables automatic display brightness adjustment. With 9V–15V wide voltage input, MiniPCI-E for 4G expansion, and Android 8.1 support with open API SDK, the F1 offers a complete, cost-effective solution for OEMs building next-generation access control systems.

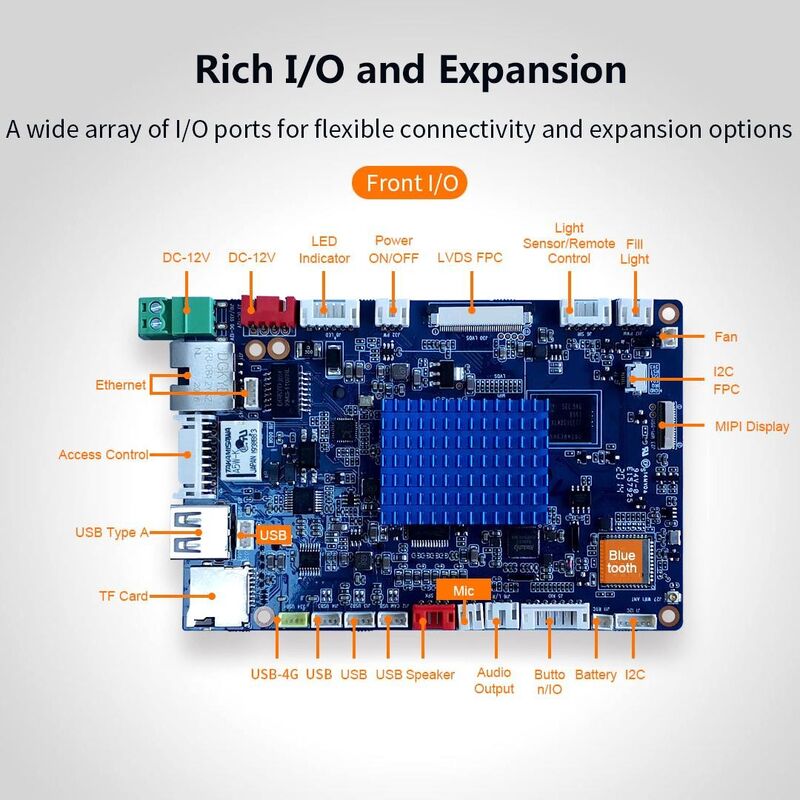

Specialized Access Control Interfaces: Wiegand input for card readers, DPDT relay for door locks, and 12V PWM-controlled fill-light — all integrated on-board, eliminating the need for external adapter modules.

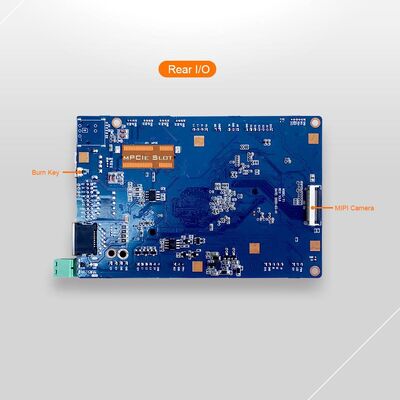

MIPI-CSI Camera Interface: Dedicated MIPI camera port delivers superior image quality and lower latency compared to USB cameras — essential for accurate face recognition and liveness detection.
10W Audio Amplifier: Dual 8Ω 10W outputs drive speakers directly for loud, clear voice prompts — ensuring users hear confirmation feedback even in high-noise environments like factories or outdoor entrances.
Display Configuration Flexibility: Supports both LVDS (up to 1366×768) and MIPI-DSI (up to 1920×1200) — choose the display that fits your design. Hardware-configurable via resistor settings.
Environment-Adaptive Design: Ambient light sensor adjusts screen brightness automatically, while the PWM-controlled fill-light ensures consistent camera illumination — delivering reliable face recognition in any lighting condition, from direct sunlight to complete darkness.
Compact, Security-Focused Form Factor: 120mm × 80mm × 9mm footprint with all access control interfaces on a single board — reduces enclosure size and simplifies integration into door-mounted terminals.
Access Control-Focused Architecture: Unlike repurposed general-purpose boards, the F1's interface selection is tailored for face recognition terminals — Wiegand, door relay, fill-light control, and MIPI-CSI are all standard, not afterthoughts.
PWM Fill-Light for Reliable Night Capture: The 12V fill-light interface with PWM dimming ensures consistent illumination for face capture in low-light environments. No external lighting controller needed — software-controllable brightness for optimal image quality day or night.
Optimized for Cost-Sensitive Volume Deployment: The PX30 platform offers the ideal balance of performance and cost for access control applications. Powerful enough for reliable face recognition, yet cost-effective for large-scale deployments in office buildings, residential complexes, and campus environments.
MIPI-CSI Over USB: MIPI-CSI provides direct camera connection with lower latency and better image quality than USB — critical for face recognition where every millisecond and pixel matters. No USB controller overhead, no driver compatibility issues.
All-in-One Door Control: With DPDT relay + Wiegand input + fill-light control + audio amplification + light sensor on a single board, the F1 reduces BOM complexity, simplifies integration, and accelerates time-to-market for access control OEMs.
| Item | Details |
|---|---|
| Packaging | Anti-static bag + foam padding + industrial carton |
| MOQ | 1 piece (sample order), 100+ for volume pricing |
| Lead Time | 3–5 working days for samples; 15–20 working days for bulk orders |
| Shipping | DHL, FedEx, UPS, or by sea (customer's choice) |
|
|
