| Model Number: | 019 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

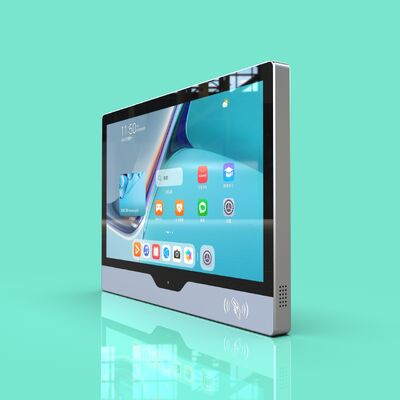

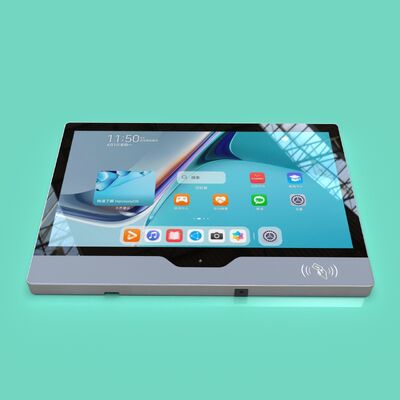

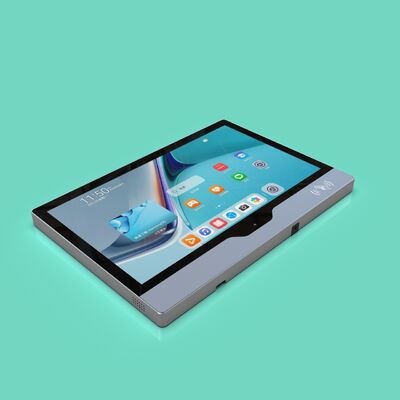

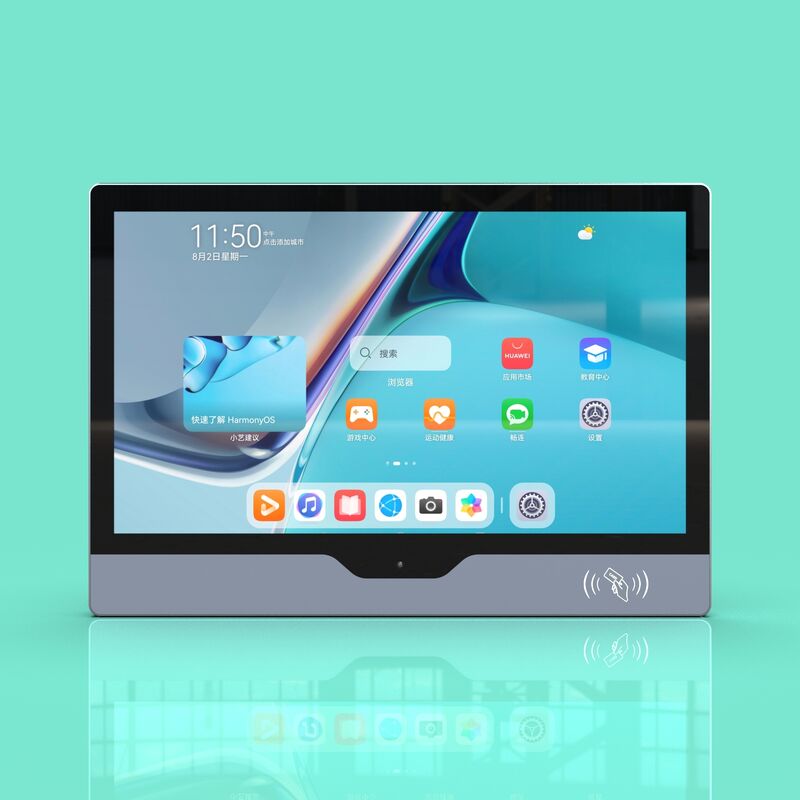

In scenarios such as high-end office buildings, smart parks, and enterprise lobbies, access control equipment is no longer merely a "gatekeeper" tool; it also undertakes multiple responsibilities including information display, brand promotion, and efficient interaction. The 21.5-inch horizontal screen wall-mounted facial recognition + swipe card touch integrated machine has emerged in response to this trend - a smart access control terminal that combines a 21.5-inch ultra-large horizontal screen touch control, deep learning facial recognition, and IC card swipe functionality. It supports wall-mounted installation and is widely used in enterprise attendance, park access, meeting sign-in, exhibition visitor registration, and other scenarios.
Key highlights
21.5-inch full HD horizontal screen, providing both information display and operation viewing
Equipped with a 21.5-inch IPS touch screen, with a resolution of 1920×1080 and a 16:9 widescreen ratio, featuring ten-point capacitive touch. The oversized screen offers: clear identification results in access control scenarios; support for video and image split-screen playback in advertising mode, converting access points into brand display windows; display of meeting room status and meeting information in meeting sign-in scenarios.
Equipped with a 2-megapixel wide dynamic camera, with a starlight-level image sensor that can still accurately identify in low-light conditions, with an identification range of 0.3 to 3 meters.
Deep learning algorithm, large-capacity rapid recognition
Support for local offline 1:N face comparison: face capacity of 50,000, record capacity of over 500,000, identification speed ≤ 0.5 seconds per person, accuracy rate > 99%.
Multiple verification and professional access control functions
Support for face, IC card, password, and combination verification. Built-in time period control, multiple authentication, remote opening, anti-backtracking, and continuous transmission in the event of network disconnection, etc., professional access control functions.
Multiple display modes
Supports standard mode (full-screen video preview), advertising mode (identification area + ad split screen), minimalist mode (only showing results), and meeting mode (display of meeting information).
Industrial-grade design
Ultra-thin metal frame + tempered glass panel, with standard wall-mounted metal bracket included.
| Specifications of the 21.5-inch TCP/IP network-integrated access control console | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 GHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 21.5 inches | |
| screen resolution | 1920*1080 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted operation 24/7 throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touch operations. | |
| camera | 2-megapixel sensor, ultra-wide dynamic range, live detection support, anti-backlight and high-light performance, and selectable focal lengths. | |
| Speaker | Built-in 8Ω/3W*2 | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports BT V5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| microphone | Optional | |
| 4G | Optional | |
| POE | Optional | |
| operational parameter | Voltage: 12 V; Current: 4 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH; Non-condensable | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm |
Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting technology completely eliminates the possibility of fraud involving photos and videos across various media formats; Supports a facial recognition photo database of 50,000 images and 1 million recognition records; For a face database of 50,000 individuals, the false acceptance rate is 0.01%, and the pass rate is 97%. |
|
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Technology | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
|
|
| Model Number: | 019 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 524mm × 415mm × 36mm |
| Payment Terms: | T/T |
Product Overview:
In scenarios such as high-end office buildings, smart parks, and enterprise lobbies, access control equipment is no longer merely a "gatekeeper" tool; it also undertakes multiple responsibilities including information display, brand promotion, and efficient interaction. The 21.5-inch horizontal screen wall-mounted facial recognition + swipe card touch integrated machine has emerged in response to this trend - a smart access control terminal that combines a 21.5-inch ultra-large horizontal screen touch control, deep learning facial recognition, and IC card swipe functionality. It supports wall-mounted installation and is widely used in enterprise attendance, park access, meeting sign-in, exhibition visitor registration, and other scenarios.
Key highlights
21.5-inch full HD horizontal screen, providing both information display and operation viewing
Equipped with a 21.5-inch IPS touch screen, with a resolution of 1920×1080 and a 16:9 widescreen ratio, featuring ten-point capacitive touch. The oversized screen offers: clear identification results in access control scenarios; support for video and image split-screen playback in advertising mode, converting access points into brand display windows; display of meeting room status and meeting information in meeting sign-in scenarios.
Equipped with a 2-megapixel wide dynamic camera, with a starlight-level image sensor that can still accurately identify in low-light conditions, with an identification range of 0.3 to 3 meters.
Deep learning algorithm, large-capacity rapid recognition
Support for local offline 1:N face comparison: face capacity of 50,000, record capacity of over 500,000, identification speed ≤ 0.5 seconds per person, accuracy rate > 99%.
Multiple verification and professional access control functions
Support for face, IC card, password, and combination verification. Built-in time period control, multiple authentication, remote opening, anti-backtracking, and continuous transmission in the event of network disconnection, etc., professional access control functions.
Multiple display modes
Supports standard mode (full-screen video preview), advertising mode (identification area + ad split screen), minimalist mode (only showing results), and meeting mode (display of meeting information).
Industrial-grade design
Ultra-thin metal frame + tempered glass panel, with standard wall-mounted metal bracket included.
| Specifications of the 21.5-inch TCP/IP network-integrated access control console | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 GHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 21.5 inches | |
| screen resolution | 1920*1080 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted operation 24/7 throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touch operations. | |
| camera | 2-megapixel sensor, ultra-wide dynamic range, live detection support, anti-backlight and high-light performance, and selectable focal lengths. | |
| Speaker | Built-in 8Ω/3W*2 | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports BT V5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| microphone | Optional | |
| 4G | Optional | |
| POE | Optional | |
| operational parameter | Voltage: 12 V; Current: 4 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH; Non-condensable | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm |
Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting technology completely eliminates the possibility of fraud involving photos and videos across various media formats; Supports a facial recognition photo database of 50,000 images and 1 million recognition records; For a face database of 50,000 individuals, the false acceptance rate is 0.01%, and the pass rate is 97%. |
|
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Technology | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
