| Model Number: | JP2181A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:
Display and Interaction
Main Screen: 18.5 inches, 1920×1080 Full HD.
Sub Screen: 7 inches, 1024×600, supports synchronous/asynchronous display
Material: Tempered glass panel + aluminum frame, balancing both texture and durability
Camera module
A 2 million-pixel wide dynamic dual-camera system, supporting face recognition in low-light environments
Two front-facing white LED lights ensure recognition accuracy in dim light conditions
Interfaces and Networks
Wired Network: RJ45 Gigabit Ethernet port (10/100/1000M auto-sensing)
Wireless Network: Optional Wi-Fi or 4G all-network module
Expansion Interfaces: 2×USB, HDMI, TF card slot, SIM card slot, RS485/RS232, relay output
| 18.5 + 7-Inch Apartment Face, Card and Keypad Intercom Access Control Machine Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 18.5+7 inches | |
| Screen Resolution | 1920*1080+1024*600 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 1000cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | 2 million pixels, ultra-wide dynamic range, anti-backlight and strong light, optional shooting focal length | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Fill Light | White LED | |
| 4G | Optional | |
| Card Reader | Optional IC/ID/NFC/ID card reader, reading time <1S, card reading distance: 5-30MM | |
| Microphone | High-fidelity, noise-canceling microphone | |
| Digital Keypad | 16-digit capacitive buttons | |
| Speaker | Built-in 8Ω/3W*2 | |
| Working Parameters | Voltage 12V; Current 5A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can be connected to 485/232/relay | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, scratch-proof |
| Body Craftsmanship | Aluminum alloy CNC carved anodized frame + back shell sheet metal powder coating process | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |

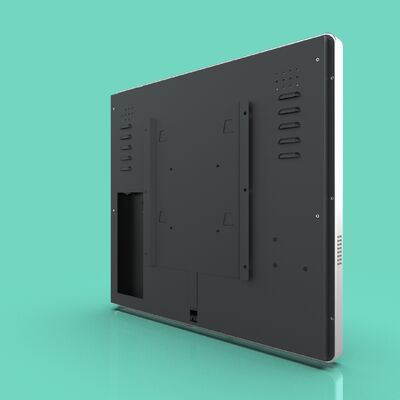

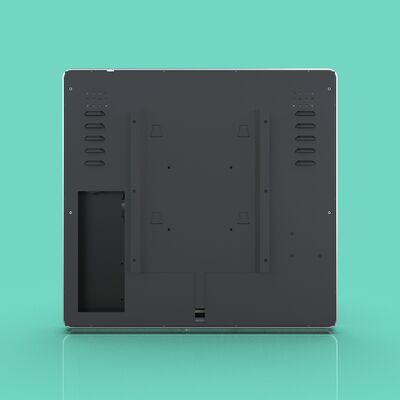

| Installation | Wall-Mounted | |
|
