| Model Number: | 014 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

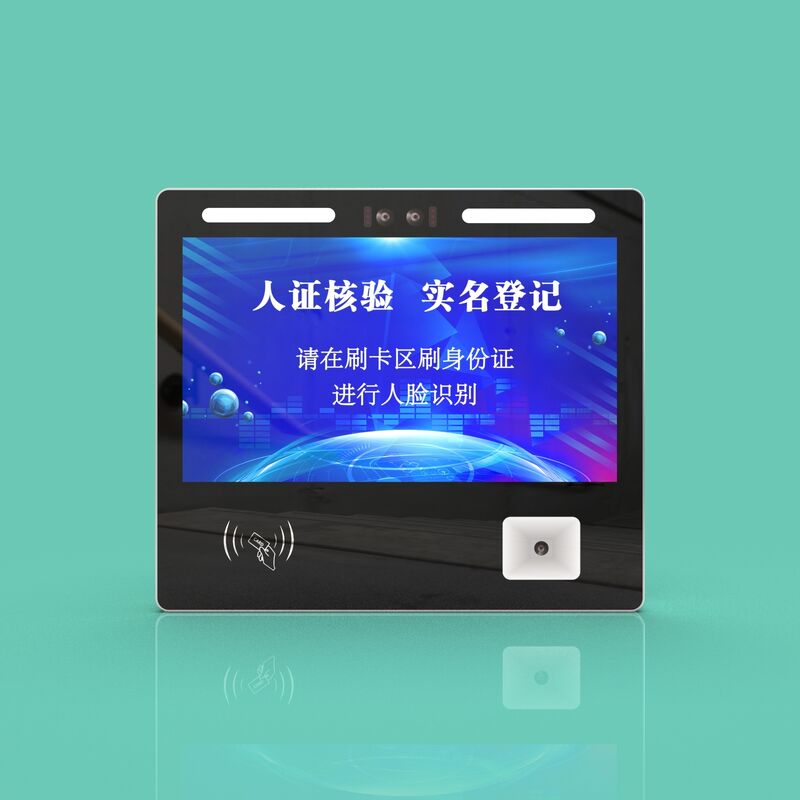

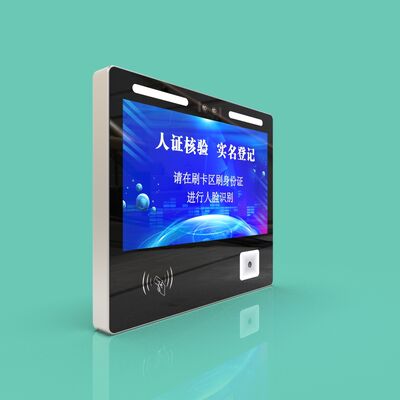

This 13-inch portrait-mounted wall-mounted IC card + QR code face recognition touch tablet is an identity verification device that integrates advanced facial recognition technology. It is specifically designed for visitor management and identity verification. With its large touch screen, high-definition camera, and powerful processing capabilities, it provides users with a secure and convenient identity verification solution.
Technical features:
1. High-definition display: The device is equipped with a 13.3-inch IPS color LCD screen with a resolution of 1920×1080, providing clear image display and smooth touch operation experience.
2. Facial recognition technology: It adopts deep learning algorithms, supports 1:N face comparison, facial recognition distance 0.3m - 2.0m, face comparison time less than 0.2 seconds, and face verification accuracy rate ≥ 99%.
3. QR code module: Supports QR codes and barcodes.
4. Multiple authentication methods: Supports face, card swiping (Mifare card/IC card, mobile phone NFC card, CPU card serial number, ID card serial number), password, etc. as multiple authentication methods, flexible combination, suitable for different security level application scenarios.
5. Network connection: Supports TCP/IP, WIFI, etc. network connection methods, convenient for remote management and data synchronization.
Application advantages:
Enhance security: Through biometric technology, effectively avoid risks such as password and fingerprint leakage, providing more secure privacy protection.
Improve efficiency: Fast identity verification process, reduces waiting time, improves passage efficiency.
Easy management: Supports remote management and data export, convenient for personnel management and attendance statistics.
Application scenarios:
Enterprise office: Realize rapid attendance and access control for employees.
Residential communities: Enhance community security, control visitor entry.
Commercial buildings: Conduct personnel identity verification and access control in shopping malls, office buildings, etc.
Public services: Such as hospitals, schools, etc., provide secure identity verification and visitor management.
| Specifications of the 13.3-inch QR code and facial recognition integrated access control terminal | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 MHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 13.3 inches | |
| screen resolution | 1920*1080 | |
| Viewing angle | IPS Full-View | |
| luminance | 300 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted operation 24/7 throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each point capable of withstanding over 50 million touches. | |
| camera | Dual-camera setup featuring visible light and infrared sensors with 2 million pixels, ultra-wide dynamic range, live detection support, resistance to backlighting and strong light, and selectable focal lengths. | |
| QR code image sensor | CMOS | |
| QR code resolution | 1280*720 | |
| QR Code Reading Standard | 2D: PDF417,QR Code, DataMatrix, etc | |
| 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc | ||
| QR code recognition accuracy | ≥5mil | |
| card reader | Optional IC/ID/NFC/ID card readers available; read time <1s; card reading range: 5–30 mm | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11B/G/N | |
| PDA | High-performance Bluetooth, supports BT V5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| Fill light | White LED light | |
| microphone | Optional | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH; Non-condensing | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm |
Dynamic face detection and tracking based on video streams, and 1:N recognition algorithms; Dynamic dual-camera anti-counterfeiting technology completely eliminates the possibility of fraud involving photos and videos across various media formats; Supports a facial recognition database of 50,000 photos and 1 million recognition records; For a face database of 50,000 individuals, the false recognition rate is 0.01%, and the pass rate is 97%. |
|
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Engineering | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
|
| Model Number: | 014 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 13.3 inches |
| Payment Terms: | T/T |
Product Overview:
This 13-inch portrait-mounted wall-mounted IC card + QR code face recognition touch tablet is an identity verification device that integrates advanced facial recognition technology. It is specifically designed for visitor management and identity verification. With its large touch screen, high-definition camera, and powerful processing capabilities, it provides users with a secure and convenient identity verification solution.
Technical features:
1. High-definition display: The device is equipped with a 13.3-inch IPS color LCD screen with a resolution of 1920×1080, providing clear image display and smooth touch operation experience.
2. Facial recognition technology: It adopts deep learning algorithms, supports 1:N face comparison, facial recognition distance 0.3m - 2.0m, face comparison time less than 0.2 seconds, and face verification accuracy rate ≥ 99%.
3. QR code module: Supports QR codes and barcodes.
4. Multiple authentication methods: Supports face, card swiping (Mifare card/IC card, mobile phone NFC card, CPU card serial number, ID card serial number), password, etc. as multiple authentication methods, flexible combination, suitable for different security level application scenarios.
5. Network connection: Supports TCP/IP, WIFI, etc. network connection methods, convenient for remote management and data synchronization.
Application advantages:
Enhance security: Through biometric technology, effectively avoid risks such as password and fingerprint leakage, providing more secure privacy protection.
Improve efficiency: Fast identity verification process, reduces waiting time, improves passage efficiency.
Easy management: Supports remote management and data export, convenient for personnel management and attendance statistics.
Application scenarios:
Enterprise office: Realize rapid attendance and access control for employees.
Residential communities: Enhance community security, control visitor entry.
Commercial buildings: Conduct personnel identity verification and access control in shopping malls, office buildings, etc.
Public services: Such as hospitals, schools, etc., provide secure identity verification and visitor management.
| Specifications of the 13.3-inch QR code and facial recognition integrated access control terminal | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 MHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 13.3 inches | |
| screen resolution | 1920*1080 | |
| Viewing angle | IPS Full-View | |
| luminance | 300 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted operation 24/7 throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each point capable of withstanding over 50 million touches. | |
| camera | Dual-camera setup featuring visible light and infrared sensors with 2 million pixels, ultra-wide dynamic range, live detection support, resistance to backlighting and strong light, and selectable focal lengths. | |
| QR code image sensor | CMOS | |
| QR code resolution | 1280*720 | |
| QR Code Reading Standard | 2D: PDF417,QR Code, DataMatrix, etc | |
| 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc | ||
| QR code recognition accuracy | ≥5mil | |
| card reader | Optional IC/ID/NFC/ID card readers available; read time <1s; card reading range: 5–30 mm | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11B/G/N | |
| PDA | High-performance Bluetooth, supports BT V5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| Fill light | White LED light | |
| microphone | Optional | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH; Non-condensing | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm |
Dynamic face detection and tracking based on video streams, and 1:N recognition algorithms; Dynamic dual-camera anti-counterfeiting technology completely eliminates the possibility of fraud involving photos and videos across various media formats; Supports a facial recognition database of 50,000 photos and 1 million recognition records; For a face database of 50,000 individuals, the false recognition rate is 0.01%, and the pass rate is 97%. |
|
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Engineering | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
