| Model Number: | JP2132A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |

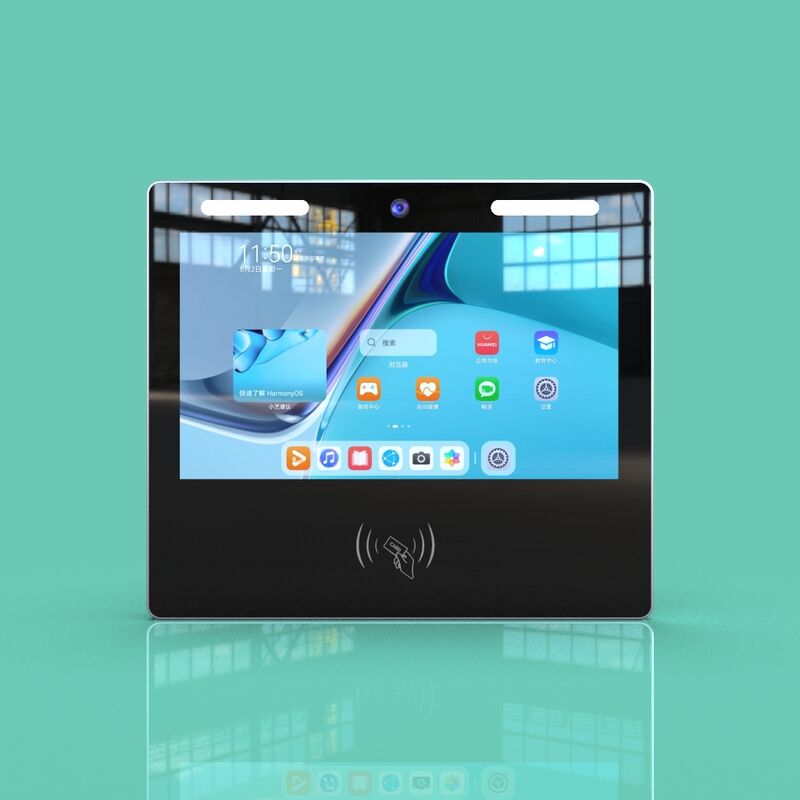

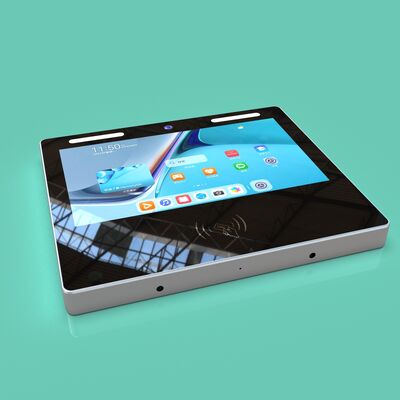

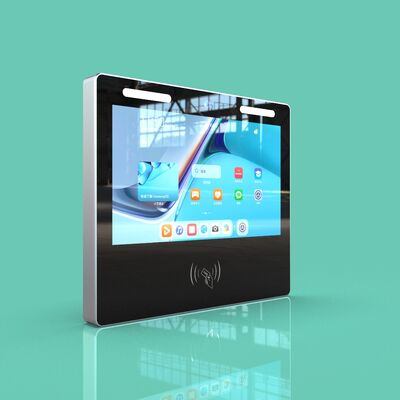

Product Name: 13-inch Horizontal Screen Wall-mounted Facial Recognition Swipe Card Access Control Integrated Machine
Core Advantages: Why choose this wall-mounted access control integrated machine?
1. 13-inch Full HD Large Screen, Wall-mounted Installation, Information Accessibility is More Efficient
Grand Screen-level Visual Experience: 13.3-inch IPS Full HD Touch Screen, with a resolution of 1080P, displaying details and colors clearly. When the screen is off, it is as dark as a black mirror, and when it is lit up, the information is immediately clear.
Wall-mounted Design, Space-friendly: Standard wall-mounted installation method, suitable for various wall scenarios such as lobbies, corridors, elevator lobbies, etc., without occupying floor space, neat and beautiful.
Multimedia Information Display: Based on the Android system, it supports image and video carousel playback, and can upgrade the access control terminal to an information display platform, pushing community announcements, enterprise publicity, and public welfare advertisements.
2. Resistant to Complex Light Conditions: Supports wide dynamic range reverse light recognition and infrared supplementary lighting, accurately recognizing even in harsh environments such as strong light, reverse light, and low light, suitable for indoor and outdoor scenarios.
Millisecond-level Rapid Recognition: Relying on deep learning algorithms, the face comparison time is ≤ 0.2 seconds per person, the verification accuracy rate is ≥ 99%, truly achieving seamless passage.
3. Multiple Verifications, Meeting All Scenarios of Passage Requirements
This machine supports multiple opening methods, flexibly adapting to the passage habits and security level requirements of different groups of people:
Face Recognition Opening: Core method, swiping the face to pass, no contact required.
Swipe Card Opening: Compatible with IC cards (Mifare/CPU cards), supporting various card types such as ordinary cards and coercive cards, convenient for the elderly or those who have difficulty swiping their faces.
| 13.3-Inch Dual-Authentication Face & Card Access Control Terminal Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 13.3 inches | |
| Screen Resolution | 1920*1080 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 300cd/m², super long life, stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | 2 million pixels, ultra-wide dynamic range, anti-backlight and strong light, selectable shooting focal length | |
| Speaker | Built-in 8Ω/3W*2 | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Card Reader | Optional IC/ID/NFC/ID card reader, reading time <1S, card reading distance: 5-30MM | |
| Fill Light | White LED light | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Working Parameters | Voltage 12V, current 3A, operating temperature-25℃～+75℃, humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can be connected to 485/232/relay | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, scratch-proof |
| Body Craftsmanship | Aluminum alloy CNC precision-machined and anodized frame + sheet metal back cover with powder coating finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
|
| Model Number: | JP2132A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 341mm × 295mm × 34mm |
| Payment Terms: | T/T |
Product Name: 13-inch Horizontal Screen Wall-mounted Facial Recognition Swipe Card Access Control Integrated Machine
Core Advantages: Why choose this wall-mounted access control integrated machine?
1. 13-inch Full HD Large Screen, Wall-mounted Installation, Information Accessibility is More Efficient
Grand Screen-level Visual Experience: 13.3-inch IPS Full HD Touch Screen, with a resolution of 1080P, displaying details and colors clearly. When the screen is off, it is as dark as a black mirror, and when it is lit up, the information is immediately clear.
Wall-mounted Design, Space-friendly: Standard wall-mounted installation method, suitable for various wall scenarios such as lobbies, corridors, elevator lobbies, etc., without occupying floor space, neat and beautiful.
Multimedia Information Display: Based on the Android system, it supports image and video carousel playback, and can upgrade the access control terminal to an information display platform, pushing community announcements, enterprise publicity, and public welfare advertisements.
2. Resistant to Complex Light Conditions: Supports wide dynamic range reverse light recognition and infrared supplementary lighting, accurately recognizing even in harsh environments such as strong light, reverse light, and low light, suitable for indoor and outdoor scenarios.
Millisecond-level Rapid Recognition: Relying on deep learning algorithms, the face comparison time is ≤ 0.2 seconds per person, the verification accuracy rate is ≥ 99%, truly achieving seamless passage.
3. Multiple Verifications, Meeting All Scenarios of Passage Requirements
This machine supports multiple opening methods, flexibly adapting to the passage habits and security level requirements of different groups of people:
Face Recognition Opening: Core method, swiping the face to pass, no contact required.
Swipe Card Opening: Compatible with IC cards (Mifare/CPU cards), supporting various card types such as ordinary cards and coercive cards, convenient for the elderly or those who have difficulty swiping their faces.
| 13.3-Inch Dual-Authentication Face & Card Access Control Terminal Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 13.3 inches | |
| Screen Resolution | 1920*1080 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 300cd/m², super long life, stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | 2 million pixels, ultra-wide dynamic range, anti-backlight and strong light, selectable shooting focal length | |
| Speaker | Built-in 8Ω/3W*2 | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Card Reader | Optional IC/ID/NFC/ID card reader, reading time <1S, card reading distance: 5-30MM | |
| Fill Light | White LED light | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Working Parameters | Voltage 12V, current 3A, operating temperature-25℃～+75℃, humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can be connected to 485/232/relay | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, scratch-proof |
| Body Craftsmanship | Aluminum alloy CNC precision-machined and anodized frame + sheet metal back cover with powder coating finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
