| Model Number: | 006 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
Product Overview:

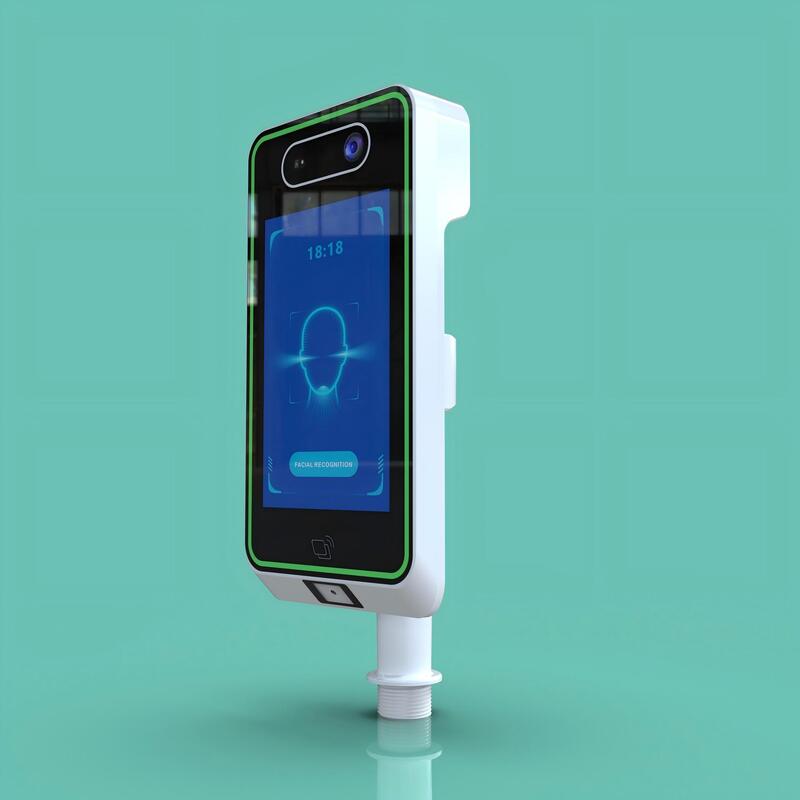

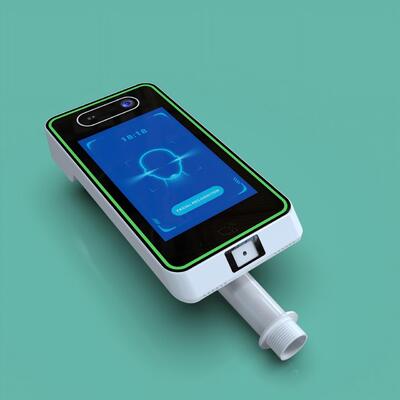

This product is an 8-inch high-performance access control terminal specially designed for the installation of access control gates and gate posts. It integrates three core verification methods: facial recognition, QR code scanning, and HID card swiping. The device is equipped with dual-lens live detection cameras and deep learning facial recognition algorithms, and has an HID card reading module. It can seamlessly integrate with the existing HID access control card system (supporting iCLASS, MIFARE, HID Prox, etc.), suitable for office buildings, smart parks, government institutions, etc., where HID access control systems have been deployed.
Key Features and Highlights:
1. Integrated HID card reading module, seamlessly compatible with existing access control systems
The device is equipped with an HID card reading module, supporting various mainstream card technologies:
High-frequency support: iCLASS Seos, iCLASS SE, iCLASS, MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, NFC mobile cards
Low-frequency support: HID Prox, Indala Prox, etc. 125kHz traditional cards
Mobile card support: supports HID Mobile Access mobile access and Apple Wallet cards
This means that enterprises do not need to replace the existing HID access control card system to achieve a smooth upgrade from facial recognition to card swiping verification.
2. Triple verification methods, flexible adaptation
Facial recognition: 2000W wide dynamic dual-lens camera, supports infrared live detection, effectively defending against photo, video, 3D mask, etc. forgery attacks. Facial recognition speed ≤ 0.2 seconds per person, recognition accuracy ≥ 99%.
QR code scanning: Built-in QR code recognition module, supports paper and screen QR code scanning, suitable for visitor scanning for passage, temporary authorization, etc.
HID card swiping: Integrated HID card reading module, supports various high-frequency/low-frequency cards, screen-under swiping design, convenient operation.
3. Access control dedicated design, 8-inch high-definition touch screen
Equipped with an 8-inch IPS high-definition touch screen, resolution 800×1280, vertical screen ratio conforms to the installation posture of access control posts, visualizes the face collection process, and clearly reflects the recognition results. The device is optimized for embedded installation in access control posts, compatible with standard hole specifications, and installation is convenient.
4. Industrial-level protection, adaptable to multiple scenarios
IP66/IP67 protection level: dust-proof and water-proof, can work normally in rain and spray conditions, suitable for indoor and outdoor access control scenarios.
Wide temperature range operation: working temperature range -25℃~65℃, adaptable to cold and hot environments.
Aluminum alloy body: sturdy and durable, with strong corrosion resistance.
5. High-performance configuration, large-capacity storage
Processor: high-performance industrial-grade processor, supports local offline 1:N rapid comparison.
Face database capacity: supports 50,000 face base databases.
Record capacity: more than 500,000 recognition records storage.
Disconnection continuous transmission: event records generated when the device is offline, automatically re-upload after connection to ensure data not lost.
6. Professional access control functions and rich interfaces
Access control management: supports access control time management, multiple card access, anti-backtracking, remote access functions
Interface configuration: standard RJ45 100M network port, Wi-Fi, optional 4G expansion module. Provides Wiegand input/output, RS232/RS485, relay output, door magnet detection, etc. interfaces, can be seamlessly connected with various access control controllers.
Applicable scenarios
Buildings/parks that have deployed HID access control system: No need to change cards, smooth upgrade to facial recognition access channels
Government agencies/financial outlets: High-security access channel identity verification
Multinational enterprises/foreign-funded office buildings: Standardized supporting facilities of HID access control system
Schools/libraries: Campus entrances and exits, library access control management
| Specifications of the 8-inch QR code integrated card-swiping terminal | ||
| essential parameter | operating system | Android 14; optional: Ubuntu 22.04 / Linux QT / Debian 12 |
| function | Rockchip RK3576S features a quad-core A72 and a quad-core A53, with a maximum clock speed of 2.2 GHz, 3 TOPS computing performance, and support for mixed-precision computing modes including INT4/INT8/INT16/FP16/BF16/TF32. | |
| configure | 4 GB of RAM + 32 GB of internal storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 8 inches | |
| screen resolution | 800*1280 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touches. | |
| camera | The HID device features built-in algorithmic cameras. | |
| QR code image sensor | CMOS | |
| QR code resolution | 1280*720 | |
| QR Code Scanning Standard | 2D: PDF417,QRCode,DataMatrix,etc | |
| 1D: Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar, Interleaved2of5,ITF-6,ITF-14,ISBN,Code93,UCC/EAN-128,GS1 Databar,Matrix2of5,Code11,Industrial2of5,Standard2of5, Plessey,MSI-Plessey,etc | ||
| QR code recognition accuracy | ≥5mil | |
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| WIFI | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports Bluetooth Technology Version 5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| microphone | Optional | |
| 4G | Optional | |
| POE | Optional | |
| Speaker | Built-in 8Ω/3W | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensing) | |
| outer joint | 1 x USB/OTG port, 1 x RJ45 standard interface, 1 x relay output, 1 x DC power supply, 1 x Vengen port, 1 x RS-232/485 port | |
| Face recognition algorithm | Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; dynamic dual-camera anti-counterfeiting capability, completely eliminating fraud in photos and videos across various media formats; supports a face database of 50,000 images and 1 million recognition records; when the face database contains 50,000 images, it achieves a false recognition rate of 0.01% and a pass rate of 97%. | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Engineering | CNC precision engraving and anodizing of aluminum alloy | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
|
|
| Model Number: | 006 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 8 inches |
| Payment Terms: | T/T |
Product Overview:
This product is an 8-inch high-performance access control terminal specially designed for the installation of access control gates and gate posts. It integrates three core verification methods: facial recognition, QR code scanning, and HID card swiping. The device is equipped with dual-lens live detection cameras and deep learning facial recognition algorithms, and has an HID card reading module. It can seamlessly integrate with the existing HID access control card system (supporting iCLASS, MIFARE, HID Prox, etc.), suitable for office buildings, smart parks, government institutions, etc., where HID access control systems have been deployed.
Key Features and Highlights:
1. Integrated HID card reading module, seamlessly compatible with existing access control systems
The device is equipped with an HID card reading module, supporting various mainstream card technologies:
High-frequency support: iCLASS Seos, iCLASS SE, iCLASS, MIFARE Classic, MIFARE DESFire EV1/EV2/EV3, NFC mobile cards
Low-frequency support: HID Prox, Indala Prox, etc. 125kHz traditional cards
Mobile card support: supports HID Mobile Access mobile access and Apple Wallet cards
This means that enterprises do not need to replace the existing HID access control card system to achieve a smooth upgrade from facial recognition to card swiping verification.
2. Triple verification methods, flexible adaptation
Facial recognition: 2000W wide dynamic dual-lens camera, supports infrared live detection, effectively defending against photo, video, 3D mask, etc. forgery attacks. Facial recognition speed ≤ 0.2 seconds per person, recognition accuracy ≥ 99%.
QR code scanning: Built-in QR code recognition module, supports paper and screen QR code scanning, suitable for visitor scanning for passage, temporary authorization, etc.
HID card swiping: Integrated HID card reading module, supports various high-frequency/low-frequency cards, screen-under swiping design, convenient operation.
3. Access control dedicated design, 8-inch high-definition touch screen
Equipped with an 8-inch IPS high-definition touch screen, resolution 800×1280, vertical screen ratio conforms to the installation posture of access control posts, visualizes the face collection process, and clearly reflects the recognition results. The device is optimized for embedded installation in access control posts, compatible with standard hole specifications, and installation is convenient.
4. Industrial-level protection, adaptable to multiple scenarios
IP66/IP67 protection level: dust-proof and water-proof, can work normally in rain and spray conditions, suitable for indoor and outdoor access control scenarios.
Wide temperature range operation: working temperature range -25℃~65℃, adaptable to cold and hot environments.
Aluminum alloy body: sturdy and durable, with strong corrosion resistance.
5. High-performance configuration, large-capacity storage
Processor: high-performance industrial-grade processor, supports local offline 1:N rapid comparison.
Face database capacity: supports 50,000 face base databases.
Record capacity: more than 500,000 recognition records storage.
Disconnection continuous transmission: event records generated when the device is offline, automatically re-upload after connection to ensure data not lost.
6. Professional access control functions and rich interfaces
Access control management: supports access control time management, multiple card access, anti-backtracking, remote access functions
Interface configuration: standard RJ45 100M network port, Wi-Fi, optional 4G expansion module. Provides Wiegand input/output, RS232/RS485, relay output, door magnet detection, etc. interfaces, can be seamlessly connected with various access control controllers.
Applicable scenarios
Buildings/parks that have deployed HID access control system: No need to change cards, smooth upgrade to facial recognition access channels
Government agencies/financial outlets: High-security access channel identity verification
Multinational enterprises/foreign-funded office buildings: Standardized supporting facilities of HID access control system
Schools/libraries: Campus entrances and exits, library access control management
| Specifications of the 8-inch QR code integrated card-swiping terminal | ||
| essential parameter | operating system | Android 14; optional: Ubuntu 22.04 / Linux QT / Debian 12 |
| function | Rockchip RK3576S features a quad-core A72 and a quad-core A53, with a maximum clock speed of 2.2 GHz, 3 TOPS computing performance, and support for mixed-precision computing modes including INT4/INT8/INT16/FP16/BF16/TF32. | |
| configure | 4 GB of RAM + 32 GB of internal storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 8 inches | |
| screen resolution | 800*1280 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touches. | |
| camera | The HID device features built-in algorithmic cameras. | |
| QR code image sensor | CMOS | |
| QR code resolution | 1280*720 | |
| QR Code Scanning Standard | 2D: PDF417,QRCode,DataMatrix,etc | |
| 1D: Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar, Interleaved2of5,ITF-6,ITF-14,ISBN,Code93,UCC/EAN-128,GS1 Databar,Matrix2of5,Code11,Industrial2of5,Standard2of5, Plessey,MSI-Plessey,etc | ||
| QR code recognition accuracy | ≥5mil | |
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| WIFI | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports Bluetooth Technology Version 5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| microphone | Optional | |
| 4G | Optional | |
| POE | Optional | |
| Speaker | Built-in 8Ω/3W | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH (non-condensing) | |
| outer joint | 1 x USB/OTG port, 1 x RJ45 standard interface, 1 x relay output, 1 x DC power supply, 1 x Vengen port, 1 x RS-232/485 port | |
| Face recognition algorithm | Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; dynamic dual-camera anti-counterfeiting capability, completely eliminating fraud in photos and videos across various media formats; supports a face database of 50,000 images and 1 million recognition records; when the face database contains 50,000 images, it achieves a false recognition rate of 0.01% and a pass rate of 97%. | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Engineering | CNC precision engraving and anodizing of aluminum alloy | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
