Product Overview:

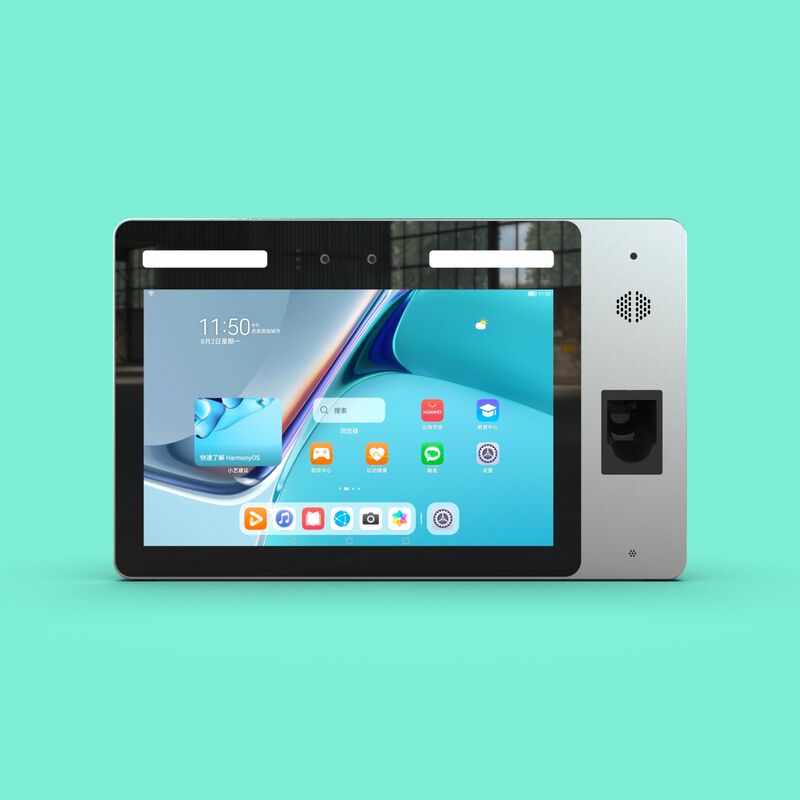

This product is a high-performance 10.1-inch horizontal wall-mounted access control terminal that integrates dual biometric authentication technologies such as facial recognition and finger vein recognition, along with various verification methods including passwords. The device features a 10.1-inch horizontal high-definition screen (with a resolution of 1280×800) and is equipped with a deep learning facial recognition algorithm and a wide dynamic dual-camera system. It supports wall-mounted installation and can be widely applied in high-security access control areas such as financial outlets, data centers, laboratories, and vaults.

Key Features and Highlights:
1. Finger Vein Recognition - Higher Security Level of Biometric Authentication
Unlike conventional facial or fingerprint recognition, finger vein recognition technology captures the distribution map of subcutaneous veins through near-infrared light transmission to authenticate identities. Its core advantages include:
- Extremely difficult to forge: The identification is based on the internal vascular features of the finger, hidden beneath the skin, and cannot be replicated through photos, fingerprint membranes, or 3D printing.
- Mandatory live body detection: Only flowing blood can generate effective near-infrared absorption signals, and live body detection is naturally integrated.
- Ultra-high accuracy: The false acceptance rate (FAR) can be lower than 0.0001%, and the false rejection rate (FRR) is ≤ 0.01%.
- Not affected by the surface condition of the finger: Dehydration, sweating, moisture, or wear and tear do not affect the recognition effect.
2. Dual Authentication of Face + Finger Vein, Security Upgrade
The device supports dual-modal biometric authentication of facial recognition and finger vein recognition, and can be flexibly configured as single verification or combined verification mode:
Facial Recognition: Equipped with 200,000 wide dynamic dual-camera, the recognition speed is ≤ 0.2 seconds per person, with an accuracy rate of ≥ 99.5%, and supports live body detection to prevent photo/video attacks.
Finger Vein Recognition: Utilizes a high-precision finger vein collection module, with verification speed ≤ 1 second (1:1 mode) or ≤ 2 seconds (1:N mode).
Three verification options are available: face, finger vein, password, and combination verification.
3. 10.1-inch Horizontal High-Definition Screen, Excellent Interaction Experience
Equipped with a 10.1-inch IPS high-definition touch screen, with a resolution of 1280×800, and a 16:10 horizontal screen ratio. The screen brightness can reach 500cd/m², and is still clear even in strong light. The 10.1-inch large screen provides a wider field of view when displaying identification results, personnel information, notifications, or enterprise promotional content.
4. Large-capacity Storage, Local Offline Operation
The device is equipped with a high-performance processor (with RK3568 quad-core Cortex-A55 and NPU computing power of 1Tops), with a facial recognition database capacity of up to 50,000 entries, and a finger vein capacity of 6,000 to 12,000 entries. Event records can reach 100,000 to 500,000 entries, meeting the needs of large and medium-sized venues.
5. Industrial-grade Design, Wall-mounted Installation

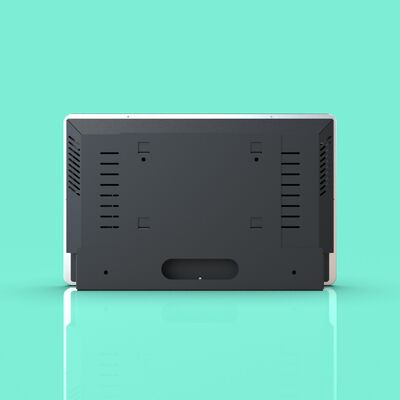

Wall-mounted installation: Standardized metal mounting plates are provided, and wall-mounted installation is supported.
Wide temperature range operation: Working temperature range is -20℃ to 70℃, suitable for cold and hot environments.
Aluminum alloy body + tempered glass panel: Strong and durable, with strong corrosion resistance.
6. Rich Interfaces and System Integration
Communication methods: Standard RJ45 gigabit network ports and Wi-Fi, optional 4G expansion module
Interface configuration: Provides Wiegand input/output, RS485, relay output, USB 3.0, etc., and can be seamlessly integrated with various access control controllers
Secondary development: Provides standard SDK, supporting integration with third-party access control management systems, attendance systems, or OA platforms
Application Scenarios:
Financial outlets/banks: High-security areas in vaults and business halls
Data centers/rooms: Personnel access management in core equipment areas
Laboratories/research centers: High-value asset protection areas
Government agencies/military units: High-security level venues for identity verification
Enterprises/office buildings: High-security attendance management to prevent proxy打卡
