| Model Number: | JP2137A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |

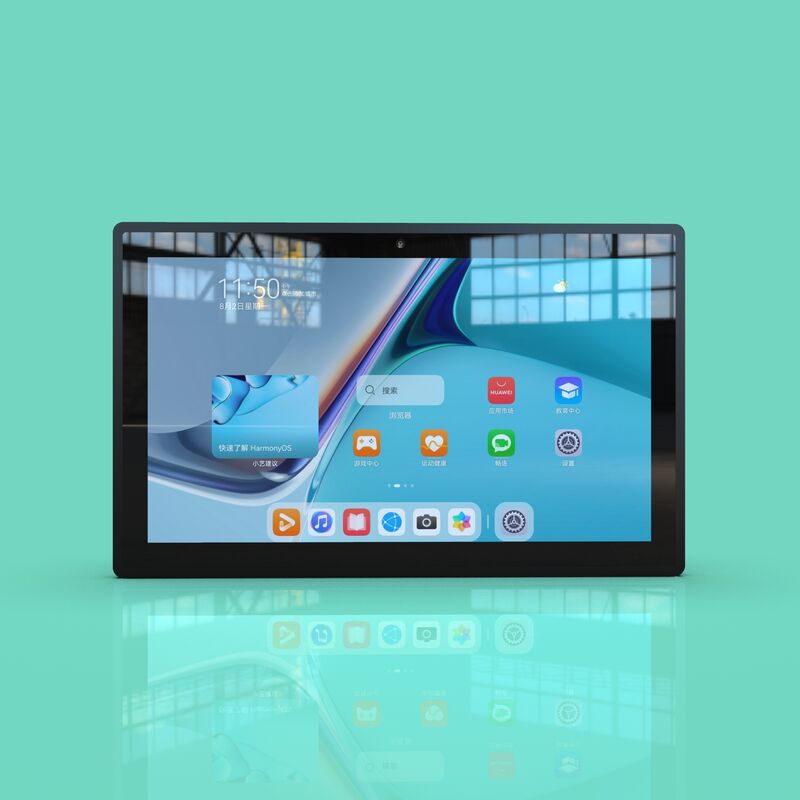

Product Name: 13.3-inch Embedded Camera-Enabled Touchscreen Android All-in-One Machine
13.3-inch Embedded Camera-Enabled Touchscreen Android All-in-One Machine: An integrated intelligent interaction terminal, empowering new experiences in smart scenarios
Are you still troubled by the fragmentation of devices, messy desktops, and incompatible systems? This 13.3-inch embedded Android all-in-one machine integrates a high-definition touchscreen, high-definition camera, and a powerful motherboard. With a flat embedded design, it seamlessly integrates into various terminal devices, providing a one-stop Android intelligent interaction solution for smart offices, smart retail, healthcare, and industrial scenarios.
In the wave of the Internet of Things and intelligent upgrades, the management complexity, experience fragmentation, and space waste problems caused by separate dedicated devices have become increasingly prominent. Our 13.3-inch embedded camera-enabled touchscreen Android all-in-one machine is precisely designed to break through this bottleneck - it adopts a flat embedded design, perfectly adapting to various cabinet, desktop, and wall-mounted scenarios, integrating flagship-level Android system capabilities, high-definition vision, and AI visual recognition, helping you achieve the most efficient intelligent upgrade with the minimum space occupation.
| 13.3-Inch Embedded Touch Screen Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 13.3 inches | |
| Screen Resolution | 1920*1080 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 300cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | 2 million pixels, ultra-wide dynamic range, anti-backlight and strong light, selectable shooting focal length | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can connect to 485/232/relay | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | ABS+PC plastic middle frame + sheet metal bending and powder coating process | |
| Color | Black | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Embedded Installation | |
|
|
| Model Number: | JP2137A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 341mm × 295mm × 34mm |
| Payment Terms: | T/T |
Product Name: 13.3-inch Embedded Camera-Enabled Touchscreen Android All-in-One Machine
13.3-inch Embedded Camera-Enabled Touchscreen Android All-in-One Machine: An integrated intelligent interaction terminal, empowering new experiences in smart scenarios
Are you still troubled by the fragmentation of devices, messy desktops, and incompatible systems? This 13.3-inch embedded Android all-in-one machine integrates a high-definition touchscreen, high-definition camera, and a powerful motherboard. With a flat embedded design, it seamlessly integrates into various terminal devices, providing a one-stop Android intelligent interaction solution for smart offices, smart retail, healthcare, and industrial scenarios.
In the wave of the Internet of Things and intelligent upgrades, the management complexity, experience fragmentation, and space waste problems caused by separate dedicated devices have become increasingly prominent. Our 13.3-inch embedded camera-enabled touchscreen Android all-in-one machine is precisely designed to break through this bottleneck - it adopts a flat embedded design, perfectly adapting to various cabinet, desktop, and wall-mounted scenarios, integrating flagship-level Android system capabilities, high-definition vision, and AI visual recognition, helping you achieve the most efficient intelligent upgrade with the minimum space occupation.
| 13.3-Inch Embedded Touch Screen Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 13.3 inches | |
| Screen Resolution | 1920*1080 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 300cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | 2 million pixels, ultra-wide dynamic range, anti-backlight and strong light, selectable shooting focal length | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can connect to 485/232/relay | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | ABS+PC plastic middle frame + sheet metal bending and powder coating process | |
| Color | Black | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Embedded Installation | |
