| Model Number: | 020 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Key highlights

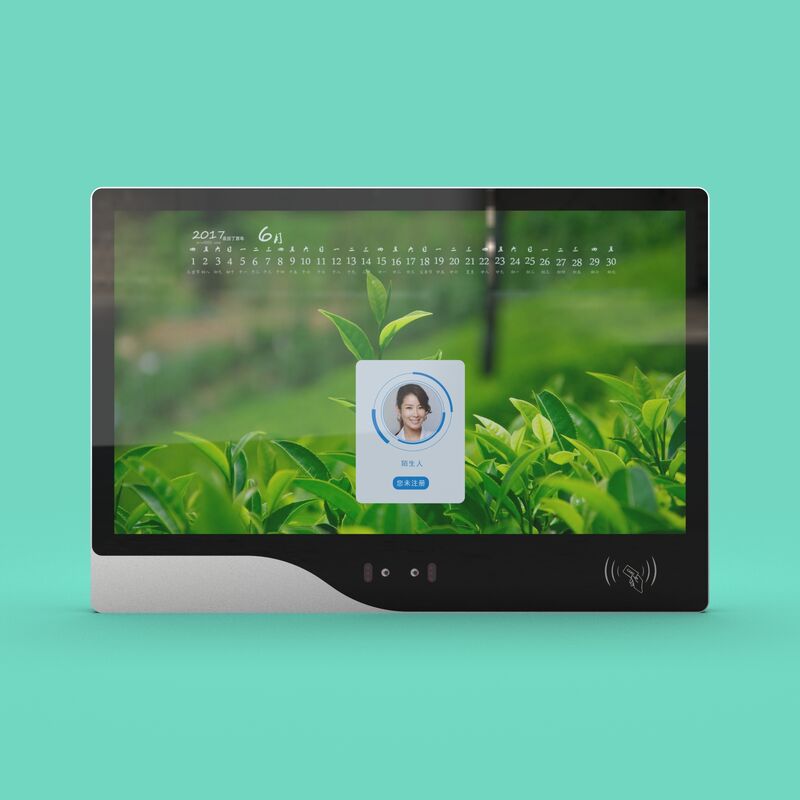

21.5-inch full HD horizontal screen, clear viewing even in strong light
Equipped with a 21.5-inch IPS touch screen with a resolution of 1920×1080 and a 16:9 aspect ratio. The screen brightness can reach 500cd/m², remaining clear even in outdoor strong light. It supports split-screen playback of advertisements and converts access points into information dissemination windows.
Aluminum alloy body + professional outdoor protection
The device features a high-strength aluminum casting shell and a tempered glass panel, providing durability and strong corrosion resistance. The overall protection level reaches IP65, protecting against dust and rain, and capable of operating in a wide temperature range of -20°C to 70°C.
Dual-eye live detection, resisting various forgery attacks
Equipped with a 2 million wide dynamic dual-eye camera, supporting dual-eye infrared live detection, effectively defending against forgery attacks such as photos, videos, and 3D masks. The starlight-level image sensor still provides stable recognition in low-light environments, with a recognition distance of 0.3 to 3 meters.
Deep learning algorithm, large capacity for precise identification
Based on deep learning algorithms, it supports local offline 1:N face comparison: face capacity of 50,000, card capacity of 100,000, and record capacity of 500,000. The recognition speed is ≤ 0.3 seconds per person.
Multiple verifications and professional access control functions
Supports face recognition and IC card swipe verification. Comes with Ethernet and Wi-Fi, and can be optionally equipped with 4G communication.
Applicable scenarios
Outdoor and semi-outdoor scenarios such as community/park entrances and exits, campus access control, enterprise lobbies, factory corridors, and parking lot entrances and exits
| Specifications of the 21.5-inch TCP/IP network-integrated access control console | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 GHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 21.5 inches | |
| screen resolution | 1920*1080 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted operation 24/7 throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touch operations. | |
| camera | 2-megapixel sensor, ultra-wide dynamic range, live detection support, anti-backlight and high-light performance, and selectable focal lengths. | |
| Speaker | Built-in 8Ω/3W*2 | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports BT V5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| microphone | Optional | |
| 4G | Optional | |
| POE | Optional | |
| operational parameter | Voltage: 12 V; Current: 4 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH; Non-condensable | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm |
Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting technology completely eliminates the possibility of fraud involving photos and videos across various media formats; Supports a facial recognition photo database of 50,000 images and 1 million recognition records; For a face database of 50,000 individuals, the false acceptance rate is 0.01%, and the pass rate is 97%. |
|
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Technology | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
|
|
| Model Number: | 020 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 524mm × 415mm × 36mm |
| Payment Terms: | T/T |
Key highlights
21.5-inch full HD horizontal screen, clear viewing even in strong light
Equipped with a 21.5-inch IPS touch screen with a resolution of 1920×1080 and a 16:9 aspect ratio. The screen brightness can reach 500cd/m², remaining clear even in outdoor strong light. It supports split-screen playback of advertisements and converts access points into information dissemination windows.
Aluminum alloy body + professional outdoor protection
The device features a high-strength aluminum casting shell and a tempered glass panel, providing durability and strong corrosion resistance. The overall protection level reaches IP65, protecting against dust and rain, and capable of operating in a wide temperature range of -20°C to 70°C.
Dual-eye live detection, resisting various forgery attacks
Equipped with a 2 million wide dynamic dual-eye camera, supporting dual-eye infrared live detection, effectively defending against forgery attacks such as photos, videos, and 3D masks. The starlight-level image sensor still provides stable recognition in low-light environments, with a recognition distance of 0.3 to 3 meters.
Deep learning algorithm, large capacity for precise identification
Based on deep learning algorithms, it supports local offline 1:N face comparison: face capacity of 50,000, card capacity of 100,000, and record capacity of 500,000. The recognition speed is ≤ 0.3 seconds per person.
Multiple verifications and professional access control functions
Supports face recognition and IC card swipe verification. Comes with Ethernet and Wi-Fi, and can be optionally equipped with 4G communication.
Applicable scenarios
Outdoor and semi-outdoor scenarios such as community/park entrances and exits, campus access control, enterprise lobbies, factory corridors, and parking lot entrances and exits
| Specifications of the 21.5-inch TCP/IP network-integrated access control console | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 GHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 21.5 inches | |
| screen resolution | 1920*1080 | |
| Viewing angle | IPS Full-View | |
| luminance | 500 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted operation 24/7 throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each touch point capable of withstanding over 50 million touch operations. | |
| camera | 2-megapixel sensor, ultra-wide dynamic range, live detection support, anti-backlight and high-light performance, and selectable focal lengths. | |
| Speaker | Built-in 8Ω/3W*2 | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports BT V5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| microphone | Optional | |
| 4G | Optional | |
| POE | Optional | |
| operational parameter | Voltage: 12 V; Current: 4 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH; Non-condensable | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm |
Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting technology completely eliminates the possibility of fraud involving photos and videos across various media formats; Supports a facial recognition photo database of 50,000 images and 1 million recognition records; For a face database of 50,000 individuals, the false acceptance rate is 0.01%, and the pass rate is 97%. |
|
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Process Technology | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition verification. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
