| Model Number: | JP1152A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

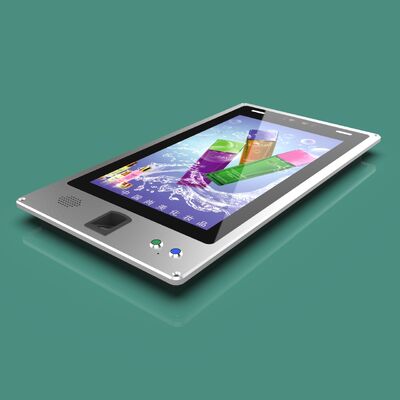

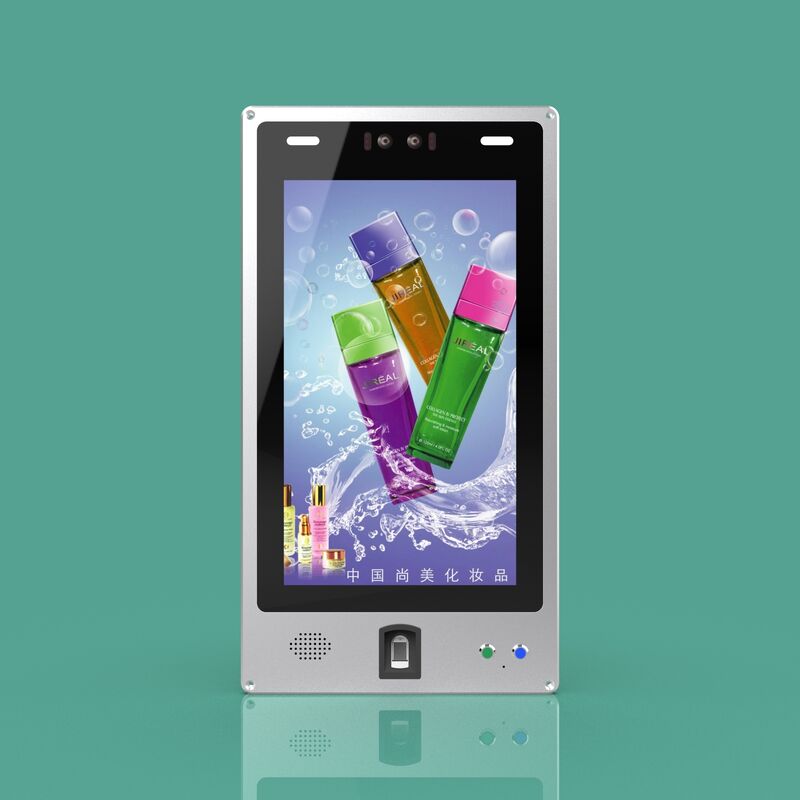

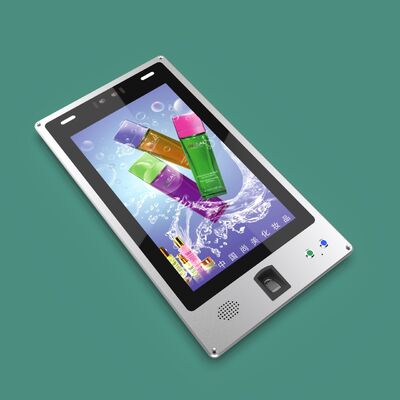

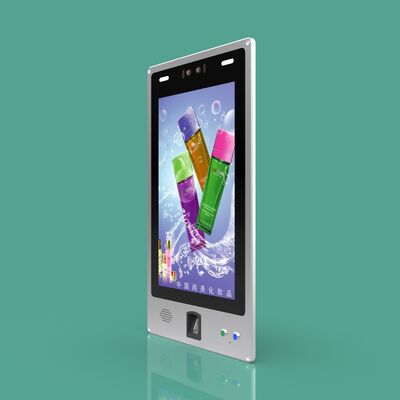

This 15.6-inch wall-mounted all-metal facial recognition fingerprint identification access control integrated machine is a high-performance and highly reliable intelligent access control device. It features a full-metal casing design, offering robust and durable characteristics, while also incorporating advanced facial recognition and fingerprint recognition technologies, providing users with a fast and secure access experience.
Technical Features:
1. Full Metal Shell: Made with 6-series aluminum alloy technology, CNC all-metal body with a high-contrast explosion-proof screen, waterproof and explosion-proof, suitable for outdoor use in all scenarios, all seasons, and all weather conditions.
2. High-Definition Display: Equipped with a 15.6-inch LCD vertical touch screen.
3. Facial Recognition Technology: Utilizes deep learning algorithms, supporting 1:N matching authentication methods, with an identification speed of ≤ 0.3 seconds and an identification distance of up to 2 meters, and an identification accuracy rate of ≥ 99.9%.
4. Fingerprint Recognition: Supports fingerprint recognition functionality, providing fast and accurate fingerprint authentication.
5. Multi-Function Modules: Supports Bluetooth and fingerprint, allowing users to configure flexibly according to different scenarios and needs.
6. Wide Dynamic Technology: Supports wide dynamic technology, enhancing the identification speed and accuracy in low-light environments.
7. AI Dimming Technology: Utilizes AI dimming technology, enabling automatic infrared illumination within 1.2 meters, improving identification accuracy.
Application Advantages:
Enhanced Security: Through biometric technology, effectively enhances the security of identity verification.
Increased Efficiency: Fast identification speed and accurate identification rate effectively improve work efficiency.
Application Scenarios:
Office Buildings: Widely used in office buildings, parks, schools, apartments, hotels, enterprises, governments, and scenic area exhibition halls, helping to achieve intelligent security control.
Corporate Offices: Provides employees with quick attendance and access control management.
Residential Communities: Enhances community security management and controls access for visitors.
| 15.6-Inch High-End Community Fingerprint and Face Access Control Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 15.6 inches | |
| Screen Resolution | 1080*1920 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| Fingerprint Collection and Recognition Module | Collection method: Capacitive area-array semiconductor sensor, flat pressing | |
| Storage capacity: 500 pieces | ||
| Security level: Level 5 (from low to high: 1, 2, 3, 4, 5) | ||
| False recognition rate (FAR):<0.001% (Security Level:3 ) | ||
| False rejection rate (FRR):<0.1 %(Security Level:3 ) | ||
| Collection window size: 20.4MM*33.4MM | ||
| Image size: 192*192 pixel (efficient 192*192 pixel) | ||
| Image pixels: 508 DPI | ||
| Matching method: Comparison method (1:1)Search method (1:N)(When 500 pieces are fully registered) < 1 second | ||
| Self-learning: Yes | ||
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Microphone | Optional | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can connect to 485/232/relay | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | Aluminum alloy CNC carved anodized frame + back shell sheet metal powder coating process | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
|
| Model Number: | JP1152A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 15.6 inches |
| Payment Terms: | T/T |
Product Overview:
This 15.6-inch wall-mounted all-metal facial recognition fingerprint identification access control integrated machine is a high-performance and highly reliable intelligent access control device. It features a full-metal casing design, offering robust and durable characteristics, while also incorporating advanced facial recognition and fingerprint recognition technologies, providing users with a fast and secure access experience.
Technical Features:
1. Full Metal Shell: Made with 6-series aluminum alloy technology, CNC all-metal body with a high-contrast explosion-proof screen, waterproof and explosion-proof, suitable for outdoor use in all scenarios, all seasons, and all weather conditions.
2. High-Definition Display: Equipped with a 15.6-inch LCD vertical touch screen.
3. Facial Recognition Technology: Utilizes deep learning algorithms, supporting 1:N matching authentication methods, with an identification speed of ≤ 0.3 seconds and an identification distance of up to 2 meters, and an identification accuracy rate of ≥ 99.9%.
4. Fingerprint Recognition: Supports fingerprint recognition functionality, providing fast and accurate fingerprint authentication.
5. Multi-Function Modules: Supports Bluetooth and fingerprint, allowing users to configure flexibly according to different scenarios and needs.
6. Wide Dynamic Technology: Supports wide dynamic technology, enhancing the identification speed and accuracy in low-light environments.
7. AI Dimming Technology: Utilizes AI dimming technology, enabling automatic infrared illumination within 1.2 meters, improving identification accuracy.
Application Advantages:
Enhanced Security: Through biometric technology, effectively enhances the security of identity verification.
Increased Efficiency: Fast identification speed and accurate identification rate effectively improve work efficiency.
Application Scenarios:
Office Buildings: Widely used in office buildings, parks, schools, apartments, hotels, enterprises, governments, and scenic area exhibition halls, helping to achieve intelligent security control.
Corporate Offices: Provides employees with quick attendance and access control management.
Residential Communities: Enhances community security management and controls access for visitors.
| 15.6-Inch High-End Community Fingerprint and Face Access Control Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 15.6 inches | |
| Screen Resolution | 1080*1920 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| Fingerprint Collection and Recognition Module | Collection method: Capacitive area-array semiconductor sensor, flat pressing | |
| Storage capacity: 500 pieces | ||
| Security level: Level 5 (from low to high: 1, 2, 3, 4, 5) | ||
| False recognition rate (FAR):<0.001% (Security Level:3 ) | ||
| False rejection rate (FRR):<0.1 %(Security Level:3 ) | ||
| Collection window size: 20.4MM*33.4MM | ||
| Image size: 192*192 pixel (efficient 192*192 pixel) | ||
| Image pixels: 508 DPI | ||
| Matching method: Comparison method (1:1)Search method (1:N)(When 500 pieces are fully registered) < 1 second | ||
| Self-learning: Yes | ||
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Microphone | Optional | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
| External Interfaces | 2 USB, 1 RJ45, 1 DC, 1 headphone, 1 TF card slot, 1 SIM card slot, 1 HDMI, can connect to 485/232/relay | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | Aluminum alloy CNC carved anodized frame + back shell sheet metal powder coating process | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
