| Brand Name: | Shi Zun |
| Model Number: | JP182A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T |
Product Overview:

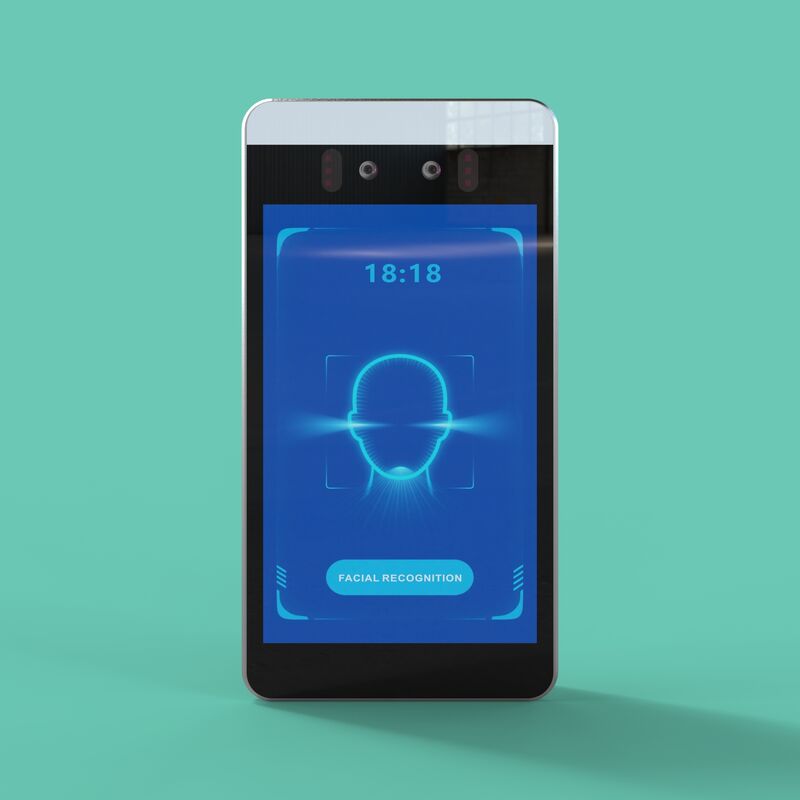

This product is a high-performance 8-inch vertical screen facial recognition access control and attendance integrated machine. It adopts a wall-mounted installation design and is equipped with a deep learning facial recognition algorithm. The device has a large-capacity storage and supports local offline operation, widely used in indoor and outdoor places such as safe communities, enterprises and institutions, smart parks, and financial outlets.
Core functions and highlights:
1. 8-inch high-definition vertical screen, clear interaction experience
Equipped with an 8-inch IPS touch display with a resolution of 1280×800. The vertical screen ratio is in line with the wall-mounted installation posture. The screen has a high coverage rate, and the real-time display of the captured image by the camera is on the entire screen, making the face capture process visualized and the operation intuitive and convenient.
2. Dual-eye live detection, financial-grade security anti-counterfeiting
Using a 2 million wide dynamic dual-eye camera and a black light-level image sensor, it supports dual-eye infrared live detection, which can effectively defend against fake attacks such as mobile phone photos, video playback, and 3D masks. It can stably identify in an ultra-low illumination environment of 0.5 lux to a strong light environment of 50,000 lux, suitable for indoor and outdoor scenarios.
3. Deep learning algorithm, fast and accurate recognition
Based on the deep learning algorithm, it supports local offline 1:N face comparison. The face recognition speed is ≤ 0.2 seconds per person, and the verification accuracy rate is > 99%. The face database can support up to 50,000 images, and the record capacity can reach 200,000 entries, meeting the attendance requirements of medium-sized enterprises.
5. Professional access control functions and rich interfaces
Disconnection continuous transmission: The event records generated when the device is offline will be automatically re-uploaded after connecting to the network, ensuring no data loss
Communication interfaces: Standard RJ45 100M network port, Wi-Fi. Some models support 4G expansion module, Weigang input/output, RS485/RS232, door lock control, door magnet detection, etc.
6. Industrial-grade design, suitable for multi-scenario installation
Wall-mounted installation: Standard metal hanging plate, supports wall-mounted installation, compatible with standard 86 bottom box
Wide temperature range operation: Working temperature range is -30℃ to 60℃, suitable for cold and hot environments
IP protection level: Some models can reach IP66/IP68 dust-proof and waterproof level, suitable for semi-outdoor and outdoor scenarios.
Applicable scenarios
Enterprise/Office Building: Employee attendance check-in, access control
Smart Park/Factory: Personnel passage control, attendance statistics
Government Institution/Financial Outlet: High-security identity verification
Smart Campus/Community: Campus entrances, unit access control
| 8-Inch Facial Recognition Attendance Machine Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 8 inches | |
| Screen Resolution | 800*1280 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Three-Color Indicator Light | Red, white, green | |
| Microphone | Optional | |
| 4G | Optional | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 1 USB/OTG, 1 RJ45 standard interface, 1 relay output, 1 DC power supply, 1 Wiegand, 1 232/485 | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful facial comparison |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
|
| Brand Name: | Shi Zun |
| Model Number: | JP182A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 8 inches |
| Payment Terms: | T/T |
Product Overview:
This product is a high-performance 8-inch vertical screen facial recognition access control and attendance integrated machine. It adopts a wall-mounted installation design and is equipped with a deep learning facial recognition algorithm. The device has a large-capacity storage and supports local offline operation, widely used in indoor and outdoor places such as safe communities, enterprises and institutions, smart parks, and financial outlets.
Core functions and highlights:
1. 8-inch high-definition vertical screen, clear interaction experience
Equipped with an 8-inch IPS touch display with a resolution of 1280×800. The vertical screen ratio is in line with the wall-mounted installation posture. The screen has a high coverage rate, and the real-time display of the captured image by the camera is on the entire screen, making the face capture process visualized and the operation intuitive and convenient.
2. Dual-eye live detection, financial-grade security anti-counterfeiting
Using a 2 million wide dynamic dual-eye camera and a black light-level image sensor, it supports dual-eye infrared live detection, which can effectively defend against fake attacks such as mobile phone photos, video playback, and 3D masks. It can stably identify in an ultra-low illumination environment of 0.5 lux to a strong light environment of 50,000 lux, suitable for indoor and outdoor scenarios.
3. Deep learning algorithm, fast and accurate recognition
Based on the deep learning algorithm, it supports local offline 1:N face comparison. The face recognition speed is ≤ 0.2 seconds per person, and the verification accuracy rate is > 99%. The face database can support up to 50,000 images, and the record capacity can reach 200,000 entries, meeting the attendance requirements of medium-sized enterprises.
5. Professional access control functions and rich interfaces
Disconnection continuous transmission: The event records generated when the device is offline will be automatically re-uploaded after connecting to the network, ensuring no data loss
Communication interfaces: Standard RJ45 100M network port, Wi-Fi. Some models support 4G expansion module, Weigang input/output, RS485/RS232, door lock control, door magnet detection, etc.
6. Industrial-grade design, suitable for multi-scenario installation
Wall-mounted installation: Standard metal hanging plate, supports wall-mounted installation, compatible with standard 86 bottom box
Wide temperature range operation: Working temperature range is -30℃ to 60℃, suitable for cold and hot environments
IP protection level: Some models can reach IP66/IP68 dust-proof and waterproof level, suitable for semi-outdoor and outdoor scenarios.
Applicable scenarios
Enterprise/Office Building: Employee attendance check-in, access control
Smart Park/Factory: Personnel passage control, attendance statistics
Government Institution/Financial Outlet: High-security identity verification
Smart Campus/Community: Campus entrances, unit access control
| 8-Inch Facial Recognition Attendance Machine Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 8 inches | |
| Screen Resolution | 800*1280 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Three-Color Indicator Light | Red, white, green | |
| Microphone | Optional | |
| 4G | Optional | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 1 USB/OTG, 1 RJ45 standard interface, 1 relay output, 1 DC power supply, 1 Wiegand, 1 232/485 | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful facial comparison |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
