Product Overview:

This product is a high-performance 8-inch wall-mounted access control and attendance machine, integrating two verification methods: facial recognition and IC card swipe. It adopts industrial-grade hardware design and deep learning facial recognition algorithm, supporting dual-eye live body detection, which can effectively defend against forged attacks such as photos, videos, and 3D masks. The equipment is widely used in enterprise attendance, smart parks, community unit doors, office building entrances and other places.

Core functions and highlights:
1. Dual verification methods, safe and flexible
The device supports both recognition methods simultaneously, meeting the passage needs of different user groups:

Facial recognition: Uses a 200,000-pixel wide dynamic dual-eye camera, supports infrared live body detection, which can effectively defend against forged attacks such as photos, videos, and 3D masks. The face comparison time is ≤ 0.2 seconds per person, and the verification accuracy rate is ≥ 99%.

IC card swipe: Built-in 13.56 MHz RFID reading module, supports Mifare IC cards, NFC mobile phone cards, CPU cards, etc., with a swipe distance of 3~8 cm.

2. 8-inch high-definition vertical screen, clear interaction experience
Equipped with an 8-inch IPS touch display, with a resolution of 800×1280, the vertical screen ratio fits the wall-mounted installation posture. The screen has a high coverage rate, visualizing the face collection process, and clearly reflecting the recognition results, with intuitive and convenient operation.

3. Deep learning algorithm, fast and accurate recognition
Based on deep learning algorithms, it supports local offline 1:N face comparison, without relying on the cloud to complete recognition. It supports 50,000 face base libraries and over 200,000 recognition records storage, meeting the attendance needs of medium-sized enterprises. It supports the function of continuous transmission when offline, and the event records generated when the device is offline will be automatically re-uploaded after connecting to the network, ensuring no data loss.

4. Rich interfaces

Interface configuration: Standard configuration includes RJ45 100M network port, Wi-Fi, and optional 4G expansion module. Provides Wiegand input/output, RS485, relay output, door magnet detection, door opening button, etc. interfaces.

5. Industrial-grade design, wall-mounted installation

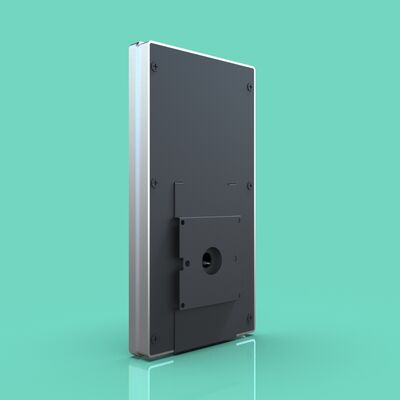

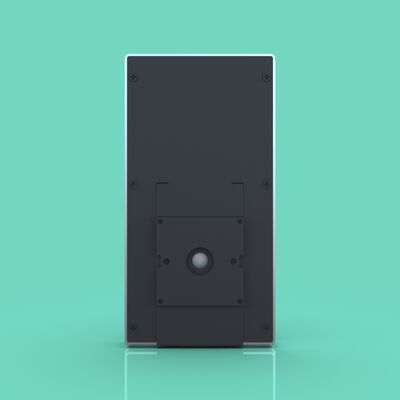

Wall-mounted installation: Standard metal hanging plate, supports wall-mounted installation, compatible with standard 86 bottom box

Wide temperature range operation: Working temperature range is -30℃~60℃, suitable for cold and hot environments

IP protection level: Some models can reach IP65/IP66 dust-proof and waterproof level, suitable for indoor and semi-outdoor scenarios.

Applicable scenarios
Enterprise/Office Building: Employee attendance check-in, access control

Smart Park/Factory: Personnel passage control, attendance statistics

Government Institution/Financial Outlet: High-security identity verification

Smart Campus/Community: Campus entrances, unit access control
