| Model Number: | JP185A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

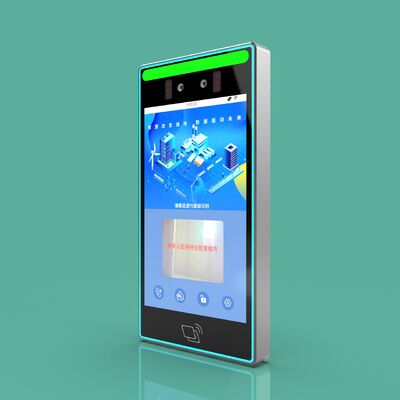

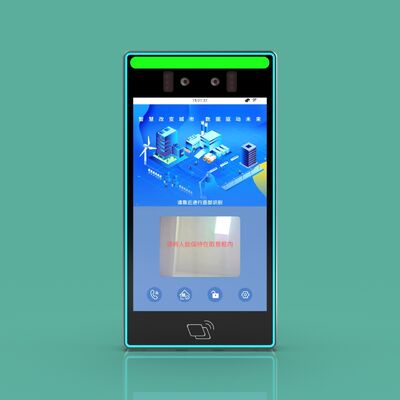

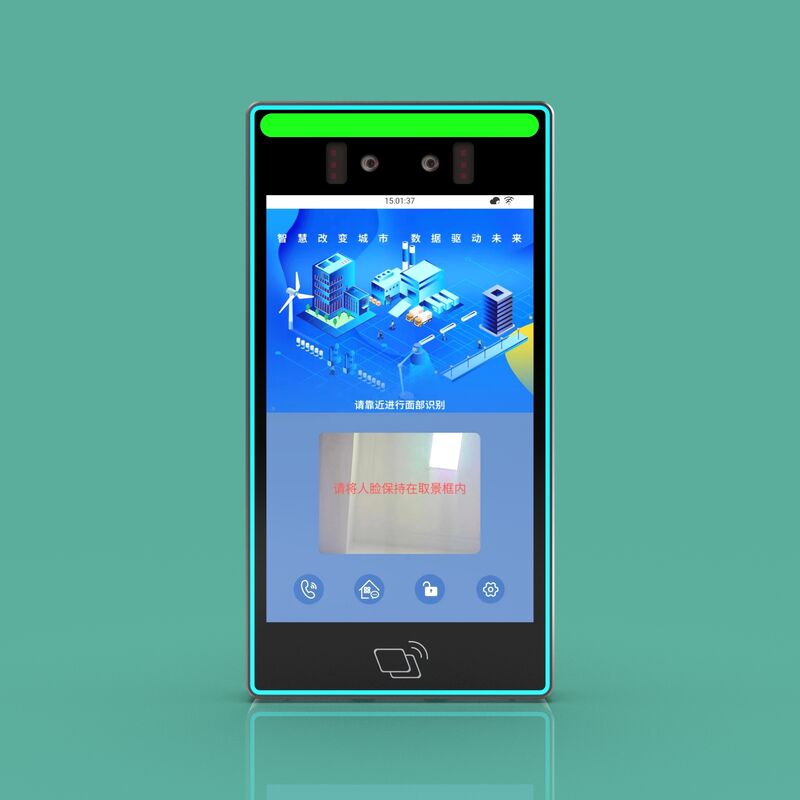

The 8-inch facial recognition all-in-one machine is an intelligent terminal device that integrates advanced facial recognition technology. It is mainly used for efficient and accurate identity verification and information management. With its high-speed recognition speed, high security, precise recognition accuracy and fast response capability, this device is widely applied in various scenarios, including office buildings, residential communities, schools, commercial areas, etc.
Technical Features:
1. High-definition camera: Equipped with a 2-megapixel wide dynamic dual-camera, supporting multi-modal biometric recognition and wide dynamic live body detection, achieving precise and rapid face recognition.
2. Large-capacity face database: Supports 50,000 face storage, meeting the needs of large-scale venues.
3. Industrial-grade motherboard: Uses the independently developed industrial-grade Android RK3568 chip board, ensuring stable service 24/7.
4. Multi-touch control: 8-inch LED color screen supports ten-point touch control, providing a smooth interaction experience.
5. Dust-proof and water-resistant design: Industrial-level dust-proof and water-resistant, adaptable to various environments.
Application advantages:
1. Efficient and fast: Utilizing advanced face recognition algorithms, achieving rapid passage and enhancing work efficiency.
2. High security: Biometric technology provides a higher level of security protection, avoiding risks of password and fingerprint leakage.
3. Contactless operation: Users do not need to directly contact the device, improving the convenience and hygiene safety of use.
Application scenarios:
Intelligent office: Realizing functions such as self-check-in, attendance checking, and access control, improving office efficiency.
Smart security: Quickly identifying suspicious individuals in crowded places such as airports and stations, enhancing public safety.
Unmanned retail: Providing payment verification and passenger flow analysis for the unmanned retail industry, optimizing shopping experience.
| 8-Inch IC Card Face Recognition Access Control All-in-One Machine Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 8 inches | |
| Screen Resolution | 800*1280 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Card Reader | Optional IC/ID/NFC/ID card reader, reading time <1S, card reading distance: 5-30MM | |
| Three-Color Indicator Light | Red, white, green | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 1 USB/OTG, 1 RJ45 standard interface, 1 relay output, 1 DC power supply, 1 Wiegand, 1 232/485 | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Blue + Gray | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |

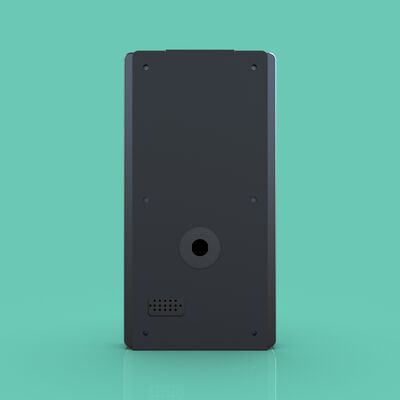

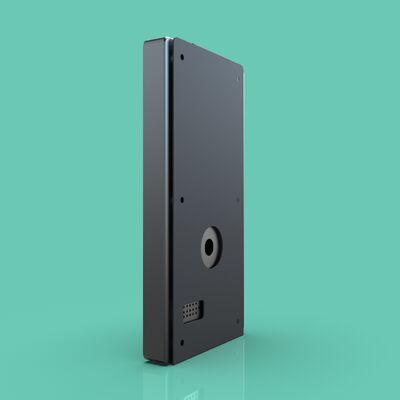

| Installation | Wall-Mounted | |
|
| Model Number: | JP185A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 8 inches |
| Payment Terms: | T/T |
Product Overview:
The 8-inch facial recognition all-in-one machine is an intelligent terminal device that integrates advanced facial recognition technology. It is mainly used for efficient and accurate identity verification and information management. With its high-speed recognition speed, high security, precise recognition accuracy and fast response capability, this device is widely applied in various scenarios, including office buildings, residential communities, schools, commercial areas, etc.
Technical Features:
1. High-definition camera: Equipped with a 2-megapixel wide dynamic dual-camera, supporting multi-modal biometric recognition and wide dynamic live body detection, achieving precise and rapid face recognition.
2. Large-capacity face database: Supports 50,000 face storage, meeting the needs of large-scale venues.
3. Industrial-grade motherboard: Uses the independently developed industrial-grade Android RK3568 chip board, ensuring stable service 24/7.
4. Multi-touch control: 8-inch LED color screen supports ten-point touch control, providing a smooth interaction experience.
5. Dust-proof and water-resistant design: Industrial-level dust-proof and water-resistant, adaptable to various environments.
Application advantages:
1. Efficient and fast: Utilizing advanced face recognition algorithms, achieving rapid passage and enhancing work efficiency.
2. High security: Biometric technology provides a higher level of security protection, avoiding risks of password and fingerprint leakage.
3. Contactless operation: Users do not need to directly contact the device, improving the convenience and hygiene safety of use.
Application scenarios:
Intelligent office: Realizing functions such as self-check-in, attendance checking, and access control, improving office efficiency.
Smart security: Quickly identifying suspicious individuals in crowded places such as airports and stations, enhancing public safety.
Unmanned retail: Providing payment verification and passenger flow analysis for the unmanned retail industry, optimizing shopping experience.
| 8-Inch IC Card Face Recognition Access Control All-in-One Machine Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 8 inches | |
| Screen Resolution | 800*1280 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 all year round | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| Camera | Binocular: visible light + infrared light, 2 million pixels, ultra-wide dynamic range, support for liveness detection, anti-backlight and strong light, selectable shooting focal length | |
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Card Reader | Optional IC/ID/NFC/ID card reader, reading time <1S, card reading distance: 5-30MM | |
| Three-Color Indicator Light | Red, white, green | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 1 USB/OTG, 1 RJ45 standard interface, 1 relay output, 1 DC power supply, 1 Wiegand, 1 232/485 | |
| Face Algorithm |
Dynamic face detection and tracking based on video stream, 1:N recognition algorithm; Dynamic dual-camera anti-counterfeiting completely solves the problem of photo and video fraud on various media; Supports 50,000 face photo libraries and 1 million recognition records; When the face database is 50,000, the false recognition rate is 0.01% and the pass rate is 97%; |
|
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Blue + Gray | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
