| Brand Name: | Shi Zun |
| Model Number: | JP172A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Product Overview:

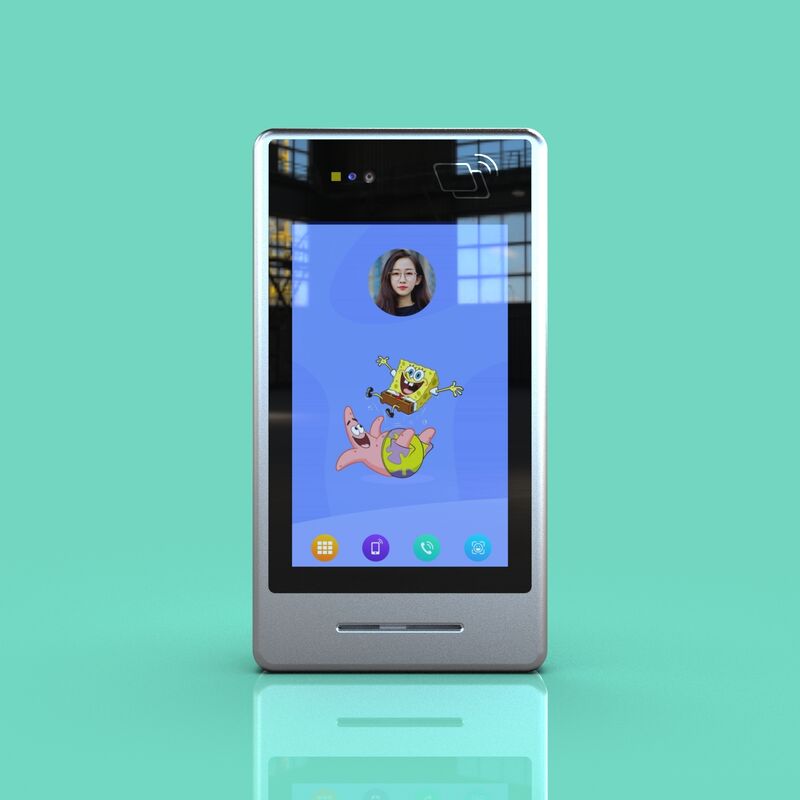

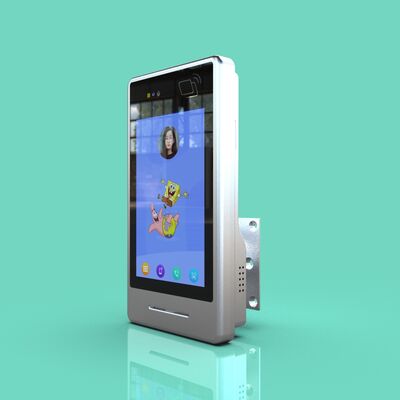

This product is a 7-inch touchscreen access control machine that integrates QR code scanning, contact-based card swiping, and non-contact RFID sensing. It combines traditional access cards with emerging QR code technology, catering to both cardholders' card-swiping habits and providing convenient QR code scanning for visitors. It supports wall-mounted installation and is an ideal choice for smart offices, parks, communities, and government institutions for entrance management.
Core functions and highlights:
1. Three-way access methods, covering all scenarios
The device supports three core identification methods, flexibly adapting to different user groups:
QR code scanning (non-contact): Equipped with a high-speed QR code scanning module, allowing users to present dynamic QR codes through mobile apps or mini-programs for passage. The response time can reach 0.3 seconds. It also supports managers generating temporary visitor QR codes through the cloud platform and setting validity periods and pass counts, enabling visitors to pass through without registration, significantly simplifying the visitor management process. Some models support various QR code formats such as PDF417, Data Matrix, and Aztec.
Non-contact RFID (non-contact): Equipped with an RFID card reading module, supporting 13.56MHz IC cards (Mifare), ID cards (125kHz), NFC mobile cards, CPU cards, and second-generation ID card serial numbers, with a card-swiping distance typically ranging from 2 to 8 cm. Some high-end models can also support multiple frequency bands of RFID cards through optional ELATEC modules (125kHz, 134.2kHz, and 13.56MHz).
Contact-based card swiping (contact-based): Some models are equipped with a contact IC card slot, supporting ISO 7816-compliant contact CPU cards, suitable for scenarios with higher security and standardization requirements.
2. 7-inch high-definition vertical screen, intuitive operation interface
Equipped with a 7-inch IPS touch screen, with a resolution of 600×1024 or 1024×600, featuring a vertical design, it has a large display area and clear interaction. The device usually supports advertising mode, allowing the display of enterprise promotional images or videos during standby, maximizing the value of the device.
3. Flexible verification modes and high security
Supports single verification (QR code/scanner/password) and combination verification (such as QR code + scanner), meeting the needs of different security levels. The device also has the following security features:
Anti-copy mechanism: Supports M1 card sector encryption, effectively preventing card duplication
Live detection (when equipped with a camera in some models): Can prevent photo, video, and other forgery attacks
Multiple alarms: Supports tamper alarm, door timeout alarm, illegal card exceeding limit alarm, etc.
Applicable scenarios
Enterprise/Office Building: Dual access with employee card and visitor QR code
Park/Community: Upgrade of access control card for compatibility, convenient passage for visitors through QR code scanning
Government/Financial Outlets: Combined verification scenarios with high security requirements
Homestays/Shared Spaces: Temporary QR code authorization, no need to issue cards
| 7-Inch QR Code Scanning Access Control Terminal Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 7 inches | |
| Screen Resolution | 600*1024 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 throughout the year | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| QR Code Image Sensor | CMOS | |
| QR Code Resolution | 1280*720 | |
| QR Code Reading System | 2D: PDF417, QR Code, DataMatrix, etc. | |
| 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. | ||
| QR Code Recognition Accuracy | ≥5mil | |
| Contact and Contactless Card Readers Details | Supported protocols: ISO14443A, ISO7816 | |
| Supported card types:
NxPS50/S70/FM1108/Ultralight/Ntag card/DesFire card CPU card/FM1208 card; AT24C01A/24C02/24C04/24C08/24C16/AT24C64, etc. SLE4442/5542/SLE4418/4428/SLE4404/SLE4406, etc. Commonly used logic encryption IC cards and T=0, 1 protocol CPU cards |
||
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Card Reader | Optional IC/ID/NFC/ID card reader, reading time <1S, card reading distance: 5-30MM | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Lithium Battery | Optional | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 1 USB/OTG, 1 RJ45 standard interface, 1 relay output, 1 DC power supply, 1 Wiegand, 1 232/485 | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |

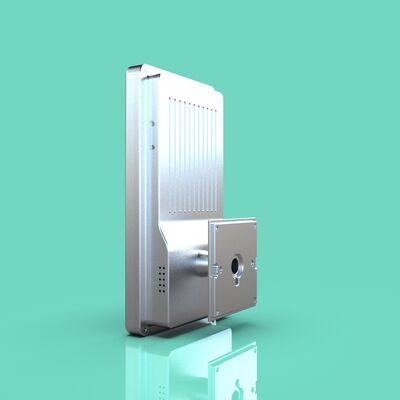

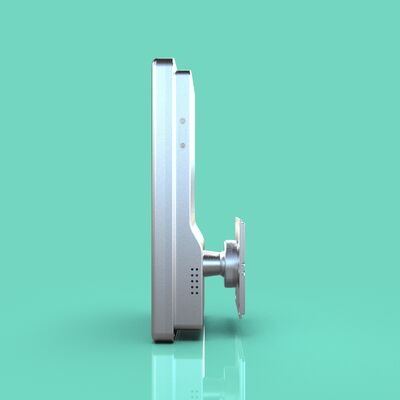

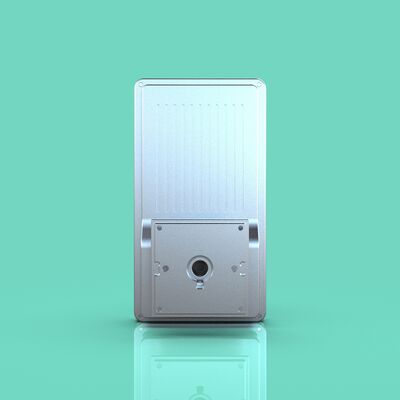

| Installation | Wall-Mounted | |
|
| Brand Name: | Shi Zun |
| Model Number: | JP172A |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 7 inch |
| Payment Terms: | T/T |
Product Overview:
This product is a 7-inch touchscreen access control machine that integrates QR code scanning, contact-based card swiping, and non-contact RFID sensing. It combines traditional access cards with emerging QR code technology, catering to both cardholders' card-swiping habits and providing convenient QR code scanning for visitors. It supports wall-mounted installation and is an ideal choice for smart offices, parks, communities, and government institutions for entrance management.
Core functions and highlights:
1. Three-way access methods, covering all scenarios
The device supports three core identification methods, flexibly adapting to different user groups:
QR code scanning (non-contact): Equipped with a high-speed QR code scanning module, allowing users to present dynamic QR codes through mobile apps or mini-programs for passage. The response time can reach 0.3 seconds. It also supports managers generating temporary visitor QR codes through the cloud platform and setting validity periods and pass counts, enabling visitors to pass through without registration, significantly simplifying the visitor management process. Some models support various QR code formats such as PDF417, Data Matrix, and Aztec.
Non-contact RFID (non-contact): Equipped with an RFID card reading module, supporting 13.56MHz IC cards (Mifare), ID cards (125kHz), NFC mobile cards, CPU cards, and second-generation ID card serial numbers, with a card-swiping distance typically ranging from 2 to 8 cm. Some high-end models can also support multiple frequency bands of RFID cards through optional ELATEC modules (125kHz, 134.2kHz, and 13.56MHz).
Contact-based card swiping (contact-based): Some models are equipped with a contact IC card slot, supporting ISO 7816-compliant contact CPU cards, suitable for scenarios with higher security and standardization requirements.
2. 7-inch high-definition vertical screen, intuitive operation interface
Equipped with a 7-inch IPS touch screen, with a resolution of 600×1024 or 1024×600, featuring a vertical design, it has a large display area and clear interaction. The device usually supports advertising mode, allowing the display of enterprise promotional images or videos during standby, maximizing the value of the device.
3. Flexible verification modes and high security
Supports single verification (QR code/scanner/password) and combination verification (such as QR code + scanner), meeting the needs of different security levels. The device also has the following security features:
Anti-copy mechanism: Supports M1 card sector encryption, effectively preventing card duplication
Live detection (when equipped with a camera in some models): Can prevent photo, video, and other forgery attacks
Multiple alarms: Supports tamper alarm, door timeout alarm, illegal card exceeding limit alarm, etc.
Applicable scenarios
Enterprise/Office Building: Dual access with employee card and visitor QR code
Park/Community: Upgrade of access control card for compatibility, convenient passage for visitors through QR code scanning
Government/Financial Outlets: Combined verification scenarios with high security requirements
Homestays/Shared Spaces: Temporary QR code authorization, no need to issue cards
| 7-Inch QR Code Scanning Access Control Terminal Parameters | ||
|
Basic Parameters |
Operating System | Android 11 system, also supports Ubuntu20.04, Debian10, Linux, Buildroot and Hongmeng system |
| Performance | RK3568, a quad-core Cortex-A55 architecture processor with a main frequency of up to 2.0MHz, a built-in convolutional neural network accelerator NPU, and supports 1T computing power | |
| Configuration | 2GB RAM + 16GB storage memory, LPDDR4 optional 4GB/8GB, EMMC supports up to 128GB | |
| LCD Screen Size | 7 inches | |
| Screen Resolution | 600*1024 | |
| Viewing Angle | IPS full viewing angle | |
| Brightness | 500cd/m², stable performance, service life of up to more than 60,000 hours, able to work 24/7 throughout the year | |
| Touchscreen | 10-point G+G capacitive touch screen, any point can withstand more than 50 million touches | |
| QR Code Image Sensor | CMOS | |
| QR Code Resolution | 1280*720 | |
| QR Code Reading System | 2D: PDF417, QR Code, DataMatrix, etc. | |
| 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. | ||
| QR Code Recognition Accuracy | ≥5mil | |
| Contact and Contactless Card Readers Details | Supported protocols: ISO14443A, ISO7816 | |
| Supported card types:
NxPS50/S70/FM1108/Ultralight/Ntag card/DesFire card CPU card/FM1208 card; AT24C01A/24C02/24C04/24C08/24C16/AT24C64, etc. SLE4442/5542/SLE4418/4428/SLE4404/SLE4406, etc. Commonly used logic encryption IC cards and T=0, 1 protocol CPU cards |
||
| Speaker | Built-in 8Ω/3W | |
| WIFI | High-performance WIFI, supports 802.11B/G/N | |
| Bluetooth | High-performance Bluetooth, supporting BT V5.2 | |
| Ethernet | 1 10/100/1000Mbps adaptive Ethernet | |
| Card Reader | Optional IC/ID/NFC/ID card reader, reading time <1S, card reading distance: 5-30MM | |
| Microphone | Optional | |
| 4G | Optional | |
| PoE | Optional | |
| Lithium Battery | Optional | |
| Working Parameters | Voltage 12V; Current 3A; Operating temperature-25℃～+75℃; Humidity 5%~93%RH non-condensing | |
| External Interfaces | 1 USB/OTG, 1 RJ45 standard interface, 1 relay output, 1 DC power supply, 1 Wiegand, 1 232/485 | |
|
Materials |
Surface Material | Mohs Level 7 Tempered glass explosion-proof and collision-proof, anti-scratch |
| Body Craftsmanship | CNC-machined aluminum alloy with anodized finish | |
| Color | Black + Silver | |
| Standard Features | Turnstile-Electromagnetic Lock Linkage | Connect to the gate barrier and electromagnetic lock, and set it up to open the door after a successful verification |
| Network Upload | Cooperating with the server software, it can realize the upload and summary of comparison information of multiple terminals | |
| Installation | Wall-Mounted | |
