| Model Number: | 015 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T |
Introduction:

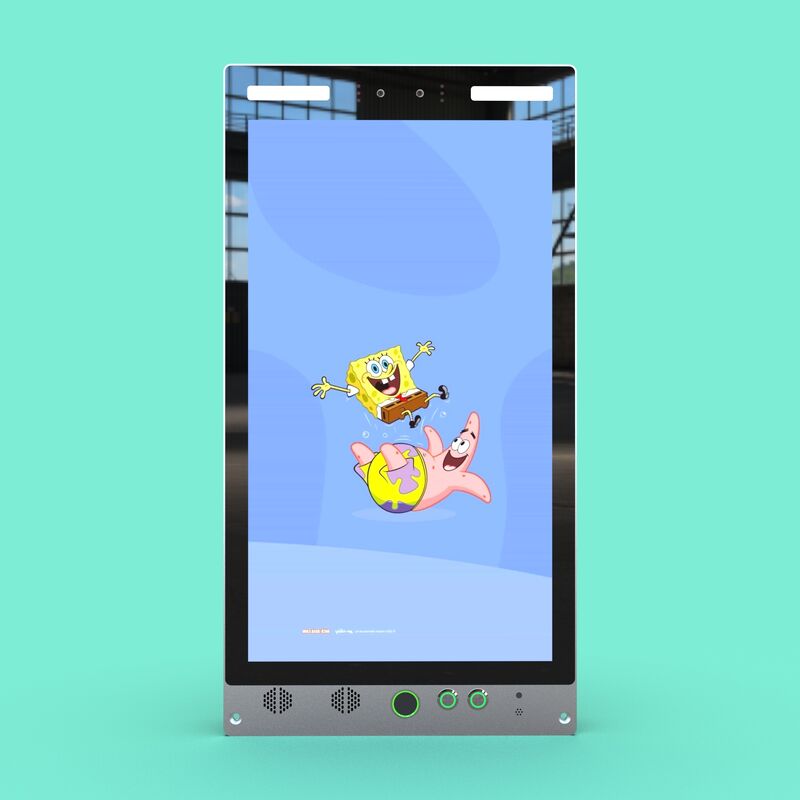

1. 15.6-inch full HD vertical screen, comprehensive upgrade in display and interaction
Huge screen visual experience: Utilizing a 15.6-inch LCD vertical touch screen with a 9:16 aspect ratio and a resolution of 1080*1920 full HD, it provides real-time tracking of the face frame and a clearly visible recognition process.
Flexible installation options: Suitable for various wall scenarios such as lobbies, elevator lobbies, and corridors, without occupying floor space, and maintaining a neat and aesthetic appearance.
2. Dual biometric recognition of face and fingerprint, with no security blind spots
This device supports multiple verification methods such as face and fingerprint, and can be used individually or in combination for authentication, flexibly adapting to different security level requirements:
Face recognition: Equipped with a 200,000-pixel wide dynamic dual-camera, it supports photo and video anti-fraud, uses a starlight-level image sensor, and can accurately identify in low-light or no-light environments without supplementary lighting, with an identification range of 0.3m - 3m. Relying on deep learning algorithms, the identification speed is ≤ 0.3 seconds per person, and the local face database capacity is up to 50,000 people.
Fingerprint recognition: Equipped with a high-precision fingerprint module, providing an additional verification channel for fingerprint-habituated users or high-security areas, supporting face + fingerprint combination authentication.
3. Rich advanced access control functions and open integration
Multiple authentication methods: Supports combinations of card swiping, face, and password;
Alarm and security management: Supports alarm for forced entry, external force opening of the door, coercion card/coercion code alarm, blacklist alarm, etc., and uploads events.
Flexible expansion: Supports RS485 for external card reader or access control host, supports Weigang interface for external access control host or Weigang reader (W26/W34), supports RTSP video stream remote preview.
Disconnection continuation: Events generated when the device is offline will automatically be re-uploaded after reconnection, ensuring data does not get lost.
| 15.6-inch High-End Residential Fingerprint & Facial Recognition Access Control Specifications | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 MHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 15.6 inches | |
| screen resolution | 1080*1920 | |
| Viewing angle | IPS Full-View | |
| luminance | 300 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each point capable of withstanding over 50 million touches. | |
| camera | Dual-camera setup featuring visible light and infrared sensors with 2 million pixels, ultra-wide dynamic range, live detection support, resistance to backlighting and strong light, and selectable focal lengths. | |
| Fingerprint Capture and Recognition Module | Measurement method: Capacitive array semiconductor sensor, planar pressure sensing | |
| Storage capacity: 500 items | ||
| Security Level: Level 5 (from lowest to highest: 1, 2, 3, 4, 5) | ||
| False acceptance rate (FAR): <0.001% (Security Level: 3) | ||
| False Rejection Rate (FRR): <0.1% (Security Level: 3) | ||
| Sample window size: 20.4 mm × 33.4 mm | ||
| Image size: 192*192 pixels (effective size: 192*192 pixels) | ||
| Image pixel density: 508 DPI | ||
| Matching method: comparison-based (1:1); search-based (1:N) (when 500 records have completed registration) – <1 second | ||
| Does it support self-learning? Yes | ||
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports BT V5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| microphone | Optional | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH; Non-condensable | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm | Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Manufacturing Process | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
|
|
| Model Number: | 015 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | 15.6 inches |
| Payment Terms: | T/T |
Introduction:
1. 15.6-inch full HD vertical screen, comprehensive upgrade in display and interaction
Huge screen visual experience: Utilizing a 15.6-inch LCD vertical touch screen with a 9:16 aspect ratio and a resolution of 1080*1920 full HD, it provides real-time tracking of the face frame and a clearly visible recognition process.
Flexible installation options: Suitable for various wall scenarios such as lobbies, elevator lobbies, and corridors, without occupying floor space, and maintaining a neat and aesthetic appearance.
2. Dual biometric recognition of face and fingerprint, with no security blind spots
This device supports multiple verification methods such as face and fingerprint, and can be used individually or in combination for authentication, flexibly adapting to different security level requirements:
Face recognition: Equipped with a 200,000-pixel wide dynamic dual-camera, it supports photo and video anti-fraud, uses a starlight-level image sensor, and can accurately identify in low-light or no-light environments without supplementary lighting, with an identification range of 0.3m - 3m. Relying on deep learning algorithms, the identification speed is ≤ 0.3 seconds per person, and the local face database capacity is up to 50,000 people.
Fingerprint recognition: Equipped with a high-precision fingerprint module, providing an additional verification channel for fingerprint-habituated users or high-security areas, supporting face + fingerprint combination authentication.
3. Rich advanced access control functions and open integration
Multiple authentication methods: Supports combinations of card swiping, face, and password;
Alarm and security management: Supports alarm for forced entry, external force opening of the door, coercion card/coercion code alarm, blacklist alarm, etc., and uploads events.
Flexible expansion: Supports RS485 for external card reader or access control host, supports Weigang interface for external access control host or Weigang reader (W26/W34), supports RTSP video stream remote preview.
Disconnection continuation: Events generated when the device is offline will automatically be re-uploaded after reconnection, ensuring data does not get lost.
| 15.6-inch High-End Residential Fingerprint & Facial Recognition Access Control Specifications | ||
| essential parameter | operating system | Android 11 also supports Ubuntu 20.04, Debian 10, Linux, Buildroot, and HarmonyOS. |
| function | RK3568: a quad-core Cortex-A55 architecture processor with a clock speed of up to 2.0 MHz, featuring a built-in Convolutional Neural Network Accelerator (NPU), and supporting 1 T of computing power. | |
| configure | 2 GB of RAM + 16 GB of storage; LPDDR4 memory available in 4 GB/8 GB variants; EMMC support up to 128 GB. | |
| LCD screen size | 15.6 inches | |
| screen resolution | 1080*1920 | |
| Viewing angle | IPS Full-View | |
| luminance | 300 cd/m², ultra-long service life, stable performance, with a service life exceeding 60,000 hours, enabling uninterrupted 24/7 operation throughout the year. | |
| touch screen | 10-point G+G capacitive touch, with each point capable of withstanding over 50 million touches. | |
| camera | Dual-camera setup featuring visible light and infrared sensors with 2 million pixels, ultra-wide dynamic range, live detection support, resistance to backlighting and strong light, and selectable focal lengths. | |
| Fingerprint Capture and Recognition Module | Measurement method: Capacitive array semiconductor sensor, planar pressure sensing | |
| Storage capacity: 500 items | ||
| Security Level: Level 5 (from lowest to highest: 1, 2, 3, 4, 5) | ||
| False acceptance rate (FAR): <0.001% (Security Level: 3) | ||
| False Rejection Rate (FRR): <0.1% (Security Level: 3) | ||
| Sample window size: 20.4 mm × 33.4 mm | ||
| Image size: 192*192 pixels (effective size: 192*192 pixels) | ||
| Image pixel density: 508 DPI | ||
| Matching method: comparison-based (1:1); search-based (1:N) (when 500 records have completed registration) – <1 second | ||
| Does it support self-learning? Yes | ||
| card reader | Optional IC/ID/NFC/ID card reader; read time <1s; card reading range: 5–30 mm | |
| Wi-Fi | High-performance Wi-Fi, supports 802.11b/g/n | |
| PDA | High-performance Bluetooth, supports BT V5.2 | |
| Ethernet | Route 1: 10/100/1000 Mbps adaptive Ethernet | |
| microphone | Optional | |
| 4G | Optional | |
| Speaker | Built-in 8Ω/3W*2 | |
| operational parameter | Voltage: 12 V; Current: 3 A; Operating temperature: –25 °C to +75 °C; Relative humidity: 5%–93% RH; Non-condensable | |
| outer joint | 2 USB ports, 1 RJ45 port, 1 DC port, 1 headphone jack, 1 TF card and SIM card slot, 1 HDMI port, and support for external 485/232 communication interfaces and relays. | |
| Face recognition algorithm | Dynamic face detection and tracking based on video streams; 1:N recognition algorithm; | |
| material quality | Surface material | Mo-type Grade 7 tempered glass: explosion-proof, impact-resistant, and scratch-resistant |
| Manufacturing Process | Aluminum alloy CNC precision-engraved anodized frame + rear housing powder-coated sheet metal process | |
| pigment | Black + Silver | |
| Standard Features | Turnstile with electromagnetic lock linkage | Integrate the access gate and the electromagnetic lock to open the gate upon successful facial recognition. |
| Upload via network | In conjunction with the server-side software, it enables the uploading and aggregation of comparison data from multiple terminals. | |
| way to install | hanging | |
